360° Surveillance Ground Surveillance Radar with 5km Vehicle Detection and All-Weather Adaptability

1
MOQ
Please consult a sales engineer
Price
360° Surveillance Ground Surveillance Radar with 5km Vehicle Detection and All-Weather Adaptability
Features Gallery Product Description Chat Now
Features
Specifications
Target Detection Speed: 0.2m/s - 30m/s
Net Weight: ≤50kg
Power Supply: AC220V/160W
Dimensions: 580mm × 580mm × 820mm
Working Temperature: -40°C To +60°C
Distance Accuracy: Distance Accuracy
Highlight:

360° Surveillance Ground Surveillance Radar

,

5km Vehicle Detection Security Surveillance Radar

,

All-Weather Adaptability Phased Array Radar
Basic Infomation
Place of Origin: China
Brand Name: UND
Model Number: U 215-4C
Payment & Shipping Terms
Delivery Time: 5-8 days
Payment Terms: T/T
Supply Ability: 100
Product Description
Real-Time Monitoring Ground Surveillance Radar for Moving Track Display PTZ Camera

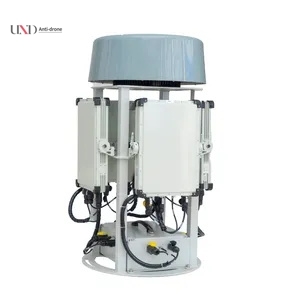

Ground Surveillance Radar U 215-4C / C Band

The U 215-4C is an advanced security surveillance radar system featuring phased array technology with stable performance, designed for 360° surveillance and detection of ground moving targets. This system integrates four U 215-1C radars working in unison, providing comprehensive coverage and enhanced detection capabilities.

Key Features
  • High data rate and superior positioning accuracy
  • Multi-Input Multi-Output (MIMO) system architecture
  • All-weather operational capability
Applications
Border security, oil field protection, prison monitoring, and other critical area surveillance applications
Technical Specifications
Parameter Specification
Working Mode Phased Array + Pulse Doppler
Working Frequency C Band (5.5-5.8GHz)
Detection Range 2.5km (Pedestrians)
5km (Vehicles)
Minimum Detection Range ≤100m
Azimuth Coverage 4-panel: 360°
Elevation Coverage 9°
Distance Accuracy ≤5m
Azimuth Accuracy ≤1.0°
Target Detection Speed 0.2m/s - 30m/s
Speed Precision ≤0.2m/s
Data Rate ≤1.5s
Net Weight ≤50kg
Power Supply AC220V/160W
Interface Ethernet (UDP Protocol)
Dimensions 580mm × 580mm × 820mm
Working Temperature -40°C to +60°C
Working Environment Rain-proof, Dust Prevention, Sand-prevention, Moisture-proof, Mould-proof, and Salt-proof
