C Band (5.5-5.8GHz) Ground Surveillance Radar with 360° Surveillance and All-Weather Adaptability for Security

1
MOQ
Please consult a sales engineer
Price
C Band (5.5-5.8GHz) Ground Surveillance Radar with 360° Surveillance and All-Weather Adaptability for Security
Features Gallery Product Description Chat Now
Features
Specifications
Azimuth Coverage: 360° (4-panel Configuration)
Target Detection Speed: 0.2m/s - 30m/s
Net Weight: ≤50kg
Power Supply: AC220V/160W
Dimensions: 580mm × 580mm × 820mm
Operating Temperature: -40°C To +60°C
Highlight:

C Band Ground Surveillance Radar

,

360° Surveillance Security Surveillance Radar

,

All-Weather Adaptability Phased Array Radar
Basic Infomation
Place of Origin: China
Brand Name: UND
Model Number: U 215-4C
Payment & Shipping Terms
Delivery Time: 5-8 days
Payment Terms: T/T
Supply Ability: 100
Product Description
Ground Surveillance Radar Withstand Difficult Environmental Conditions with Fully Ruggedized
Product Overview

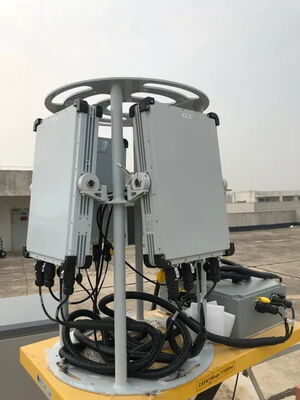

The U 215-4C is a C-band security surveillance radar featuring advanced phased array technology for reliable 360° ground moving target detection. This system integrates four U 215-1C radar units working in unison to provide comprehensive surveillance coverage with exceptional stability and performance.
Key Features
  • High data rate and superior positioning accuracy
  • Multi-Input Multi-Output (MIMO) system architecture
  • All-weather operational capability
  • Advanced phased array pulse Doppler technology
Applications
Ideal for security surveillance in border areas, oil fields, prisons, and other critical infrastructure locations requiring reliable perimeter protection.
Technical Specifications
Parameter Specification
Working Mode Phased Array + Pulse Doppler
Working Frequency C Band (5.5-5.8GHz)
Detection Range 2.5km (Pedestrians)
5km (Vehicles)
Minimum Detection Range ≤100m
Azimuth Coverage 360° (4-panel configuration)
Elevation Coverage 9°
Distance Accuracy ≤5m
Azimuth Accuracy ≤1.0°
Target Detection Speed 0.2m/s - 30m/s
Speed Precision ≤0.2m/s
Data Rate ≤1.5s
Net Weight ≤50kg
Power Supply AC220V/160W
Interface Ethernet (UDP protocol)
Dimensions 580mm * 580mm * 820mm
Operating Temperature -40°C to +60°C
Environmental Protection Rain-proof, Dust Prevention, Sand-prevention, Moisture-proof, Mould-proof and Salt-proof
