24GHz MMIC Technology Millimeter Wave Radar with 500m Pedestrian Detection and 1000m Vessel Detection for Ground Surveillance

1
MOQ
Please consult a sales engineer
Price
24GHz MMIC Technology Millimeter Wave Radar with 500m Pedestrian Detection and 1000m Vessel Detection for Ground Surveillance
Features Gallery Product Description Chat Now
Features
Specifications
Range Measurement: 5m~500m (Pedestrians); 5m~1000m (Vessels)
Frequency Range: 24GHz~24.25GHz
Data Rate: 85ms
Voltage Range: 10V~16V DC
Weight: 980g
Dimensions (H×W×D): 190 Mm×190 Mm×40mm
Highlight:

24GHz MMIC Technology Millimeter Wave Radar

,

500m Pedestrian Detection Ground Surveillance Radar

,

1000m Vessel Detection Security Radar
Basic Infomation
Place of Origin: China
Brand Name: UND
Model Number: U-STS1-12
Payment & Shipping Terms
Delivery Time: 5-8 days
Payment Terms: T/T
Supply Ability: 100
Product Description
High Resolution Millimeter Wave Ground Surveillance Radar with Digital Signal Processing Technology

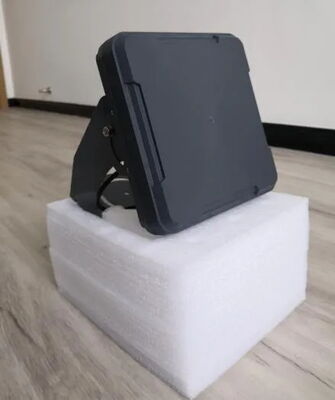

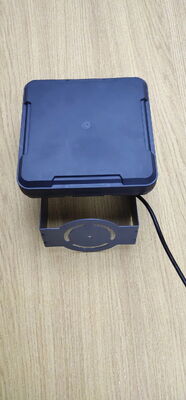

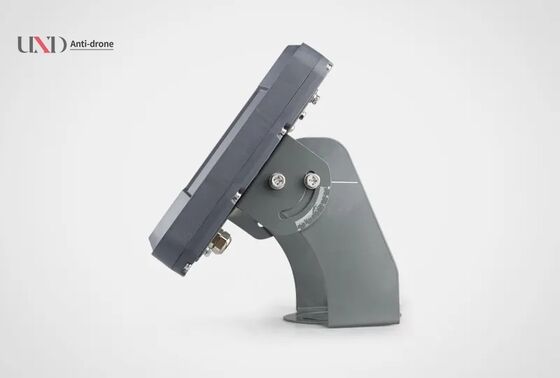

Millimeter Wave Radar--U-STS1-12
The U-STS1-12 security high-precision radar employs modern microwave technology and advanced digital signal processing to accurately locate moving objects within its coverage area. This system outputs detailed information including relative position, movement direction, and speed, providing early warning capabilities that significantly enhance prevention and emergency response effectiveness. It delivers all-weather, 24/7 security protection for critical facilities such as borders, airports, oil fields, mines, rivers, and lakes.
Key Features
  • Advanced 24 GHz MMIC technology for superior performance
  • Digital phased array radar utilizing DBF technology
  • Detection range: ≥500m for pedestrians and vehicles, ≥1000m for vessels
  • Observation angle: ≥100°
  • Reports target relative position, movement direction, and speed
  • Multi-target detection with individual motion trajectory tracking
  • Simple installation and upgrade process
  • Excellent environmental adaptability with immunity to light, dust, rain, and snow interference
Applications
The U-STS1-12 is ideally suited for protecting critical core areas. When suspicious individuals enter the protected zone, the system immediately detects and triggers alarms. With its extensive coverage area and precise positioning capabilities, it can integrate with camera systems to verify target identity and elevate security alert levels.
Technical Specifications
Parameter Specification
Frequency Range 24GHz~24.25GHz
Modulation Wave FMCW
Bandwidth 60MHz
Data Rate 85ms
Range Measurement 5m~500m (Pedestrians); 5m~1000m (Vessels)
Velocity Measurement -19m/s~+19m/s
Azimuth Angle Range -50°~+50°
Elevation Angle Range -7°~+7°
Range Accuracy ±1m
Velocity Accuracy ±0.07m/s
Angular Accuracy ±1°
Range Resolution 2.5m
Speed Resolution 0.07m/s
Angle Resolution 12°
Voltage Range 10V~16V DC
Current Range ≤800mA@12V DC
Temperature Range -40ºC~+70ºC
IP Grade IP67
Communication Port RJ45
Installation Height 2m~4m
Weight 980g
Dimensions (H*W*D) 190 mm*190 mm*40mm
