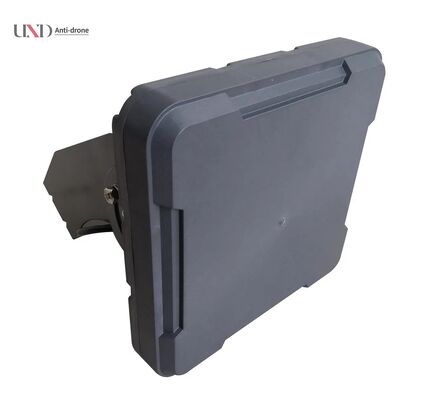

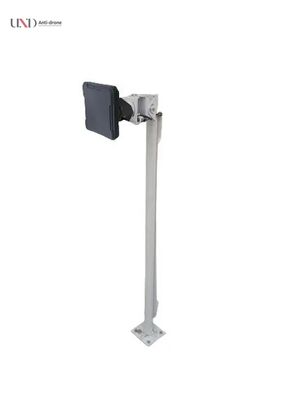

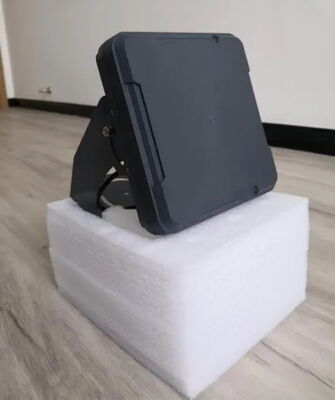

24GHz MMIC Technology Ground Surveillance Radar with 500m Pedestrian and 1000m Vessel Detection for Perimeter Security

1
MOQ
Please consult a sales engineer
Price
24GHz MMIC Technology Ground Surveillance Radar with 500m Pedestrian and 1000m Vessel Detection for Perimeter Security
Features Gallery Product Description Chat Now
Features
Specifications
Frequency Range: 24GHz~24.25GHz
Date Rate: 85ms
Velocity Measurement: -19m/s~+19m/s
Speed Resolution: 0.07m/s
Temperature Range: -40ºC~+70ºC
Weight: 980g
Highlight:

24GHz MMIC Technology Ground Surveillance Radar

,

500m Pedestrian Detection Perimeter Security Radar

,

1000m Vessel Detection Millimeter Wave Radar
Basic Infomation
Place of Origin: China
Brand Name: UND
Model Number: U-STS1-12
Payment & Shipping Terms
Delivery Time: 5-8 days
Payment Terms: T/T
Supply Ability: 100
Product Description
24GHz Perimeter Security Ground Surveillance Radar Sensor Solution
The U-STS1-12 millimeter wave radar employs advanced microwave technology and digital signal processing to deliver precise positioning of moving objects within coverage areas. This system outputs comprehensive data including relative position, movement direction, and speed information, providing early warning capabilities that significantly enhance emergency prevention and response effectiveness.
Key Features
  • Advanced 24 GHz MMIC technology for superior performance
  • Digital phased array radar utilizing DBF technology
  • Detection range: Pedestrians and vehicles ≥ 500m, vessels ≥ 1000m
  • Wide observation angle ≥ 100°
  • Comprehensive target reporting including position, direction, and speed
  • Multiple target detection with individual motion trajectory tracking
  • Simple installation and upgrade procedures
  • Excellent environmental adaptability, unaffected by light, dust, rain, or snow
Applications
The U-STS1-12 radar is ideally suited for protecting critical infrastructure areas including borders, airports, oil fields, mines, and waterways. When suspicious activity is detected within the protected zone, the system immediately monitors and triggers alarms. With its extensive coverage and precise localization capabilities, it can integrate with camera systems to verify target identification and elevate security alert levels.
Technical Specifications
Parameter Specification
Frequency Range 24GHz~24.25GHz
Modulation Wave FMCW
Bandwidth 60MHz
Date Rate 85ms
Range Measurement 5m~500m (Pedestrians)
5m~1000m (Vessels)
Velocity Measurement -19m/s~+19m/s
Azimuth Angle Range -50°~+50°
Elevation Angle Range -7°~+7°
Range Accuracy ±1m
Velocity Accuracy ±0.07m/s
Angular Accuracy ±1°
Range Resolution 2.5m
Speed Resolution 0.07m/s
Angle Resolution 12°
Voltage Range 10V~16V DC
Current Range ≤800mA@12V DC
Temperature Range -40ºC~+70ºC
IP Grade IP67
Communication Port RJ45
Installation Height 2m~4m
Weight 980g
Dimensions (H*W*D) 190 mm*190 mm*40mm
