24GHz MMIC Technology Intruder Radar Sensor with 500m Pedestrian Detection and 1000m Vessel Detection for Ground Surveillance

1
MOQ
Please consult a sales engineer
Price
24GHz MMIC Technology Intruder Radar Sensor with 500m Pedestrian Detection and 1000m Vessel Detection for Ground Surveillance
Features Gallery Product Description Chat Now
Features
Specifications
Data Rate: 85ms
Range Measurement: 5m~500m (Pedestrians) 5m~1000m (Vessels)
Range Resolution: 2.5m
Voltage Range: 10V~16V DC
Temperature Range: -40ºC~+70ºC
Weight: 980g
Highlight:

24GHz MMIC Technology Intruder Radar Sensor

,

500m Pedestrian Detection Ground Surveillance Radar

,

1000m Vessel Detection Millimeter Wave Radar
Basic Infomation
Place of Origin: China
Brand Name: UND
Model Number: U-STS1-12
Payment & Shipping Terms
Delivery Time: 5-8 days
Payment Terms: T/T
Supply Ability: 100
Product Description
100m 24GHz Intruder Radar Sensor for Ground Surveillance System, Farm Monitoring System

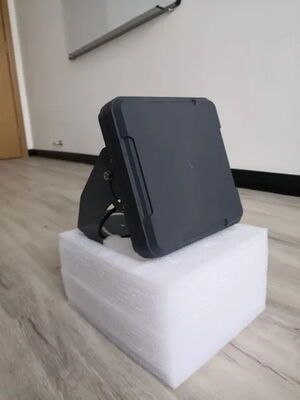

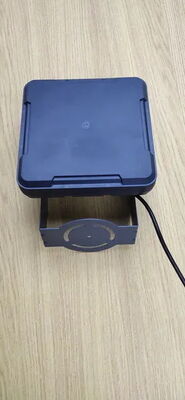

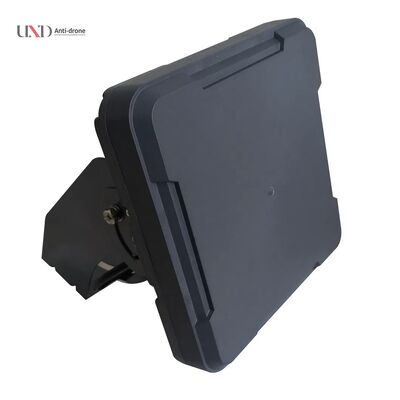

Millimeter Wave Radar - U-STS1-12

The U-STS1-12 security high-precision radar employs advanced microwave technology and digital signal processing to accurately locate moving objects within the coverage area. This system outputs relative position, movement direction, and speed data, providing early warning capabilities that significantly enhance prevention and emergency response for critical facilities including borders, airports, oil fields, mines, rivers, and lakes.

Key Features
  • 24 GHz MMIC technology with superior performance
  • Digital phased array radar based on DBF technology
  • Detection range: Pedestrians and vehicles ≥ 500m, vessels ≥ 1000m
  • Observation angle ≥ 100°
  • Reports relative position, movement direction, and speed
  • Multiple target detection with motion trajectory tracking
  • Easy installation and upgrade capabilities
  • Strong environmental adaptability, unaffected by light, dust, rain, or snow
Applications

The U-STS1-12 is ideal for protecting critical core areas. When suspicious individuals enter the protected zone, the system immediately detects and triggers alarms. With extensive coverage and precise positioning capabilities, it can integrate with camera systems to verify target identity and elevate security alert levels.

Technical Specifications
Parameter Specification
Frequency Range 24GHz~24.25GHz
Modulation Wave FMCW
Bandwidth 60MHz
Data Rate 85ms
Range Measurement 5m~500m (Pedestrians)
5m~1000m (Vessels)
Velocity Measurement -19m/s~+19m/s
Azimuth Angle Range -50°~+50°
Elevation Angle Range -7°~+7°
Range Accuracy ±1m
Velocity Accuracy ±0.07m/s
Angular Accuracy ±1°
Range Resolution 2.5m
Speed Resolution 0.07m/s
Angle Resolution 12°
Voltage Range 10V~16V DC
Current Range ≤800mA@12V DC
Temperature Range -40ºC~+70ºC
IP Grade IP67
Communication Port RJ45
Installation Height 2m~4m
Weight 980g
Dimensions (H*W*D) 190 mm*190 mm*40mm
24GHz MMIC Technology Intruder Radar Sensor with 500m Pedestrian Detection and 1000m Vessel Detection for Ground Surveillance 0
