24GHz MMIC Technology Ground Surveillance Radar with 500m Pedestrian and 1000m Vessel Detection for Perimeter Security

1
MOQ
Please consult a sales engineer
Price
24GHz MMIC Technology Ground Surveillance Radar with 500m Pedestrian and 1000m Vessel Detection for Perimeter Security
Features Gallery Product Description Chat Now
Features
Specifications
Range Measurement: 5m~500m (Pedestrians) 5m~1000m (Vessels)
Velocity Measurement: -19m/s~+19m/s
Velocity Accuracy: ±0.07m/s
Temperature Range: -40ºC~+70ºC
Installation Height: 2m~4m
Dimensions (H×W×D): 190 Mm×190 Mm×40mm
Highlight:

24GHz MMIC Technology Ground Surveillance Radar

,

500m Pedestrian Detection Perimeter Security Radar

,

1000m Vessel Detection Intruder Detection Radar
Basic Infomation
Place of Origin: China
Brand Name: UND
Model Number: U-STS1-12
Payment & Shipping Terms
Delivery Time: 5-8 days
Payment Terms: T/T
Supply Ability: 100
Product Description

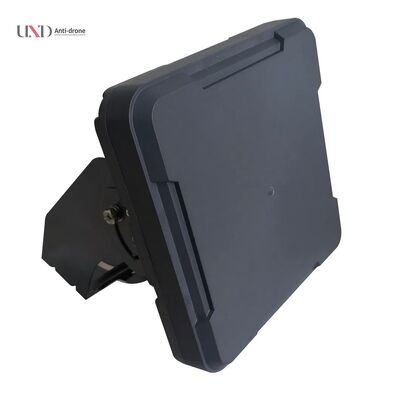

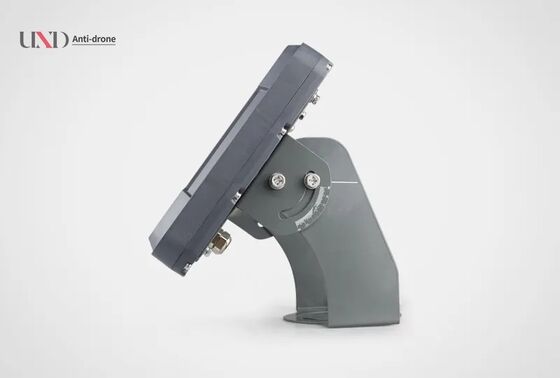

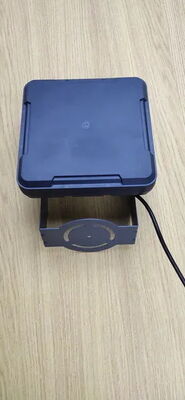

24GHz Intruder Ground Surveillance Radar Sensor
Advanced perimeter security radar for commercial and residential applications
Product Overview
The U-STS1-12 security high-precision radar employs modern microwave technology and digital signal processing to accurately locate moving objects within the coverage area. It outputs relative position, moving direction, and speed information, providing early warning capabilities that significantly enhance prevention and emergency response for critical facilities including borders, airports, oil fields, mines, and waterways.
Key Features
  • 24 GHz MMIC technology with superior performance
  • Digital phased array radar based on DBF technology
  • Detection range: Pedestrian and vehicle ≥ 500m, ship ≥ 1000m
  • Observation angle ≥ 100° with wide coverage
  • Reports relative position, moving direction, and speed
  • Multiple target detection with motion trajectory tracking
  • Easy installation and system upgrades
  • Strong environmental adaptability - unaffected by light, dust, rain, or snow
Applications
The U-STS1-12 is ideal for protecting key core areas. When suspicious individuals enter the protected zone, the system immediately monitors and triggers alarms. With extensive coverage and precise positioning capabilities, it can integrate with camera systems to verify target identity and elevate security alert levels.
Technical Specifications
Parameter Specification
Frequency Range 24GHz~24.25GHz
Modulation Wave FMCW
Bandwidth 60MHz
Data Rate 85ms
Range Measurement 5m~500m (Pedestrians)
5m~1000m (Vessels)
Velocity Measurement -19m/s~+19m/s
Azimuth Angle Range -50°~+50°
Elevation Angle Range -7°~+7°
Range Accuracy ±1m
Velocity Accuracy ±0.07m/s
Angular Accuracy ±1°
Range Resolution 2.5m
Speed Resolution 0.07m/s
Angle Resolution 12°
Voltage Range 10V~16V DC
Current Range ≤800mA@12V DC
Temperature Range -40ºC~+70ºC
IP Grade IP67
Communication Port RJ45
Installation Height 2m~4m
Weight 980g
Dimensions (H*W*D) 190 mm*190 mm*40mm
