Home /Products/Convoy Bomb Jammer/200MHz - 6000MHz DDS Jammer 1350W Military Jamming Systems With 500 - 1000 Meters Range

200MHz - 6000MHz DDS Jammer 1350W Military Jamming Systems With 500 - 1000 Meters Range

1
MOQ
Please consult a sales engineer
Price
200MHz - 6000MHz DDS Jammer 1350W Military Jamming Systems With 500 - 1000 Meters Range
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 1 Year
Humidity: 5% To 90%
Operating Temperature: -20ºC To +60ºC
Weight: 53 Kg (main Unit Only, Excluding Antenna & Accessories)
Dimensions: 626mm (L) * 49.2mm (W) * 350mm (H), Pelican 1620
Jamming Range: 500-1000 Meters @ -75dBm
Highlight:

200MHz DDS Jammer

,

6000MHz DDS Jammer

,

1350W Military Jamming Systems
Basic Infomation
Place of Origin: China
Brand Name: UND
Model Number: U-CBJ10
Payment & Shipping Terms
Delivery Time: 5-8 days
Payment Terms: T/T
Supply Ability: 100
Product Description

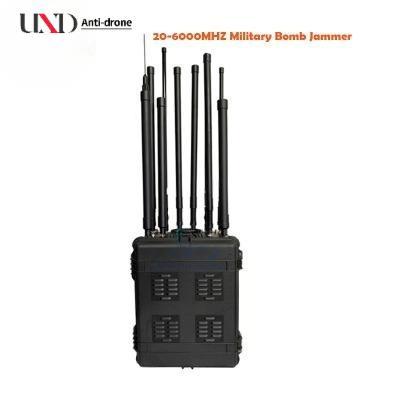

Military DDS Convoy Bomb Jammer with 20-6000MHz Frequency 1350W High Power and 500-1000 Meters Range
Product Overview
Advanced military-grade signal jamming system with 20 frequency bands covering 20-6000MHz range and 1350W total output power. Designed for convoy protection and bomb disruption applications.
Key Features
  • 20 frequency bands covering 20-6000MHz spectrum
  • 1350W high power output with 500-1000 meter radius range

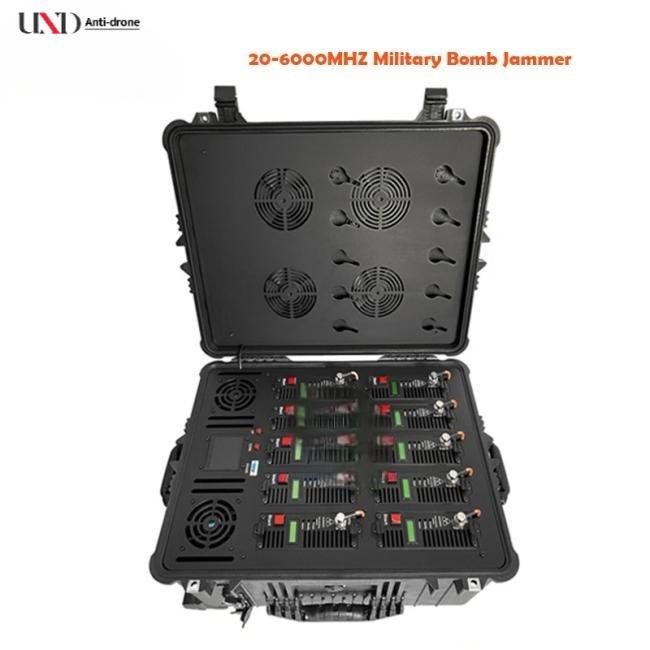

  • Stand-alone modular design with individual power control
  • RJ485 Protocol for centralized control of all 10 modules
  • Individual LED displays for frequency, status, and output power per module
  • Main LED display showing comprehensive system status
  • Computer-controlled frequency and power adjustment per band
  • VSWR over protection for each module
Technical Specifications
U-CBJ10-A (10 Bands) U-CBJ10-B (10 Bands)
20-100MHz: 100W (27MHz, 35MHz, 41MHz, 72MHz toys and HM Remote control) 2700-3000MHz: 50W
100-300MHz: 100W VHF Low-power transmitters 3000-3300MHz: 50W
300-500MHz: 100W (Walky-Talky, 315/433MHz Car Remote Control) 3300-3600MHz: 50W 5G LTE
500-800MHz: 100W 4G LTE 3600-4000MHz: 50W 5G LTE
800-1000MHz: 100W GSM 900 4000-4400MHz: 25W
1000-1400MHz: 100W GPS L2, L3, L4, L5 4400-4800MHz: 25W
1400-1800MHz: 100W GPS L1 4400-4800MHz: 25W
1800-2000MHz: 100W 4G LTE & WiMax 4800-5100MHz: 25W 4G LTE & WiMax
2000-2300MHz: 100W 3G UMTS 5100-5500MHz: 25W WiFi 11.a
2300-2700MHz: 100W 4G LTE, WiFi 11.g.b 5500-5900MHz: 25W WiFi 11.a
Total Power: 1000W Total Power: 350W
Total System Power: 1350W
Power Supply: AC adapter (AC220V-DC27V or 24V/45 Amp) or External Battery
Jamming Range: 500-1000 meters @ -75dBm
Dimensions: 626mm (L) * 49.2mm (W) * 350mm (H), Pelican 1620
Weight: 53 Kg (main unit only, excluding antenna & accessories)
Operating Temperature: -20ºC to +60ºC
Humidity: 5% to 90%
Warranty: 1 year
External Battery Specifications
Battery Type: B-50AH 27V/50AH LiFePo4 Battery
Case: Pelican Case 1440, 30kg Weight
Operating Time: Approximately 1 hour
Applications
This portable DDS manpack signal jammer is designed for easy transport and flexible deployment. Ideal for Public Security operations, airport airspace control, secure facilities, major sporting events, large public gatherings, and VIP security details.
Optional Accessories
Battery Box - RFE-8F35
Specification Details
Voltage 27V
Resistance 24MΩ
Size 430x245x340mm
Charging Current 0.2C
Discharging Current 1C
Weight 12Kg
Charger Input AC 100-230V
Charger Output DC 29V/5A
Tag:

Military Jamming Systems

Military Signal Jammers

Convoy Protection Jammer
