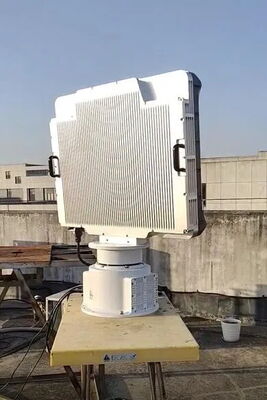

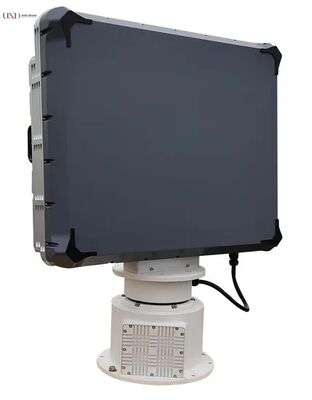

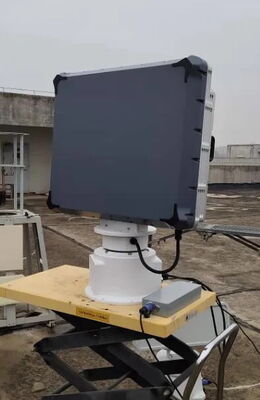

High-Resolution Fast-Scan Air Surveillance Radar with 5 km Detection Range S Band Frequency and 360° Azimuth Coverage

1
MOQ
Please consult a sales engineer
preço
High-Resolution Fast-Scan Air Surveillance Radar with 5 km Detection Range S Band Frequency and 360° Azimuth Coverage
Características Galeria Descrição de produto Peça umas citações
Características
Especificações
Faixa Mínima de Detecção: ≤100m
Taxa de dados: Pesquisando: ≤2s
Consumo de energia: ≤250W
Fonte de energia: AC220V-AC240V
Peso líquido: ≤60kg (com PTZ)
Temperatura de trabalho e temperatura de armazenamento: 40°C ~ +55°C / -40°C ~ +65°C
Destacar:

5 km detection range Air Surveillance Radar

,

S band frequency Phased Array Radar

,

360° azimuth coverage Drone Detection Radar
Informação básica
Lugar de origem: China
Marca: UND
Número do modelo: U216R-1S5K-3D
Condições de Pagamento e Envio
Tempo de entrega: 5-8 dias
Termos de pagamento: T/T
Habilidade da fonte: 100
Descrição de produto
High-Resolution Fast-Scan Surveillance Radar
Air Surveillance Radar - U 216R-1S5K-3D / S band
The U 216R-1S5K-3D operates in S-band and employs advanced digital active phased array technology. Through modular, precision engineering and the integrated application of adaptive moving target detection, digital T/R (transmit/receive), DBF (digital beamforming), and analog-to-digital integration design, this radar delivers exceptional detection performance, high precision, and cost-effectiveness as an outstanding ground moving target detection system.
This system accurately provides comprehensive target tracking information including azimuth, distance, altitude, and speed parameters.
Designed for detection, warning, and target indication of micro/small civil UAVs in critical areas such as prisons, exhibitions, and other sensitive locations.
Key Features
  • High data rate and high positioning accuracy
  • Multi-Input Multi-Output (MIMO) system
  • All-weather adaptability
Applications
Airports, border areas, and other critical security surveillance locations
Technical Specifications
Item Specification
Working system/mode Phased array system (Azimuth phase sweep)
Working frequency S band (2.9GHz; 5 operating frequency points)
Detection range 5 km (DJI Phantom 3/4 RCS≈0.01m²)
Minimum detection range ≤100m
Azimuth coverage 0°~360°
Elevation coverage 0°~40°
Distance accuracy ≤10m
Azimuth accuracy ≤1.0°
Elevation accuracy ≤1.0°
Data rate Searching: ≤2s
Power Consumption ≤250W
Power supply AC220V-AC240V
Net weight ≤60kg (with PTZ)
Interface RJ45, UDP protocol
Dimension 782mm * 695mm * 200mm (Antenna)
365mm * 365mm * 312mm (Turntable)
Working temperature & Storage Temperature -40°C ~ +55°C / -40°C ~ +65°C
Working Environment Rain-proof; Dust Prevention; Sand-prevention; Moisture-proof, Mould-proof and Salt-proof
