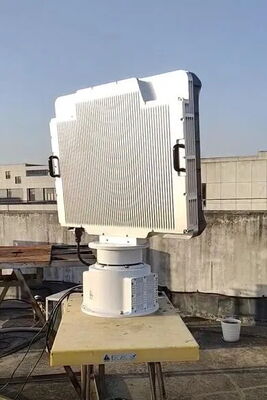

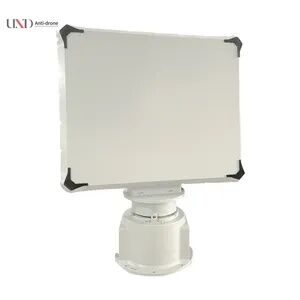

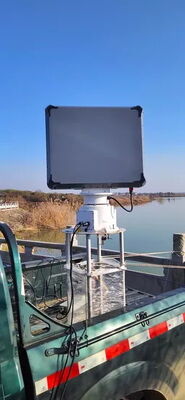

S Band 5 km Detection Range Air Surveillance Radar with 360° Azimuth Coverage for Drone Detection

1
MOQ
Please consult a sales engineer
preço
S Band 5 km Detection Range Air Surveillance Radar with 360° Azimuth Coverage for Drone Detection
Características Galeria Descrição de produto Peça umas citações
Características
Especificações
Faixa Mínima de Detecção: ≤100m
Frequência de trabalho: Banda S (2,9 GHz; 5 pontos de frequência operacional)
Faixa de detecção: 5 km (DJI Phantom 3/4 RCS≈0,01m²)
Consumo de energia: ≤250W
Peso líquido: ≤60kg (com PTZ)
Fonte de energia: AC220V-AC240V
Destacar:

5 km detection range Air Surveillance Radar

,

S band frequency Drone Detection Radar

,

360° azimuth coverage Phased Array Radar
Informação básica
Lugar de origem: China
Marca: UND
Número do modelo: U216R-1S5K-3D
Condições de Pagamento e Envio
Tempo de entrega: 5-8 dias
Termos de pagamento: T/T
Habilidade da fonte: 100
Descrição de produto
For Long-Range Detection, Tracking and Classification of Drones S Band 3D Surveillance Radar
Product Overview
Air Surveillance Radar
U 216R-1S5K-3D / S band

The U 216R-1S5K-3D radar operates in S-band and utilizes advanced digital active phased array technology. Through modular, precision design and integrated use of adaptive moving target detection, digital T/R (transmit/receive), DBF (digital beamforming), and analog-to-digital integration, this radar delivers stable detection performance, high precision, and cost-effectiveness, making it an excellent ground moving target detection solution.
This advanced radar system accurately provides target azimuth, distance, altitude, speed, and other tracking information. It is specifically designed for detection, warning, and target indication of micro/small civil UAVs in critical areas such as prisons, exhibitions, and other sensitive locations.
Key Features
  • High data rate and high positioning accuracy
  • Multi-Input Multi-Output (MIMO) system
  • All-weather adaptability
Applications
Airports, border areas, and other critical security surveillance locations
Technical Specifications
Item Specification
Working system/mode Phased array system (Azimuth phase sweep)
Working frequency S band (2.9GHz; 5 operating frequency points)
Detection range 5 km (DJI Phantom 3/4 RCS≈0.01m²)
Minimum detection range ≤100m
Azimuth coverage 0°~360°
Elevation coverage 0°~40°
Distance accuracy ≤10m
Azimuth accuracy ≤1.0°
Elevation accuracy ≤1.0°
Data rate Searching: ≤2s
Power Consumption ≤250W
Power supply AC220V-AC240V
Net weight ≤60kg (with PTZ)
Interface RJ45, UDP protocol
Dimension 782mm * 695mm * 200mm (Antenna)
365mm * 365mm * 312mm (Turntable)
Working temperature & Storage Temperature -40°C ~ +55°C
-40°C ~ +65°C
Working Environment Rain-proof; Dust Prevention; Sand-prevention; Moisture-proof, Mould-proof and Salt-proof
