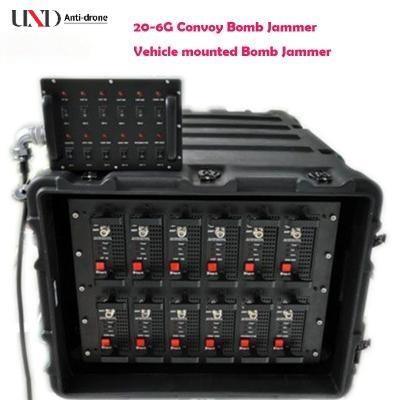

11 Bands Convoy Bomb Jammer 550W Military Signal Jammers With 20-6G Frequency Range

1
MOQ
Please consult a sales engineer
preço
11 Bands Convoy Bomb Jammer 550W Military Signal Jammers With 20-6G Frequency Range
Características Galeria Descrição de produto Peça umas citações
Características
Especificações
Nome: Bloqueador de bomba de comboio
Exemplo do pelicano: 1440, 30 kg de peso
Umidade: 5% a 90%
Temperatura operacional: -20 ℃ a +60 ℃
Peso: 90 kg (apenas unidade principal, excluindo antena e acessórios)
Dimensão: 626 mm (C) × 49,2 mm (L) × 350 mm (A), Pelican 1620
Tempo de funcionamento da bateria: Aproximadamente 1 hora
Destacar:

11 Bands Convoy Bomb Jammer

,

Convoy Bomb Jammer 550W

,

550W Military Signal Jammers
Informação básica
Lugar de origem: China
Marca: UND
Número do modelo: U-vip11-DDS
Condições de Pagamento e Envio
Tempo de entrega: 5-8 dias
Termos de pagamento: T/T
Habilidade da fonte: 100
Descrição de produto
11 Bands 550W Vehicle Mounted Military Convoy Bomb Jammer with 20-6G Frequency Range
20-6G Full Band Vehicle Military Convoy Protection Roof Mounted Jammer System
Vehicle Military Convoy Jammer Description
This full band DDS military convoy jammer is a vehicle mounted jamming system featuring 11 frequency bands from 20MHz to 6GHz, with each band delivering 50W of high power signals. The U-vip11-DDS IED RCIED military bomb jammer can be installed in various vehicle types and includes optional extra battery support for approximately 1 hour of operation.
Key Features
  • 11 frequency bands, each with 50W output power
  • Effective jamming range up to 800 meters
  • Optional external battery system available
  • Ultra broadband frequency coverage from 20MHz to 6GHz
  • 11 plug-and-play modules for easy maintenance and future upgrades
  • Up to 20 frequency bands with DDS technology design
  • Centralized control from driver's console with individual module ON/OFF capability
  • Integrated video camera with LCD monitor for interior and exterior surveillance
Technical Specifications
Channel Output Port Frequency Range Average Output Power
1 27MHz, 35MHz, 41MHz, 72MHz toys and HM Remote Control 20-100MHz 50W
2 VHF Low-power transmitters 100-400MHz 50W
3 Walky-Talky, 315/433MHz Car Remote Control 400-700MHz 50W
4 4G Low LTE, GSM900, CDMA800 700-1000MHz 50W
5 GPS 1000-1200MHz 50W
6 1500 4G, GPS 1500-1600MHz 50W
7 DCS1800, PCS1900, 3G UMTS 1800-2200MHz 50W
8 4G 2300, WiFi 2.4G, Bluetooth, 4G Wimax 2300-2700MHz 50W
9 5G LTE 3500-3800MHz 50W
10 WiFi 5.2G, Wireless Camera 5100-5500MHz 50W
11 WiFi 5.8G, Wireless Camera 5500-5900MHz 50W
System Information
Power Supply AC adapter (AC220V-DC27V or 24V/45 Amp) or External Battery
RJ485 Protocol Centralized control of all 11 modules via single RJ485 connector
Main LED Display Shows all band/module status including frequency, settings, output power, VSWR, voltage, current, and temperature
Dimension 626mm (L) * 49.2mm (W) * 350mm (H), Pelican 1620
Weight 90 kg (main unit only, excluding antenna and accessories)
Operating Temperature -20℃ to +60℃
Humidity 5% to 90%
External Battery B-50AH 27V/50AH LiFePo4 Battery
Pelican Case 1440, 30kg Weight
Battery Working Time Approximately 1 hour
Applications
This vehicle bomb jamming system is designed for bomb disposal squads, VIP protection teams, military security forces, anti-terrorism units, anti-drug units, border control units, and checkpoint personnel. These law enforcement professionals benefit from advanced RF jamming solutions to conduct operations more effectively and prevent criminal information leakage. The system is also suitable for securing important sporting events, international summits, and high-security gatherings.
etiqueta:

sistemas de bloqueio militares

Interruptores de sinal militares

jammer da proteção do trem
