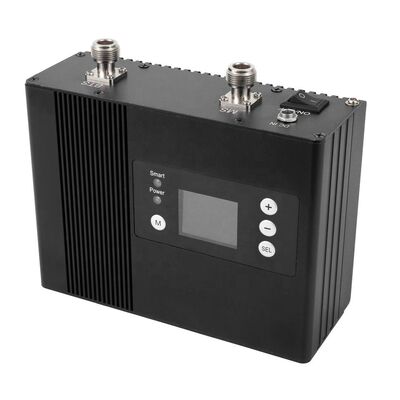

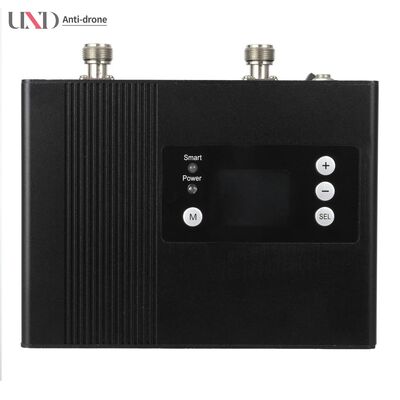

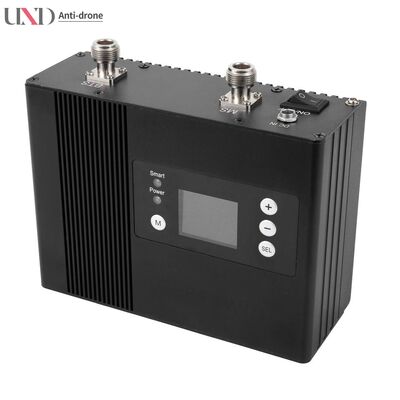

UND Customized Qua-band 20dBm Mobile Phone Signal Booster 500-1000sqm Coverage 70dB Gain CDMA800 PCS1900 WCDMA2100 Repeater

1
MOQ
Please consult a sales engineer
Price
UND Customized Qua-band 20dBm Mobile Phone Signal Booster 500-1000sqm Coverage 70dB Gain CDMA800 PCS1900 WCDMA2100 Repeater
Features Gallery Product Description Chat Now
Features
Specifications
Type: Qua-band
Coverage: 500-1000sqm
Gain: 70.0db
SIZE: 124mm*170mm*65mm
Output Power: 20dBm
Power Supply: AC 100-240V, DC 9V 5A
Weight: 3.5KG
Highlight:

customized mobile signal booster

,

customized mobile phone signal booster

,

70db gain mobile signal booster
Basic Infomation
Place of Origin: China
Brand Name: UND
Model Number: U-20CP-K
Payment & Shipping Terms
Delivery Time: 5-8 days
Payment Terms: T/T
Supply Ability: 100
Product Description



 UND Customized Qua-band 20dBm Mobile Phone Signal Booster 500-1000sqm Coverage 70dB Gain CDMA800 PCS1900 WCDMA2100 Repeater 0


Frequency Range
Uplink
Downlink
CDMA800MHz
830-840MHz
875-885MHz
PCS1900MHz
1850-1910MHz
1930-1990MHz
Gain
65dB±2dB
70dB±2dB
Output Power
17dBm±2dBm
20dBm±2dBm
Bandwidth
Wide Band
ALC
≥ 20dB
Ripple in Band
8dB
Noise Figure
≤ 6dB
VSWR
≤ 2.0
Intermodulation Products
≤ -40dBc
Spurious Emission
9KHz~1GHz
≤ -36dBm/30KHz
1~12.75GHz
≤ -30dBm/30KHz
Time Delay
≤ 1.5 μs
Frequency stability
≤ 0.01ppm
MTBF
> 50000 hours
Impedance
50Ω
Power Supply
AC 100-240V,DC 9V5A
Power LED
Power indicator
Alarm LED
Red
Self-oscillation or Strong input signal
Green
Normal
Mechanical Specification
RF Connector
N-Female
Cooling
Heatsink Convection cooling
Humidity
< 90%
Operating Temperature
-10°C ~ +55°C
Environment Conditions
IP40(Indoor)
Installation Type
Wall Installation
Size
170*127*65mm
Gross Weight with the full set
3.5KG

UND Customized Qua-band 20dBm Mobile Phone Signal Booster 500-1000sqm Coverage 70dB Gain CDMA800 PCS1900 WCDMA2100 Repeater 2

Advantages:

Digital Display Panel, Intelligent mode setting
Smart function called which can be activated via the digital display panel.
Users can choose gain and working system by LCE Digital Panel.
Set the technical parameters simple and efficient, this is easier than DIP Switch.

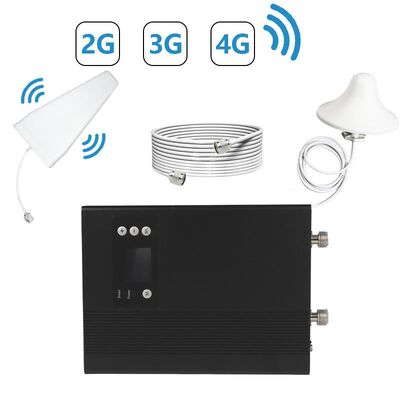

Standard Package:

1) AC90-264V, DC9V/5A power supply adapter 1PCS
2) AC power cord (EU/US/UK/SA/China standard, etc) 1PCS
3) Installation kit 1PCS
4) User manual 1PCS

Connection:

A. BTS Port: donor antenna cable is connected with Outdoor Port;
B. MS Port: service whip antenna is connected with Indoor Port;
C. DC IN: connected with Power adaptor.


ABOUT US

UND Customized Qua-band 20dBm Mobile Phone Signal Booster 500-1000sqm Coverage 70dB Gain CDMA800 PCS1900 WCDMA2100 Repeater 4

 UND Customized Qua-band 20dBm Mobile Phone Signal Booster 500-1000sqm Coverage 70dB Gain CDMA800 PCS1900 WCDMA2100 Repeater 6





Certification



UND Customized Qua-band 20dBm Mobile Phone Signal Booster 500-1000sqm Coverage 70dB Gain CDMA800 PCS1900 WCDMA2100 Repeater 8UND Customized Qua-band 20dBm Mobile Phone Signal Booster 500-1000sqm Coverage 70dB Gain CDMA800 PCS1900 WCDMA2100 Repeater 10




FAQ
1. Why is there still no signal after installing the equipment?
1. Check the power on booster and power supply.
2. Check the connector of outdoor antenna is tight or not.
3. Check the connectors of RF cable are tight or not.
4. Check the outdoor signal is strong enough or not.
5. Check to make sure the antenna is installed correctly.
6. Check the connector of indoor antenna is tight or not.
7. Check the cable type is suitable or not.
2. Why the signal strength is too weak on the edge of area?
1. Check the outdoor signal and antenna direction.
2. Check booster is full gain or not.
3. Check all of the connectors are tight.
4. Change the location of outdoor/indoor antenna.
5. Check the cable type is suitable or not.
6. Deploy more indoor antennas.
3. After running booster, why the signals are not stable?
1. Checking the distance between donor antenna and server antenna are too close to each other? Check LED of booster to make sure alarms are green.
2. Checking the signals from donor antenna whether to be stable or not?
3. Connect the system again if it is incorrect connection.
