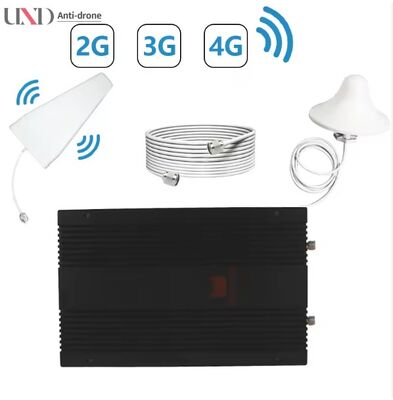

30dBm High Power Customized Qua-band 900 1800 2100 5000-8000sqm Coverage 80.0db Gain Mobile Phone Signal Booster Repeater

1
MOQ
Please consult a sales engineer
Price
30dBm High Power Customized Qua-band 900 1800 2100 5000-8000sqm Coverage 80.0db Gain Mobile Phone Signal Booster Repeater
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Qua-band
Coverage: 5000-8000sqm
Gain: 80.0db
SIZE: 439mm*268mm*58mm
Output Power: 30dBm
Power Supply: AC 100-240V, DC 9V 5A
Weight: 7KG
Highlight:

30dbm mobile signal booster

,

30dbm mobile phone signal booster

,

customized mobile signal booster
Basic Infomation
Place of Origin: China
Brand Name: UND
Model Number: U-30DWL-C
Payment & Shipping Terms
Delivery Time: 5-8 days
Payment Terms: T/T
Supply Ability: 100
Product Description

30dBm High Power Customized Qua-band 900 1800 2100 5000-8000sqm Coverage 80.0db Gain Mobile Phone Signal Booster Repeater 030dBm High Power Customized Qua-band 900 1800 2100 5000-8000sqm Coverage 80.0db Gain Mobile Phone Signal Booster Repeater 2

Parameters:

Frequency Range

Uplink

Downlink

GSM900

880-915MHz

925-960MHz

DCS 1800

1710-1785MHz

1805-1880MHz

WCDMA 2100

1920-1980MHz

2110-2170MHz

Gain

75dB±2dB

80dB±2dB

Output Power

27dBm±2dBm

30dBm±2dBm

Band width

Wide Band

Manual Gain Control

31dB / 1dB Step

ALC

≥ 20dB

Ripple in Band

8dB

Noise Figure

≤ 6dB

VSWR

≤ 2.0

Intermodulation Products

≤ -40dBc

Spurious Emission

9KHz~1GHz

≤ -36dBm/30KHz

1~12.75GHz

≤ -30dBm/30KHz

Time Delay

≤ 1.5 μs

Frequency stability

≤ 0.01ppm

MTBF

> 50000 hours

Impedance

50Ω

Power Supply

AC 90-264V, DC 10V/10A

Power LED

Power indicator

Alarm LED

Red

Self oscillation or Strong input signal

Green

Normal

Mechanical Specification

RF Connector

N-Female

Switch

Power Switch

Cooling

Heatsink Convection cooling

Humidity

< 90%

Operating Temperature

-10°C ~ +55°C

Environment Conditions

IP40(Indoor)

Installation Type

Wall Installation

Size

439*268*58mm

Weight

7Kg

30dBm High Power Customized Qua-band 900 1800 2100 5000-8000sqm Coverage 80.0db Gain Mobile Phone Signal Booster Repeater 430dBm High Power Customized Qua-band 900 1800 2100 5000-8000sqm Coverage 80.0db Gain Mobile Phone Signal Booster Repeater 6

ABOUT US
30dBm High Power Customized Qua-band 900 1800 2100 5000-8000sqm Coverage 80.0db Gain Mobile Phone Signal Booster Repeater 830dBm High Power Customized Qua-band 900 1800 2100 5000-8000sqm Coverage 80.0db Gain Mobile Phone Signal Booster Repeater 10

30dBm High Power Customized Qua-band 900 1800 2100 5000-8000sqm Coverage 80.0db Gain Mobile Phone Signal Booster Repeater 12







Certification



30dBm High Power Customized Qua-band 900 1800 2100 5000-8000sqm Coverage 80.0db Gain Mobile Phone Signal Booster Repeater 1430dBm High Power Customized Qua-band 900 1800 2100 5000-8000sqm Coverage 80.0db Gain Mobile Phone Signal Booster Repeater 16


1. Why is there still no signal after installing the equipment?
1. Check the power on booster and power supply.
2. Check the connector of outdoor antenna is tight or not.
3. Check the connectors of RF cable are tight or not.
4. Check the outdoor signal is strong enough or not.
5. Check to make sure the antenna is installed correctly.
6. Check the connector of indoor antenna is tight or not.
7. Check the cable type is suitable or not.
2. Why the signal strength is too weak on the edge of area?
1. Check the outdoor signal and antenna direction.
2. Check booster is full gain or not.
3. Check all of the connectors are tight.
4. Change the location of outdoor/indoor antenna.
5. Check the cable type is suitable or not.
6. Deploy more indoor antennas.
3. After running booster, why the signals are not stable?
1. Checking the distance between donor antenna and server antenna are too close to each other? Check LED of booster to make sure alarms are green.
2. Checking the signals from donor antenna whether to be stable or not?
3. Connect the system again if it is incorrect connection.
