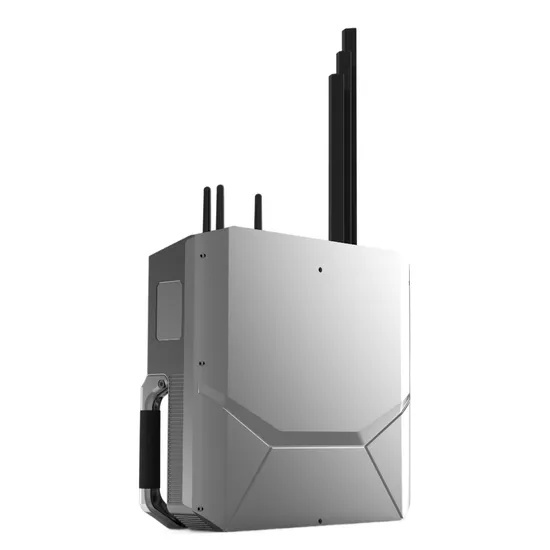

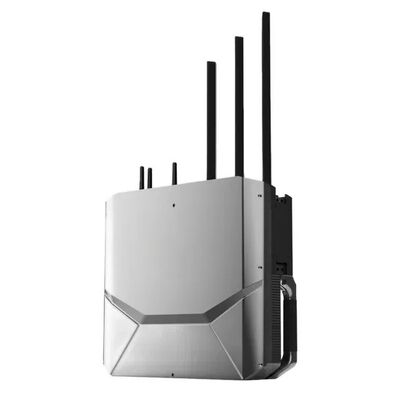

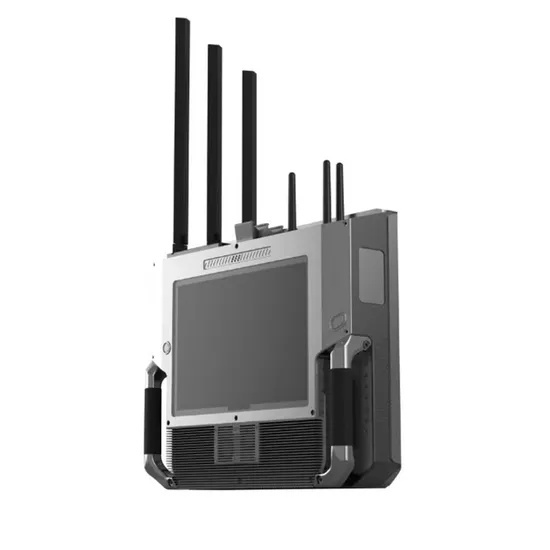

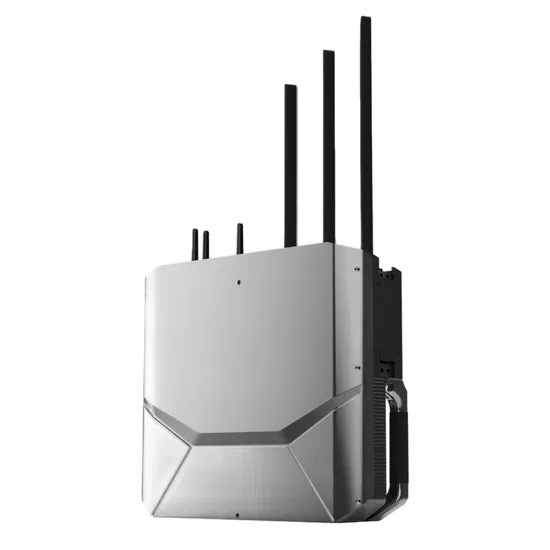

Portable 5km Detection Range UAV GPS Spoofer With 8 Band Electromagnetic Suppression and 10.1" Anti-Glare Touchscreen
The U-H1030 portable UAV reconnaissance, strike, and deception system integrates six electronic reconnaissance algorithms, eight-band electromagnetic strike technology, and four-mode navigation deception. This highly integrated design enables comprehensive control over the entire drone detection, strike, and deception process with a single device.
During operation, the system detects intruding drones through radio frequency scanning, signature recognition, and decoding. Advanced electronic reconnaissance algorithms enable drone presence detection, direction finding, human-to-aircraft positioning, ID recognition, and image analysis, with support for multi-unit networked TDOA positioning.
Eight-band electromagnetic suppression technology interferes with and blocks drone remote control links, image transmission links, and navigation signals, forcing drones to return or land. Four-mode navigation deception transmits false satellite navigation signals to intrude on drone navigation systems, effectively prohibiting, denying, or repelling unauthorized drones.
The device features passive detection for excellent concealment and desensitized design to prevent exploitation. It supports handheld, backpack, tripod, gimbal, and vehicle-mounted configurations, meeting diverse operational requirements. The 10.1" anti-glare touchscreen supports maps, coordinates, blacklists, whitelists, logs, and more, offering rich visual content with simple operation.
System Functions
Detection and Alarm
Omnidirectional antenna receives drone remote control and image transmission signals in real-time, identifying intruding drones through radio spectrum characteristics. Provides drone model, frequency, and bandwidth information with audible and visual alarms.
Direction Finding Detection
After omnidirectional detection alarm, directional antenna determines drone position based on radio signal strength, providing model, frequency, and direction information.
Positioning Detection
Utilizes protocol parsing technology for accurate identification and location of DJI and other brand drones. ID recognition technology identifies drone broadcasts, providing model, serial number, coordinates, altitude, return point, and pilot location.
ID Recognition
Receives drone broadcast signals and identifies model, frequency, location, flight path, and operator position.
FPV Image Analysis
Detects and identifies FPV drones with capability to capture first-person perspective images.
TDOA Positioning (Optional)
Multi-station networking forms high-precision TDOA positioning system for accurate drone and pilot location.
Precision Strike
Transmits jamming signals across eight frequency bands to block remote control, image transmission, and satellite navigation signals.
Navigation Deception (Optional)
Transmits four-mode false satellite navigation signals to infiltrate drone navigation systems for no-fly enforcement, area denial, and targeted expulsion.
Screen Display

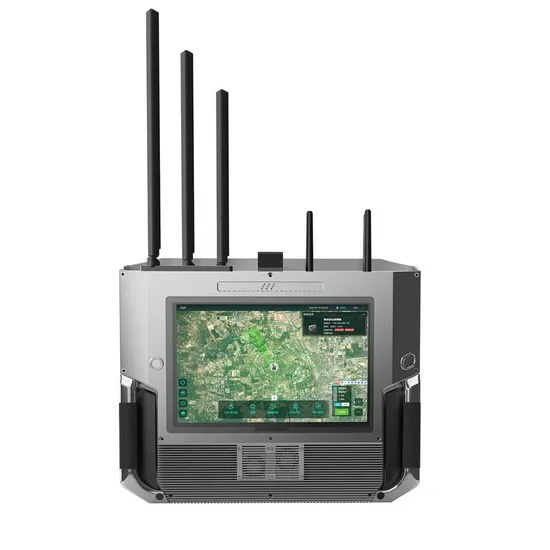

10.1" anti-glare touchscreen displays maps, real-time device location, status, detection results, and countermeasures.
Multi-mode Integrated Networking
Supports 4G communication and network interfaces for TDOA networking with similar or different detection equipment, supporting centralized control.
Portability and Battery Life
Compact, lightweight design with built-in large-capacity battery providing over 4 hours of standby time.
Technical Parameters
| Parameter |
Specification |
| Detection Frequency |
20MHz-6GHz |
| Detection Range |
>500m-5km |
| Detection Angle |
360° |
| Positioning Accuracy |
≤20m (TDOA), ≤5m (resolution) |
| Resolution Information |
Drone model, SN, longitude, latitude, altitude, return point, and pilot location |
| Alarm |
Audible and visual alarms (adjustable), external headphone plug (can be muted) |
| Interference Frequency Band |
800MHz-6GHz, 8 bands |
| Interference Angle |
≥30° |
| Decoy Signal Type |
GPS, GLONASS, GALILEO, BD |
| Decoy Capability |
No-Fly, Deny, Expel |
| Decoy Control Radius |
500m-1000m (adjustable) |
| Usage |
Handheld, backpack, stand, gimbal, vehicle-mounted |
