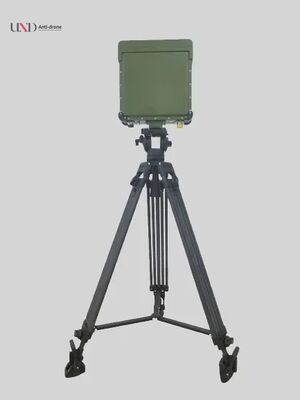

Portable Surveillance Radar with 1.5km Pedestrian Detection and C Band (5.5-5.8GHz) in Backpack Design

1
MOQ
Please consult a sales engineer
Price
Portable Surveillance Radar with 1.5km Pedestrian Detection and C Band (5.5-5.8GHz) in Backpack Design
Features Gallery Product Description Chat Now
Features
Specifications
Working Frequency: C Band (5.5-5.8GHz)
Minimum Detection Range: ≤100m
Azimuth Coverage: Single Panel: 90°
Target Detection Speed: 0.5m/s - 30m/s
Dimension: 490mm X 340mm X 240mm
Azimuth Accuracy: ≤1.0°
Highlight:

1.5km Pedestrian Detection Portable Surveillance Radar

,

C Band (5.5-5.8GHz) Ground Surveillance Radar

,

Backpack Portable Design Man Portable Radar
Basic Infomation
Place of Origin: China
Brand Name: UND
Model Number: U-501P-1C
Payment & Shipping Terms
Delivery Time: 5-8 days
Payment Terms: T/T
Supply Ability: 100
Product Description
Ground Surveillance Radar Short Range Man Portable
Portable Surveillance Radar - U-501P-1C / C Band
The U-501P-1C is a portable backpack-type radar system featuring modular design with simple structure for convenient installation. This wireless system requires no wiring and offers simple, fast deployment. The radar transmits target position and characteristic information to the supporting display and control system through wireless transmission. The terminal software is designed for ease of use with intuitive operation.
Key Features

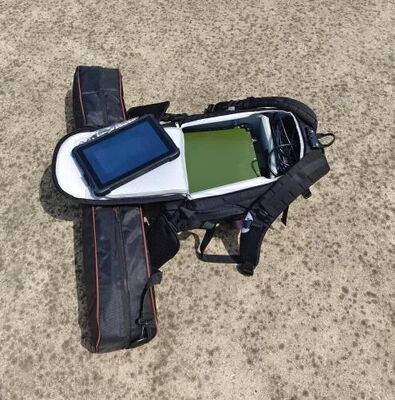

Backpack portable design for easy transport
High data rate and high positioning accuracy
Built-in GPS positioning directional antenna
All-weather operational capability
Tablet with Windows 10 operating system
Rechargeable battery power system
Applications
Checkpoints, prisons, reservoirs, perimeter security, oil fields, and other critical infrastructure protection.
Technical Specifications
Item Specification
Working mode Phased array + Pulse Doppler
Working frequency C band (5.5-5.8GHz)
Detection range 1-1.5km (Pedestrians)
3km (Vehicles/Ship)
5km (Vessel)
Minimum detection range ≤100m
Azimuth coverage Single panel: 90°
Elevation coverage 18°
Distance accuracy ≤10m
Azimuth Accuracy ≤1.0°
Target detection speed 0.5m/s - 30m/s
Speed precision ≤0.2m/s (Radial velocity)
Data rate ≤1s/Frame
Weight ≤18kg
Endurance (Normal temperature) Terminal endurance ≥5h
Radar array endurance ≥5h
Interface Wireless transmission (open 1km)
RJ45 network port transmission (with 3 meters network cable)
Dimension 490mm x 340mm x 240mm
Working temperature Operating: -20°C to +55°C
Storage: -30°C to +65°C
Rain proof, dust-proof, sand control measures
Moisture-proof and mildew proof measures
