Home /Products/Ground Surveillance Radar/3km Vehicle Detection Backpack Portable Ground Surveillance Radar with All-Weather Adaptability

3km Vehicle Detection Backpack Portable Ground Surveillance Radar with All-Weather Adaptability

1
MOQ
Please consult a sales engineer
Price
3km Vehicle Detection Backpack Portable Ground Surveillance Radar with All-Weather Adaptability
Features Gallery Product Description Chat Now
Features
Specifications
Azimuth Coverage: Single Panel: 90°
Working Frequency: C Band (5.5-5.8GHz)
Detection Range: 1-1.5km (Pedestrians) 3km (Vehicles/Ship) 5km (Vessel)
Minimum Detection Range: ≤100m
Target Detection Speed: 0.5m/s - 30m/s
Dimensions: 490mm X 340mm X 240mm
Highlight:

3km Vehicle Detection Ground Surveillance Radar

,

Backpack Portable Ground Surveillance Radar

,

All-Weather Adaptability Ground Surveillance Radar
Basic Infomation
Place of Origin: China
Brand Name: UND
Model Number: U-501P-1C
Payment & Shipping Terms
Delivery Time: 5-8 days
Payment Terms: T/T
Supply Ability: 100
Product Description

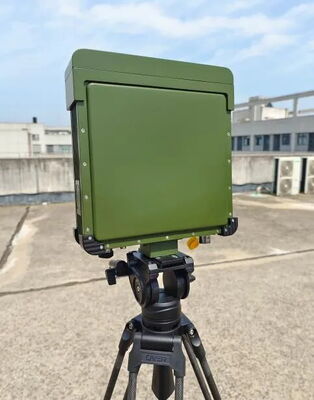

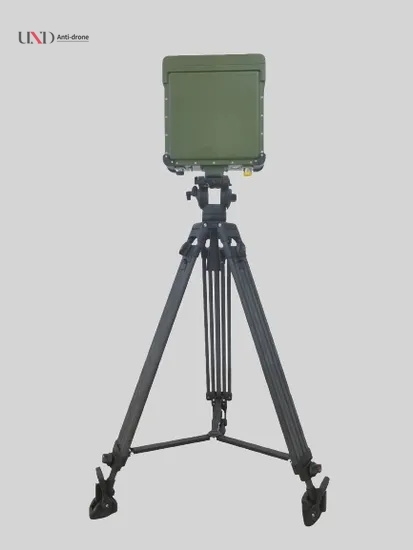

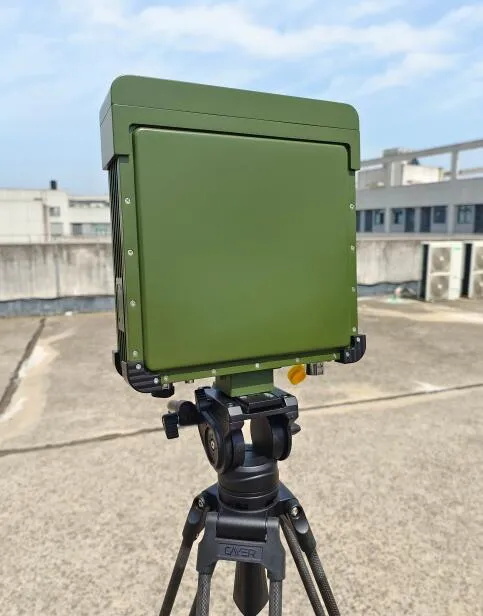

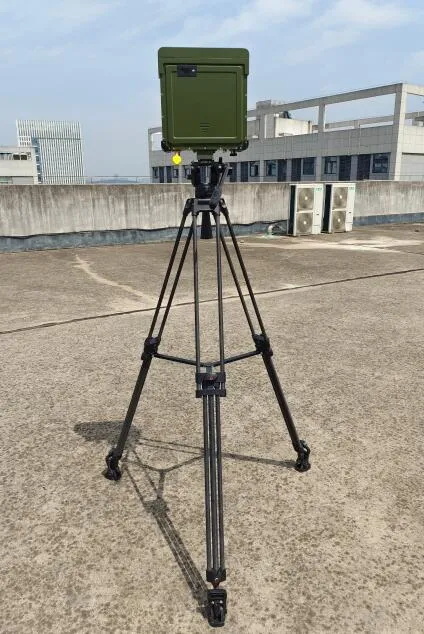

U-501P-1C Portable Surveillance Radar
Man-portable ground surveillance radar system with 3-5km detection range, specifically designed to detect and track vehicles, vessels, and personnel.
C Band Portable Radar System
The U-501P-1C is a backpack-portable radar featuring modular design with simple structure, convenient installation, and rapid deployment capabilities. The system transmits target position and characteristic information wirelessly to the display and control system, with intuitive terminal software for easy operation.
Key Features
  • Backpack portable design for easy transport
  • High data rate with superior positioning accuracy
  • Built-in GPS positioning directional antenna
  • All-weather operational capability
  • Tablet with Windows 10 operating system
  • Integrated rechargeable battery system
Applications
Checkpoint security, prison monitoring, reservoir protection, perimeter security, oil field surveillance, and various security applications.
Technical Specifications
Specification Details
Working Mode Phased array + Pulse Doppler
Working Frequency C band (5.5-5.8GHz)
Detection Range 1-1.5km (Pedestrians)
3km (Vehicles/Ship)
5km (Vessel)
Minimum Detection Range ≤100m
Azimuth Coverage Single panel: 90°
Elevation Coverage 18°
Distance Accuracy ≤10m
Azimuth Accuracy ≤1.0°
Target Detection Speed 0.5m/s - 30m/s
Speed Precision ≤0.2m/s (Radial velocity)
Data Rate ≤1s/Frame
Weight ≤18kg
Endurance (Normal Temperature) Terminal endurance ≥5h
Radar array endurance ≥5h
Interface Wireless transmission (open 1km)
RJ45 network port transmission (with 3 meters network cable)
Dimensions 490mm x 340mm x 240mm
Working Temperature Operating: -20°C to +55°C
Storage: -30°C to +65°C
Rain proof, dust-proof, sand control measures
Moisture-proof and mildew proof measures
