Home /Products/Coastal Surveillance Radar/C Band Frequency Coastal Surveillance Radar with Phased Array + Pulse Doppler for All-weather Adaptability in Maritime Security

C Band Frequency Coastal Surveillance Radar with Phased Array + Pulse Doppler for All-weather Adaptability in Maritime Security

1
MOQ
Please consult a sales engineer
Price
C Band Frequency Coastal Surveillance Radar with Phased Array + Pulse Doppler for All-weather Adaptability in Maritime Security
Features Gallery Product Description Chat Now
Features
Specifications
Target Detection Speed: 0.2m/s - 30m/s
Speed Precision: ≤0.2m/s
Distance Accuracy: ≤10m
Azimuth Coverage: Single Panel: 90° (Dual Panel: 180°, 3-panel: 270°, 4-panel: 360°)
Working Frequency: C Band (5.5-5.8GHz)
Power Supply/Consumption: AC220V/DC12V (External Battery)/65W
Highlight:

C Band Frequency Coastal Surveillance Radar

,

Phased Array + Pulse Doppler Maritime Security Radar

,

All-weather Adaptability Vessel Monitoring Radar
Basic Infomation
Place of Origin: China
Brand Name: UND
Model Number: U501-1C3K
Payment & Shipping Terms
Delivery Time: 5-8 days
Payment Terms: T/T
Supply Ability: 100
Product Description

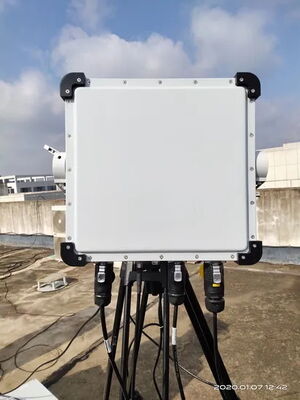

Coastal Surveillance Radar System
The U 501-1C Coastal Surveillance Radar provides state-of-the-art protection for coastline surveillance, vessel management, anti-collision systems, and illegal ship detection. This C-band radar system is specifically designed to detect and track water surface targets, delivering immediate position and coordinate information while enabling rapid threat response planning.
Key Features
  • High data rate with superior positioning accuracy
  • Multi-Input Multi-Output (MIMO) system architecture
  • All-weather operational capability
Applications
Coastline monitoring, port security, bridge surveillance, reservoir protection, and critical infrastructure security.
Technical Specifications
Item Specification
Working Mode Phased array + Pulse Doppler
Working Frequency C band (5.5-5.8GHz)
Detection Range > 3km (Boats)
Minimum Detection Range ≤100m
Azimuth Coverage Single panel: 90° (Dual panel: 180°, 3-panel: 270°, 4-panel: 360°)
Elevation Coverage 18°
Distance Accuracy ≤10m
Azimuth Accuracy ≤1.0°
Target Detection Speed 0.2m/s - 30m/s
Speed Precision ≤0.2m/s
Data Rate ≤1.5s
Net Weight ≤4kg
Power Supply/Consumption AC220V/DC12V (External Battery)/65W
Interface Ethernet (UDP protocol)
Dimension 324mm x 298mm x 86mm
Working Temperature -40°C to +60°C
Working Environment Rain-proof; Dust Prevention; Sand-prevention; Moisture-proof, Mould-proof and Salt-proof
C Band Frequency Coastal Surveillance Radar with Phased Array + Pulse Doppler for All-weather Adaptability in Maritime Security 0
