Home /Products/Signal Booster/Customized Tri Band DCS WCDMA LTE Signal Booster with 20dBm High Power and Digital Display Panel

Customized Tri Band DCS WCDMA LTE Signal Booster with 20dBm High Power and Digital Display Panel

1
MOQ
Please consult a sales engineer
Price
Customized Tri Band DCS WCDMA LTE Signal Booster with 20dBm High Power and Digital Display Panel
Features Gallery Product Description Chat Now
Features
Specifications
Bandwidth: Wide Band
Ripple In Band: 8dB
Intermodulation Products: ≤ -40dBc
Time Delay: ≤ 1.5 μs
Frequency Stability: ≤ 0.01ppm
Impedance: 50Ω
Highlight:

Tri Band DCS WCDMA LTE Signal Booster

,

20dBm High Power Signal Booster

,

Digital Display Panel Signal Booster
Basic Infomation
Place of Origin: China
Brand Name: UND
Payment & Shipping Terms
Delivery Time: 5-8 days
Payment Terms: T/T
Supply Ability: 100
Product Description
Customized Tri Band DCS WCDMA LTE 1800 2100 2600 Signal Repeater 20dBm High Power Cellphone Signal Booster
Key Advantages
  • Digital Display Panel with Intelligent Mode Setting
  • Smart functions activated via digital display panel
  • User-selectable gain and working system via LCD Digital Panel
  • Simple and efficient technical parameter configuration
  • Easier operation than traditional DIP Switch systems
Standard Package Contents
  • AC90-264V, DC9V/5A Power Supply Adapter (1 Piece)
  • AC Power Cord (EU/US/UK/SA/China Standard, etc.) (1 Piece)
  • Installation Kit (1 Piece)
  • User Manual (1 Piece)
Connection Guide
BTS Port: Connect donor antenna cable to Outdoor Port
MS Port: Connect service whip antenna to Indoor Port
DC IN: Connect to Power Adapter
Applications
Expands signal coverage and fills signal blind areas where signal is weak or unavailable
Indoor Applications: Hotels, Homes, Basements, Shopping Malls, Offices, Parking Lots, Shops, etc.
Technical Parameters
Parameter Uplink Downlink
DCS1800MHz 1710-1785MHz 1805-1880MHz
WCDMA2100MHz 1920-1980MHz 2110-2170MHz
LTE2600MHz 2500-2570MHz 2620-2690MHz
Gain 65dB±2dB 70dB±2dB
Output Power 17dBm±2dBm 20dBm±2dBm
Bandwidth Wide Band
ALC ≥ 20dB
Ripple in Band 8dB
Noise Figure ≤ 6dB
VSWR ≤ 2.0
Intermodulation Products ≤ -40dBc
Spurious Emission 9KHz~1GHz ≤ -36dBm/30KHz 1~12.75GHz ≤ -30dBm/30KHz
Time Delay ≤ 1.5 μs
Frequency Stability ≤ 0.01ppm
MTBF > 50,000 hours
Impedance 50Ω
Power Supply AC 100-240V, DC 9V5A
Mechanical Specifications
RF Connector: N-Female
Cooling: Heatsink Convection Cooling
Humidity: < 90%
Operating Temperature: -10°C to +55°C
Environment Conditions: IP40 (Indoor)
Installation Type: Wall Installation
Size: 170*224*65mm
Gross Weight: 3.5KG

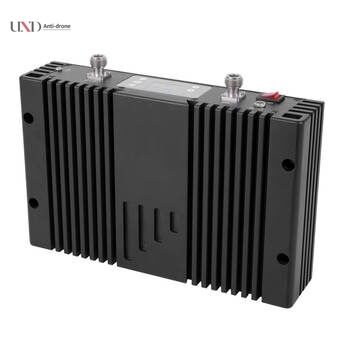

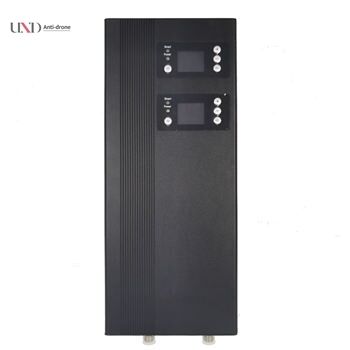

Product Image
Customized Tri Band DCS WCDMA LTE Signal Booster with 20dBm High Power and Digital Display Panel 0
