Dual Band Mobile Phone Signal Booster with 23dBm Output Power and Digital Display Panel

1
MOQ
Please consult a sales engineer
Price
Dual Band Mobile Phone Signal Booster with 23dBm Output Power and Digital Display Panel
Features Gallery Product Description Chat Now
Features
Specifications
Bandwidth: Wide Band
Noise Figure: ≤ 6dB
Intermodulation Products: ≤ -40dBc
Time Delay: ≤ 1.5 μs
Frequency Stability: ≤ 0.01ppm
Impedance: 50Ω
Highlight:

23dBm Output Power Signal Booster

,

Dual Band Signal Repeater

,

Digital Display Panel Mobile Phone Signal Booster
Basic Infomation
Place of Origin: China
Brand Name: UND
Model Number: U-23CP-K
Payment & Shipping Terms
Delivery Time: 5-8 days
Payment Terms: T/T
Supply Ability: 100
Product Description
CDMA800 PCS1900 WCDMA2100 Signal Repeater
Customized 23dBm Dual Band Mobile Phone Signal Booster with advanced digital control and intelligent operation
Key Advantages

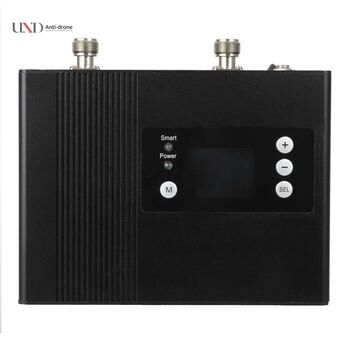

  • Digital Display Panel for intuitive operation
  • Intelligent mode setting with smart activation functions
  • LCD Digital Panel for gain and system selection
  • Simplified technical parameter configuration
  • More efficient than traditional DIP Switch systems

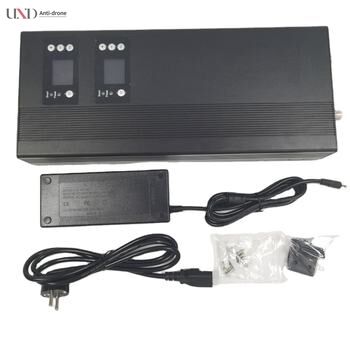

Standard Package Contents
  • AC90-264V, DC9V/5A power supply adapter (1 piece)
  • AC power cord (EU/US/UK/SA/China standard options)
  • Complete installation kit
  • Comprehensive user manual
Connection Guide
BTS Port: Connect donor antenna cable to Outdoor Port
MS Port: Connect service whip antenna to Indoor Port
DC IN: Connect to Power adapter
Technical Specifications
Parameter Uplink Downlink
CDMA800MHz Frequency 830-840MHz 875-885MHz
PCS1900MHz Frequency 1850-1910MHz 1930-1990MHz
Gain 70dB±2dB 75dB±2dB
Output Power 20dBm±2dBm 23dBm±2dBm
Bandwidth Wide Band
ALC ≥ 20dB
Ripple in Band 8dB
Noise Figure ≤ 6dB
VSWR ≤ 2.0
Intermodulation Products ≤ -40dBc
Spurious Emission 9KHz~1GHz: ≤ -36dBm/30KHz 1~12.75GHz: ≤ -30dBm/30KHz
Time Delay ≤ 1.5 μs
Frequency stability ≤ 0.01ppm
MTBF > 50000 hours
Impedance 50Ω
Power Supply AC 100-240V, DC 9V5A
Additional Specifications
Power LED: Power indicator
Alarm LED: Red (Self-oscillation or Strong input signal), Green (Normal)
RF Connector: N-Female
Cooling: Heatsink Convection cooling
Humidity: < 90%
Operating Temperature: -10°C ~ +55°C
Environment Conditions: IP40 (Indoor)
Installation Type: Wall Installation
Size: 170*127*65mm
Gross Weight: 3.5KG
