Dual Band GSM900 DCS1800 WCDMA2100 Signal Booster with Digital Display Panel and 70dB Gain for Enhanced Mobile Phone Signal

1
MOQ
Please consult a sales engineer
Price
Dual Band GSM900 DCS1800 WCDMA2100 Signal Booster with Digital Display Panel and 70dB Gain for Enhanced Mobile Phone Signal
Features Gallery Product Description Chat Now
Features
Specifications
Bandwidth: Wide Band
ALC: ≥ 20dB
Noise Figure: ≤ 6dB
Time Delay: ≤ 1.5 μs
Frequency Stability: ≤ 0.01ppm
Humidity: < 90%
Highlight:

Digital Display Panel Signal Booster

,

Dual Band Signal Repeater

,

70dB Gain Mobile Phone Signal Booster
Basic Infomation
Place of Origin: China
Brand Name: UND
Model Number: U-23GD-K
Payment & Shipping Terms
Delivery Time: 5-8 days
Payment Terms: T/T
Supply Ability: 100
Product Description
GSM900 DCS1800 WCDMA2100 Signal Repeater Customized 4G 3G LTE Dual Band Mobile Phone Signal Booster
Product Overview
Advanced mobile signal booster with intelligent digital controls for enhanced cellular connectivity across multiple frequency bands.
Key Advantages
  • Digital Display Panel with intelligent mode setting
  • Smart function activation via digital display panel
  • User-selectable gain and working system via LCD Digital Panel
  • Simplified technical parameter settings - easier than DIP Switch configuration

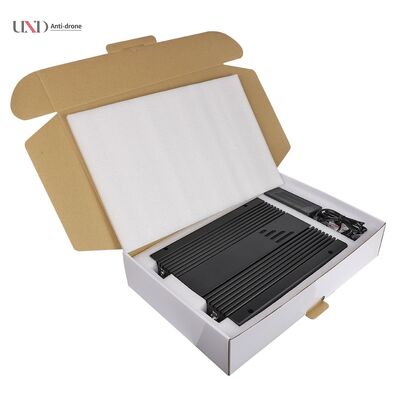

Standard Package Contents
  • AC90-264V, DC9V/5A power supply adapter (1 piece)
  • AC power cord (EU/US/UK/SA/China standard options) (1 piece)
  • Complete installation kit (1 piece)
  • User manual (1 piece)

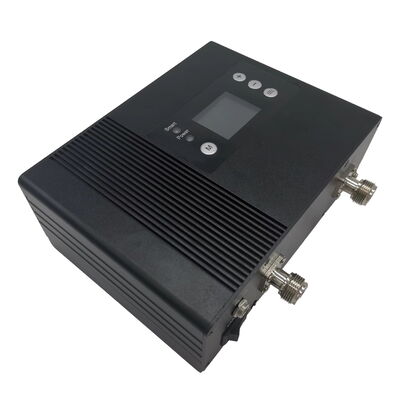

Connection Guide

BTS Port: Connect donor antenna cable to Outdoor Port

MS Port: Connect service whip antenna to Indoor Port

DC IN: Connect to Power adapter

Technical Specifications
Parameter Specification
Frequency Range GSM850MHz: 824-849MHz (Uplink), 869-894MHz (Downlink)
DCS1800MHz: 1710-1785MHz (Uplink), 1805-1880MHz (Downlink)
Gain 70dB±2dB / 75dB±2dB
Output Power 20dBm±2dBm / 23dBm±2dBm
Bandwidth Wide Band
ALC ≥ 20dB
Ripple in Band 8dB
Noise Figure ≤ 6dB
VSWR ≤ 2.0
Intermodulation Products ≤ -40dBc
Spurious Emission 9KHz~1GHz: ≤ -36dBm/30KHz
1~12.75GHz: ≤ -30dBm/30KHz
Time Delay ≤ 1.5 μs
Frequency stability ≤ 0.01ppm
MTBF > 50,000 hours
Impedance 50Ω
Power Supply AC 100-240V, DC 9V5A
Power LED Power indicator
Alarm LED Red: Self-oscillation or Strong input signal
Green: Normal operation
RF Connector N-Female
Cooling Heatsink Convection cooling
Humidity < 90%
Operating Temperature -10°C ~ +55°C
Environment Conditions IP40 (Indoor)
Installation Type Wall Installation
Size 170*127*65mm
Gross Weight 3.5KG (full set)
Dual Band GSM900 DCS1800 WCDMA2100 Signal Booster with Digital Display Panel and 70dB Gain for Enhanced Mobile Phone Signal 0
