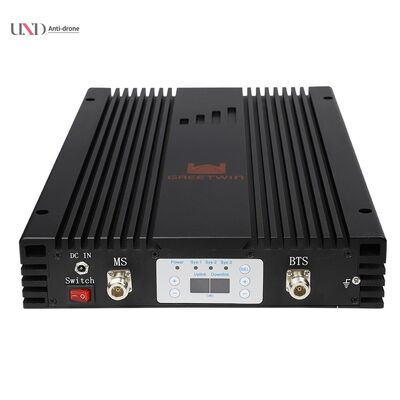

6km-12km Wide Coverage Network Repeater with 33dBm High Power and Digital Display Panel for Enhanced Mobile Phone Signal Boosting

1
MOQ
Please consult a sales engineer
Price
6km-12km Wide Coverage Network Repeater with 33dBm High Power and Digital Display Panel for Enhanced Mobile Phone Signal Boosting
Features Gallery Product Description Chat Now
Features
Specifications
Impedance: 50 Ohm
Humidity: < 90%
Operating Temperature: -10°C ~ 55°C
Dimensions: 268mm × 58mm × 189mm
Weight: 4.5Kg
Time Delay: ≤ 1.5 μs
Highlight:

6km-12km Wide Coverage Network Repeater

,

33dBm High Power Signal Booster

,

Digital Display Panel Mobile Phone Signal Booster
Basic Infomation
Place of Origin: China
Brand Name: UND
Model Number: U-33G- C
Payment & Shipping Terms
Delivery Time: 5-8 days
Payment Terms: T/T
Supply Ability: 100
Product Description
6km-12km Wide Coverage Network Repeater 33dBm High Power GSM Mobile Phone Signal Booster
Standard Package Contents
  • AC90-264V, DC9V/5A power supply adapter (1 piece)
  • AC power cord (EU/US/UK/SA/China standard, etc) (1 piece)
  • Installation kit (1 piece)
  • User manual (1 piece)
Key Advantages
Digital Display Panel - Intelligent mode setting with easy parameter configuration
Smart Function Control - Activated via digital display panel for simplified operation
LCD Digital Panel - Select gain and working system with intuitive interface
Efficient Setup - Technical parameter configuration is simpler than traditional DIP switches
Connection Guide

BTS Port: Connect donor antenna cable to Outdoor Port

MS Port: Connect service whip antenna to Indoor Port

DC IN: Connect to Power adapter

Technical Specifications
Frequency Range & Performance
System Uplink Downlink
iDEN806-824MHz851-869MHz
CDMA 800/GSM 850824-849MHz869-894MHz
GSM 900890-915MHz935-960MHz
AWS17001710-1755MHz2110-2155MHz
DCS 18001710-1785MHz1805-1880MHz
PCS 19001850-1910MHz1930-1990MHz
WCDMA/3G 21001920-1980MHz2110-2170MHz
LTE/4G 26002500-2570MHz2620-2690MHz
Performance Parameters
Parameter Specification
Maximum Gain80dB / 85dB
Maximum Output Power30dBm / 33dBm
BandwidthWide Band
Manual Gain Control31dB / 1dB Step
Automatic Gain Control>20dB
Ripple in-band≤ 6dB
Return loss≤ -10dB
Noise Figure≤ 6dB
Frequency stability≤ 0.01ppm
MTBF> 50,000 hours
Spurious Emission & Intermodulation
9KHz~1GHz≤ -36dBm
1~12.75GHz≤ -30dBm
WCDMA Specifications
Spurious Emission MaskMeet 3GPP TS 25.143 (V 6.2.0)
Modulation Accuracy≤ 12.5%
Peak Code Domain Error≤ -35dB@Spreading Factor 256
Time Delay≤ 1.5 μs
Physical & Environmental Specifications
Power SupplyAC100-240V, DC9V/5A
RF ConnectorN-Female
SwitchesPower Switch, Manual Gain Control Switch
Cooling SystemHeatsink Convection cooling
Impedance50 ohm
Humidity< 90%
Operating Temperature-10°C ~ 55°C
Environment ConditionsIP40
Dimensions268mm * 58mm * 189mm
Weight4.5Kg
