5km-8km Wide Coverage 30dBm High Power Network Repeater with Digital Display Panel Mobile Phone Signal Booster

1
MOQ
Please consult a sales engineer
Price
5km-8km Wide Coverage 30dBm High Power Network Repeater with Digital Display Panel Mobile Phone Signal Booster
Features Gallery Product Description Chat Now
Features
Specifications
Ripple In Band: 8dB
Noise Figure: ≤ 6dB
Intermodulation Products: ≤ -40dBc
Time Delay: ≤ 1.5 μs
Size: 189*268*58mm
Weight: 4Kg
Highlight:

5km-8km Wide Coverage Network Repeater

,

30dBm High Power Signal Booster

,

Digital Display Panel Mobile Phone Signal Booster
Basic Infomation
Place of Origin: China
Brand Name: UND
Model Number: U-30C-C
Payment & Shipping Terms
Delivery Time: 5-8 days
Payment Terms: T/T
Supply Ability: 100
Product Description
5km-8km Wide Coverage Network Repeater 30dBm High Power Network Repeater 800/850 CDMA Mobile Phone Signal Booster
Standard Package Contents
  • AC90-264V, DC9V/5A power supply adapter (1 piece)
  • AC power cord (EU/US/UK/SA/China standard, etc) (1 piece)
  • Installation kit (1 piece)
  • User manual (1 piece)
Key Features & Advantages

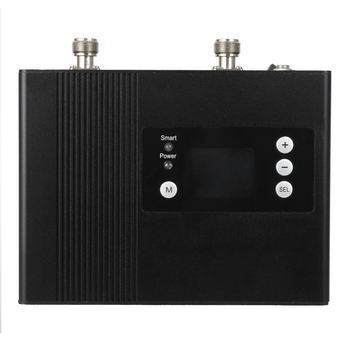

• Digital Display Panel with intelligent mode setting
• Smart function activation via digital display panel
• User-selectable gain and working system via LCD Digital Panel
• Simplified technical parameter settings - easier than DIP Switch configuration

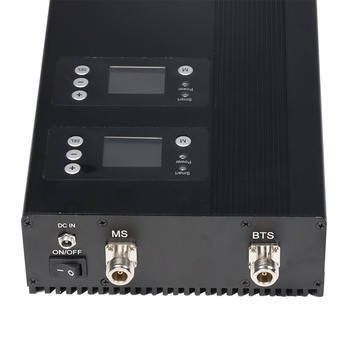

Connection Guide
• BTS Port: Connect donor antenna cable to Outdoor Port
• MS Port: Connect service whip antenna to Indoor Port
• DC IN: Connect to Power adapter
Technical Specifications
Parameter Specification
Frequency Range CDMA 800:
Uplink: 830-840MHz
Downlink: 875-885MHz
Gain 80dB±2dB / 85dB±2dB
Output Power 27dBm±2dBm / 30dBm±2dBm
Band Width Wide Band
Manual Gain Control 31dB / 1dB Step
ALC ≥ 20dB
Ripple in Band 8dB
Noise Figure ≤ 6dB
VSWR ≤ 2.0
Intermodulation Products ≤ -40dBc
Spurious Emission 9KHz~1GHz: ≤ -36dBm/30KHz
1~12.75GHz: ≤ -30dBm/30KHz
Time Delay ≤ 1.5 μs
Frequency Stability ≤ 0.01ppm
MTBF > 50,000 hours
Impedance 50Ω
Power Supply AC 90-264V, DC 10V/10A
RF Connector N-Female
Cooling Heatsink Convection cooling
Operating Temperature -10°C ~ +55°C
Environment Conditions IP40 (Indoor)
Installation Type Wall Installation
Size 189*268*58mm
Weight 4Kg
LED Indicators
• Power LED: Power indicator
• Alarm LED: Red (Self oscillation or Strong input signal), Green (Normal)
5km-8km Wide Coverage 30dBm High Power Network Repeater with Digital Display Panel Mobile Phone Signal Booster 0
