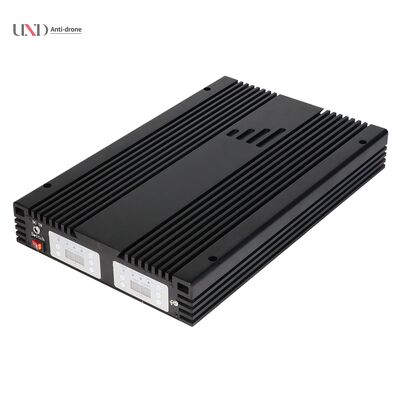

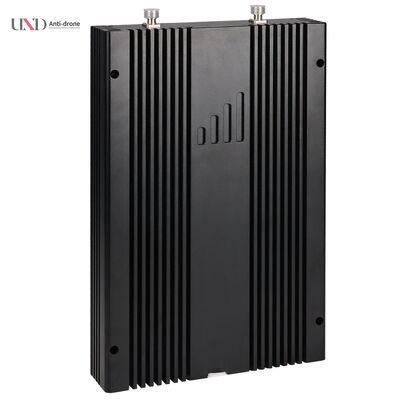

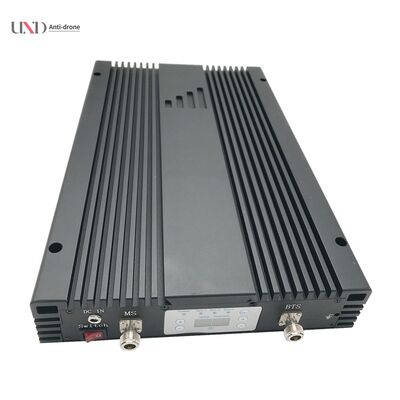

3G Network 30dBm Output Power Mobile Repeater Signal Booster for 300-1500sqm Coverage

1
MOQ
Please consult a sales engineer
Price
3G Network 30dBm Output Power Mobile Repeater Signal Booster for 300-1500sqm Coverage
Features Gallery Product Description Chat Now
Features
Specifications
Type: Single Band Booster
Coverage Area: 300-1500 Square Meters
Gain: 80.0dB
Antennas: 2x2.0dBi External Antennas
Network Compatibility: 2G, 3G, 4G, GSM, LTE
Color: Black
Highlight:

3G Network Signal Booster

,

30dBm Output Power Mobile Repeater

,

300-1500sqm Coverage Cell Phone Signal Amplifier

Basic Infomation
Place of Origin: China
Brand Name: UND
Model Number: U-30W
Payment & Shipping Terms
Delivery Time: 5-8 days
Payment Terms: T/T
Supply Ability: 100
Product Description
3G 30dBm Cell Phone Mobile Repeater Signal Booster
The Indoor Pico Repeater (Signal Booster) series provides an ideal solution for small/medium businesses and home users seeking enhanced indoor wireless connectivity. This system connects via coaxial cable to donor and service antennas, with the donor antenna positioned outside the building for optimal BTS signal access and the service antenna placed indoors to extend radio coverage to blind areas.
Key Features
  • Smart Function: Intelligent mode setting prevents UL interference and self-oscillation caused by insufficient antenna isolation. Automatically configures parameters for optimal performance with simple front panel activation.
  • Uplink Silent Function: Automatically closes PA when not in use, reducing interference to base stations while maintaining -90dBm uplink signal sensitivity.
  • Antenna Isolation Testing: Built-in detection automatically tests transceiver antenna isolation upon startup and adjusts gain to prevent self-oscillation while protecting base station equipment.
Standard Package Includes
  • AC90-264V, DC9V/5A power supply adapter (1 piece)
  • AC power cord (EU/US/UK/SA/China standard)
  • Installation kit
  • User manual
Recommended Accessories
  • Donor antenna: Log Periodic Antenna (9dBi@806-960/1710-2700MHz)
  • Service antenna: Omni Ceiling Antenna (3dBi@806-960/1710-2700MHz)
  • 5D-FB coaxial cable with connector (cable length optional)
Applications
Expands signal coverage and fills signal blind areas where signal is weak or unavailable. Ideal for hotels, homes, basements, shopping malls, offices, parking lots, and other indoor environments.
3G Network 30dBm Output Power Mobile Repeater Signal Booster for 300-1500sqm Coverage 0
Technical Specifications
Model Number U-30W
Brand Name UND
Type Single band booster
Place of Origin China, Xi'an
Network Compatibility 2G, 3G, 4G, GSM, LTE
Coverage Area 300-1500 square meters
Transmission Rate ≤ -36dBm
Antennas 2x2.0dBi external antennas
Gain 80.0dB
Packaging & Delivery
Professional, environmentally friendly, convenient and efficient packaging services ensure the safe delivery of your goods.
