Home /Products/Signal Booster/23dBm Output Power 1500sqm Coverage 700MHz Band Support Signal Booster and Mobile Signal Repeater

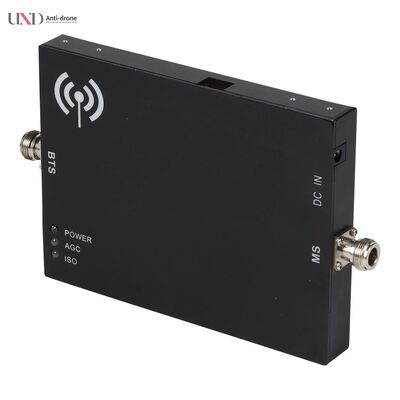

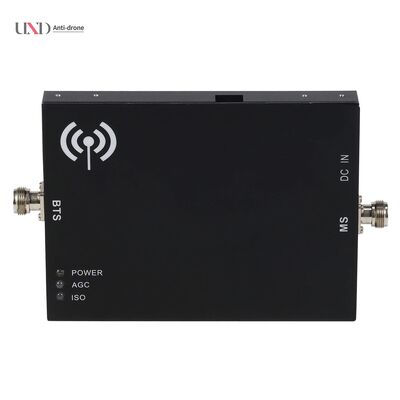

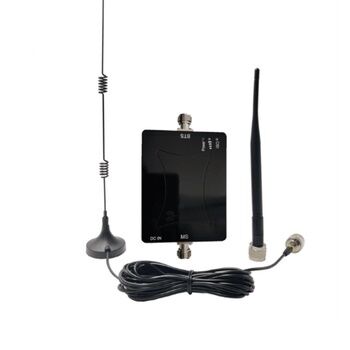

23dBm Output Power 1500sqm Coverage 700MHz Band Support Signal Booster and Mobile Signal Repeater

1
MOQ
Please consult a sales engineer
Price
23dBm Output Power 1500sqm Coverage 700MHz Band Support Signal Booster and Mobile Signal Repeater
Features Gallery Product Description Chat Now
Features
Specifications
Type: Single Band Booster
Coverage Area: 500-1500 Sqm
Transmission Rate: 9KHz~1GHz
Gain: 75.0db
Network Compatibility: LTE, 2G, 4G, 3G
Antennas: 2x2.0dbi External Antennas
Highlight:

23dBm Output Power Signal Booster

,

1500sqm Coverage Mobile Signal Repeater

,

700MHz Band Support Cell Phone Signal Amplifier
Basic Infomation
Place of Origin: China
Brand Name: UND
Model Number: U-23L-H
Payment & Shipping Terms
Delivery Time: 5-8 days
Payment Terms: T/T
Supply Ability: 100
Product Description
4G Wireless Cell Phone 23dBm 1500sqm Repeater Signal Booster
The Indoor Signal Booster series provides an ideal solution for small to medium businesses and home users seeking enhanced indoor wireless connectivity. The system connects via coaxial cable between the Donor Antenna (placed outside for optimal BTS signal access) and Service Antenna (positioned indoors to extend coverage to blind areas).
Key Features
  • Cost-effective solution for weak signal zones that reduces dropped calls
  • Compact design with low power consumption and easy installation
  • Expands and extends base station signal coverage
  • Optimizes signal quality and source reliability
  • Covers approximately 500-1500 m² without obstruction
  • High linear design with ALC function minimizes interference to BTS
  • Supports all cellular devices (voice, data, and video)
  • Available as wide band signal booster or customizable selective band booster
  • Includes antenna isolation testing to prevent oscillation
  • Compatible with multiple network standards including CDMA450, LTE700, LTE800, iDEN, CDMA800/GSM850, GSM900, EGSM, AWS1700, DCS1800, PCS1900, WCDMA, LTE2600
Standard Package Contents
  • AC90-264V, DC9V/3A power supply adapter (1 piece)
  • AC power cord (EU/US/UK/SA/China standard, etc.) (1 piece)
  • Installation kit (1 piece)
  • User manual (1 piece)
Recommended Accessories
  • Donor antenna: Log Periodic Antenna (9dBi, 806-960/1710-2700MHz)
  • Service antenna: Omni Ceiling Antenna (3dBi, 806-960/1710-2700MHz)
  • 5D-FB coaxial cable with connector (cable length optional)
Applications
Expands signal coverage and fills signal blind areas where wireless signals are weak or unavailable. Ideal for indoor environments including hotels, homes, basements, shopping malls, offices, and parking lots.
Technical Specifications
Model Number U-23L-H
Brand Name UND
Type Single Band Booster
Place of Origin Xi'an, China
Network Compatibility LTE, 2G, 4G, 3G
Coverage Area 500-1500 sqm
Transmission Rate 9KHz~1GHz
Antennas 2x2.0dbi external antennas
Gain 75.0db
