Home /Products/Signal Booster/30dBm High Power Network Repeater with 5km-8km Wide Coverage for DCS 1800 2100 2600 Mobile Phone Signal Booster

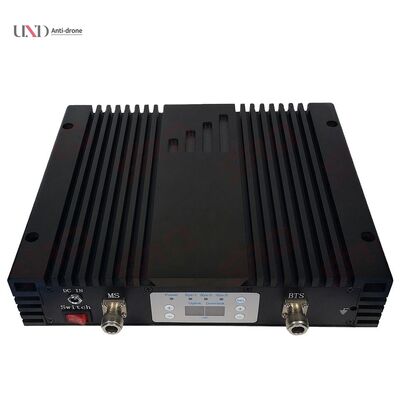

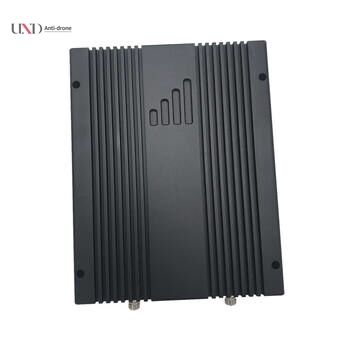

30dBm High Power Network Repeater with 5km-8km Wide Coverage for DCS 1800 2100 2600 Mobile Phone Signal Booster

1
MOQ
Please consult a sales engineer
Price
30dBm High Power Network Repeater with 5km-8km Wide Coverage for DCS 1800 2100 2600 Mobile Phone Signal Booster
Features Gallery Product Description Chat Now
Features
Specifications
Operating Temperature: -10°C To 55°C
Environment Conditions: IP40
Humidity: < 90%
Impedance: 50 Ohm
Size: 268mm × 58mm × 189mm
Weight: 4Kg
Highlight:

30dBm High Power Network Repeater

,

5km-8km Wide Coverage Signal Booster

,

DCS 1800 2100 2600 Mobile Phone Signal Booster
Basic Infomation
Place of Origin: China
Brand Name: UND
Model Number: U-30D-C
Payment & Shipping Terms
Delivery Time: 5-8 days
Payment Terms: T/T
Supply Ability: 100
Product Description
30dBm High Power Network Repeater
5km-8km Wide Coverage Network Repeater for DCS 1800, 2100, 2600 Mobile Phone Signal Boosting
Technical Specifications
Frequency Range Parameters
System Uplink Downlink
iDEN806-824MHz851-869MHz
CDMA 800/GSM 850824-849MHz869-894MHz
GSM 900890-915MHz935-960MHz
AWS17001710-1755MHz2110-2155MHz
DCS 18001710-1785MHz1805-1880MHz
PCS 19001850-1910MHz1930-1990MHz
WCDMA/3G 21001920-1980MHz2110-2170MHz
LTE/4G 26002500-2570MHz2620-2690MHz
Performance Specifications
Max. Gain75dB / 80dB
Max. Output Power27dBm / 30dBm
Band WidthWide Band
Manual Gain Control31dB / 1dB Step
Automatic Gain Control>20dB
Ripple In-band≤ 6dB
Return Loss≤ -10dB
Noise Figure≤ 6dB
Spurious Emission & Intermodulation9KHz~1GHz: ≤ -36dBm
1~12.75GHz: ≤ -30dBm
WCDMA Spurious Emission MaskMeet 3GPP TS 25.143 (V 6.2.0)
Modulation Accuracy≤ 12.5%
Peak Code Domain Error≤ -35dB@Spreading Factor 256
Time Delay≤ 1.5 μs
Frequency Stability≤ 0.01ppm
MTBF> 50,000 hours
Electrical & Mechanical Specifications
Power SupplyAC100-240V, DC9V/5A
Power LEDPower Indicator
Alarm LEDRed: Autoexcitation or High Power
Green: Standard
RF ConnectorN-Female
SwitchesPower Switch, Manual Gain Control Switch
CoolingHeatsink Convection Cooling
Impedance50 ohm
Humidity< 90%
Operating Temperature-10°C to 55°C
Environment ConditionsIP40
Size268mm * 58mm * 189mm
Weight4Kg
Product Advantages
  • Digital Display Panel with Intelligent Mode Setting
  • Smart Function Activation via Digital Display Panel
  • Gain and Working System Selection via LCD Digital Panel
  • Simple and Efficient Technical Parameter Setup - Easier than DIP Switch

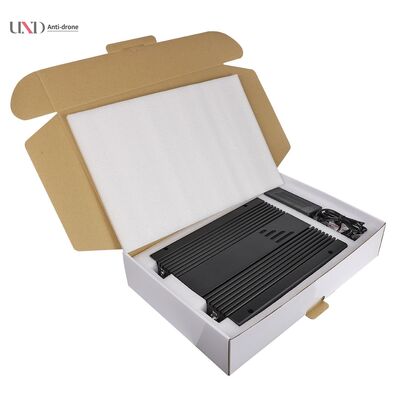

Standard Package Contents
  • AC90-264V, DC9V/5A Power Supply Adapter (1 Piece)
  • AC Power Cord (EU/US/UK/SA/China Standard, etc.) (1 Piece)
  • Installation Kit (1 Piece)
  • User Manual (1 Piece)
Connection Guide
  • BTS Port: Donor antenna cable connects to Outdoor Port
  • MS Port: Service whip antenna connects to Indoor Port
  • DC IN: Connect to Power Adapter
30dBm High Power Network Repeater with 5km-8km Wide Coverage for DCS 1800 2100 2600 Mobile Phone Signal Booster 0
