Home /Products/Signal Booster/20dBm Output Power 70dB Gain LCD Digital Smart Screen Signal Booster Phone Repeater for Enhanced Network Coverage

20dBm Output Power 70dB Gain LCD Digital Smart Screen Signal Booster Phone Repeater for Enhanced Network Coverage

1
MOQ
Please consult a sales engineer
Price
20dBm Output Power 70dB Gain LCD Digital Smart Screen Signal Booster Phone Repeater for Enhanced Network Coverage
Features Gallery Product Description Chat Now
Features
Specifications
Coverage Area: 500-1000 Sqm
Gain: 70dB
Output Power: 20dBm
Dimensions: 224×170×65mm
Weight: 3.5kg
Intermodulation: ≤-40dBc
Highlight:

20dBm Output Power Signal Booster

,

70dB Gain Phone Repeater

,

LCD Digital Smart Screen Network Repeater
Basic Infomation
Place of Origin: China
Brand Name: UND
Model Number: U-20GDW-K
Payment & Shipping Terms
Delivery Time: 5-8 days
Payment Terms: T/T
Supply Ability: 100
Product Description
2G 3G 4G 5G Trip Band Signal Amplifier LCD AGC MGC ALC Display 20dBm Phone Repeater Signal Booster
Manufacturer Profile

Xi'an Unuodi Intelligent Technology Co., Ltd. specializes in the design, research, development, and production of power amplifier modules and communication solutions. We serve global operators and integrators with customized 2G/3G/4G/5G signal amplifiers that enhance network performance and call clarity.

Global Deployment

Our solutions have been successfully deployed in over 60 countries across Southeast Asia, Asia, Africa, Europe, South America, and the Middle East.

Technical Specifications
Model Number U-20GDW-K
Brand Name UND
Type 4G Signal Booster
Place of Origin China, Xi'an
Network Support 2G/3G/4G/GSM/DCS/WCDMA
Frequency Bands 900+1800+2100/800+1800+2100
Coverage Area 500-1000 sqm
Gain 70dB
Output Power 20dBm
Dimensions 224*170*65mm
Weight 3.5kg
Power Supply AC 90-264V, DC 10V/6A
Connector Type N-Female
Ripple in Band ≤8dB
Intermodulation ≤-40dBc
Advanced Features
  • 31dB Adjustable Gain Switch
  • ALC (Automatic Level Control)
  • AGC (Automatic Gain Control)
  • MGC (Manual Gain Control)
  • LCD Digital Smart Screen Display

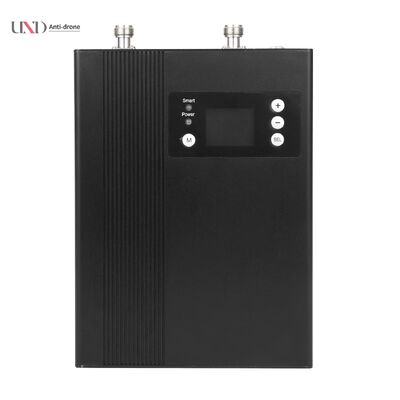

Product Image
20dBm Output Power 70dB Gain LCD Digital Smart Screen Signal Booster Phone Repeater for Enhanced Network Coverage 0
Customization & Services

We offer comprehensive OEM/ODM services with output power customizable from 0.01W to 20W. Our amplifiers support diverse frequencies including TETRA, LTE700, CDMA800, GSM900, DCS1800/1900, CDMA2000, CDMA450, 3G (WCDMA), LTE2300, LTE2600, TDD-LTE, and 5G (IMT-2020).

Tag:

Cell Phone Signal Amplifier

Mobile Phone Signal Amplifiers

Mobile Phone Signal Boosters
