600W Manpack Jammer Radio Frequency Luggage Case Portable Bomb

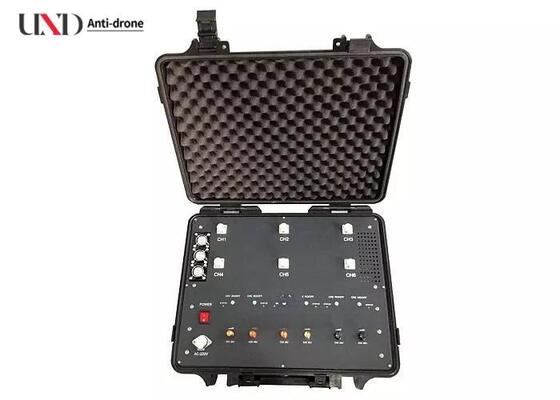

The U-VIP JAM6 Portable Bomb 600W Manpack Jammer is a high-performance radio frequency jamming system designed for military RCIED disposal and VIP protection. This briefcase-style jammer creates a secure "Radio Frequency Protected Zone" to prevent remote-controlled bomb activation and information leakage during confidential operations.
System Overview
This wide-band portable jamming system effectively jams CDMA, GSM, DCS, 3G, WCDMA, WiFi, and GPS frequencies. It's specifically engineered to disable radio-controlled improvised explosive device (RCIED) control lines in dangerous areas, providing critical protection for military personnel, dignitaries, and secure facilities.
Key Advantages
- High-power multi-band jammer with Frequency Scan technology
- Modular construction for easy maintenance, repair, and upgrades
- Capable of jamming up to six different frequency bands simultaneously
- Maximum 600 watts total RF output power
- Dual power options: AC mains or DC power
- Systematic Smart Cooling System for optimal performance
- Military-grade design and construction
- Independent frequency band control via individual switches
- Power amplifier protection design ensures reliable operation
Applications
Bomb disposal squads, VIP protection teams, Special Police (S.W.A.T), military security forces, anti-terror units, anti-drug units, border control personnel, and checkpoint security teams.
Technical Specifications
Customizable Frequency Options: AM, FM Radio, VHF, UHF, 450MHz, iDEN, CDMA, GSM, GPRS, DCS, PCS, AWS, WCDMA, LTE 700, LTE 800, LTE 2300, LTE 2600, GPS, Galileo, Compass, Glonass, WiFi, WiMAX, UAV, drone, and more.
| Output Interface |
Description |
Shield Band Frequency |
RF Output Power |
| CH1 |
CDMA800 |
851-894 MHz |
50dBm |
| CH2 |
WCDMA 3G |
2110-2170 MHz |
50dBm |
| CH3 |
GSM900 |
925-960 MHz |
50dBm |
| CH4 |
GSM1800 / PCS 1900 |
1805-1880 MHz / 1930-1990 MHz |
50dBm |
| CH5 |
WiFi, 2.4G (Optional) |
2400-2485 MHz |
50dBm |
| CH5 |
LTE800 (Optional) |
790-821 MHz |
50dBm |
| CH6 |
GPS L1 (Optional) |
1570-1580 MHz |
50dBm |
| CH6 |
LTE 2600 (Optional) |
2620-2690 MHz |
50dBm |
Power Supply: AC220V, DC24V
Total Output Power: 600W
Power Consumption: 1800W
Weight: 35Kg
Dimensions: 580 * 280 * 410mm
Humidity: 30%-95%
Operating Temperature: -20°C to +55°C
Jammer Modules: 6
Cooling System: Systematic Smart Cooling System
System Protection: VSWR, Over-voltage
Jamming Source: Frequency Scan Technology
Antenna Type: High Gain Omni-directional Antennas
Number of Antennas: 6
External Battery (Optional): 24V DC
Jamming Range: 50-500m (depending on mobile network signal density)
