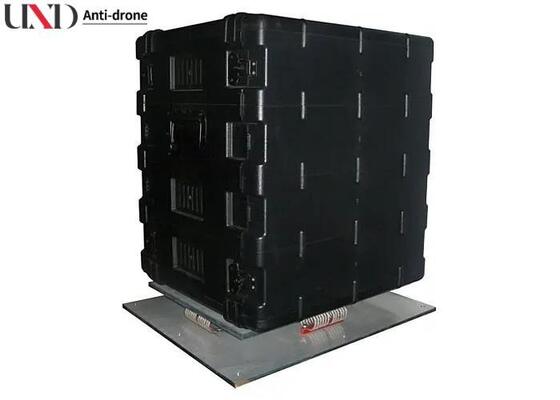

Water Resistance Drone RF Jammer with 630 Watts Output Power and 360° Protection for Convoy Bomb Jamming

1
MOQ
Please consult a sales engineer
harga
Water Resistance Drone RF Jammer with 630 Watts Output Power and 360° Protection for Convoy Bomb Jamming
fitur Galeri Deskripsi Produk Quote request suatu
fitur
Spesifikasi
Konsumsi Daya: 2400W
Berat host: 86KG
Dimensi tuan rumah: 625×500×700 mm (P×T×L)
Kisaran kelembaban: 30%-95%
Suhu Operasional: -20 hingga +55°C
Radius macet: 50-500M (tergantung lingkungan)
Menyoroti:

Water Resistance Drone RF Jammer

,

630 Watts Output Power Vehicle Mounted Jammer

,

360° Protection Convoy Bomb Jammer
Informasi dasar
Tempat asal: Cina
Nama merek: UND
Nomor model: U-2700VJ13
Syarat-syarat pembayaran & pengiriman
Waktu pengiriman: 5-8 hari
Syarat-syarat pembayaran: T/T
Menyediakan kemampuan: 100
Deskripsi Produk
Water Resistant RF Convoy Bomb RC Drone Jammer
The VIP Digital RF Jammer is engineered for blocking remote controlled improvised explosive devices used by terrorists. This vehicle-mounted counter-IED system provides comprehensive protection with advanced jamming capabilities.
System Overview
The Convoy Bomb Jammer's operating system can be fully controlled from the driver's seat to ensure optimal user experience. Our vehicle-mounted counter-IED jammers provide 360° protection, enabling comprehensive security for entire convoys. These systems are essential for VIP protection during high-profile events and secure transportation.
Key Features
  • Ultra-broadband frequency coverage: 20-2700MHz
  • Continuous and simultaneous jamming across all frequency bands
  • Shockproof case design for enhanced mobility
  • Military and international government approved
  • Optional integrated back-up battery system for continuous operation
  • Independent "smart active" cooling system
  • Remote control unit for covert system management
  • Individual on/off switches for each frequency band
  • Special RF protection shielding for passenger and VIP safety
  • Proven deployment at major international events including Olympic Games
  • High-power RF transmission for extensive coverage distance
Technical Specifications
Parameter Specification
Output Power 630 Watts
Internal Modulation FM Hopping Frequency
Signal Source VCO Synthesized
Power Supply AC110-240V, 24V or 48V DC
Modules Per Unit 13
Control ON/OFF with Switch
Remote Control Wired remote with adjustable output power
Antenna External Omni-directional for 360° coverage
Power Amplifier Protection Full VSWR protector
Operating Hours Unlimited
Jamming Radius 50-500M (environment dependent)
Power Consumption 2400W
Host Weight 86Kg
Host Dimensions 625*500*700 mm (L*H*W)
Humidity Range 30%-95%
Operating Temperature -20 to +55°C
Frequency Channel Specifications
Channel Frequency Range Output Power
CH1 20-200 MHz 47 dBm
CH2 200-500MHz 47 dBm
CH3 136-174MHz 47 dBm
CH4 420-460MHz 47 dBm
CH5 851-894MHz 47 dBm
CH6 925-960MHz 47 dBm
CH7 1570-1580MHz 47 dBm
CH8 1805-1880MHz 47 dBm
CH9 1930-1990MHz 47 dBm
CH10 2110-2170MHz 47 dBm
CH11 2400-2500MHz 47 dBm
CH12 2620-2690MHz 47 dBm
CH13 460-470MHz 47 dBm
Applications
  • Prevent activation of remote controlled improvised explosive devices
  • Protect explosives handling experts and bomb disposal teams
  • Secure important locations including transportation hubs, public spaces, and event venues
  • Risk mitigation and explosives removal operations
  • Police operations for VIP convoy protection, anti-drug missions, and riot control
  • Military applications for border control and tactical operations
Primary User Groups
• Special Military Units
• Special Police Units
• VIP Protection Details
• Bomb Disposal Teams
• Convoy Protection Units
