Rumah /Produk/penguat sinyal/Dual Band WCDMA2100 GSM900 Signal Booster with Digital Display Panel and 70dB Gain for Enhanced Cell Phone Signal

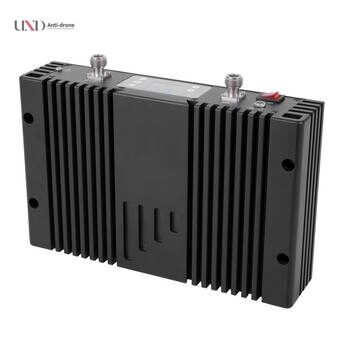

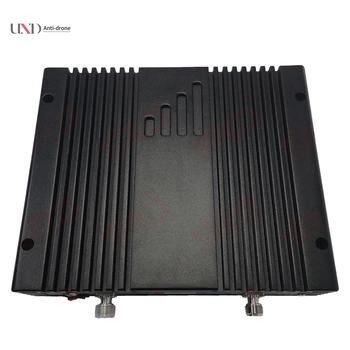

Dual Band WCDMA2100 GSM900 Signal Booster with Digital Display Panel and 70dB Gain for Enhanced Cell Phone Signal

1
MOQ
Please consult a sales engineer
harga
Dual Band WCDMA2100 GSM900 Signal Booster with Digital Display Panel and 70dB Gain for Enhanced Cell Phone Signal
fitur Galeri Deskripsi Produk Quote request suatu
fitur
Spesifikasi
Kelembaban: < 90%
Suhu Operasional: -10°C ~ +55°C
Berat: 4.5kg
Tipe Instalasi: Pemasangan dinding
Impedansi: 50Ω
Ukuran: 189×268×58mm
Menyoroti:

Dual Band WCDMA2100 GSM900 Signal Booster

,

Digital Display Panel Signal Booster

,

70dB Gain Signal Booster
Informasi dasar
Tempat asal: Cina
Nama merek: UND
Nomor model: U-23GW-C
Syarat-syarat pembayaran & pengiriman
Waktu pengiriman: 5-8 hari
Syarat-syarat pembayaran: T/T
Menyediakan kemampuan: 100
Deskripsi Produk
Super Market Underground Parking Dual Band WCDMA2100 GSM900 Signal Amplifier Repeater
Customized cell phone signal booster designed for underground parking facilities in supermarkets and commercial buildings.
Key Advantages
Digital Display Panel with intelligent mode setting
Smart functions activated via digital display panel
User-selectable gain and working system via LCD Digital Panel
Simple and efficient technical parameter setup - easier than DIP Switch
Standard Package Contents
AC90-264V, DC9V/5A power supply adapter (1 piece)
AC power cord (EU/US/UK/SA/China standard, etc.) (1 piece)
Installation kit (1 piece)
User manual (1 piece)

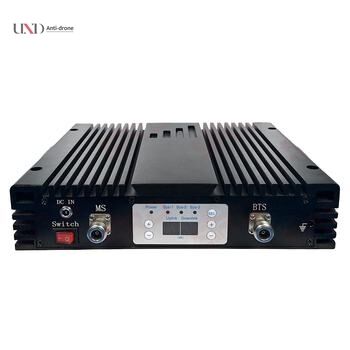

Connection Guide
BTS Port: Connect donor antenna cable to Outdoor Port
MS Port: Connect service whip antenna to Indoor Port
DC IN: Connect to Power adapter
Technical Specifications
Frequency Range
System Uplink Downlink
GSM 900 890-915 MHz 935-960 MHz
WCDMA 2100 1920-1980 MHz 2110-2170 MHz
Performance Parameters
Gain 70dB±2dB / 75dB±2dB
Output Power 20dBm±2dBm / 23dBm±2dBm
Band Width Wide Band
Manual Gain Control 31dB / 1dB Step
ALC ≥ 20dB
Ripple in Band 8dB
Noise Figure ≤ 6dB
VSWR ≤ 2.0
Intermodulation Products ≤ -40dBc
Spurious Emission 9KHz~1GHz: ≤ -36dBm/30KHz
1~12.75GHz: ≤ -30dBm/30KHz
Time Delay ≤ 1.5 μs
Frequency Stability ≤ 0.01ppm
MTBF > 50,000 hours
Impedance 50Ω
Power & Electrical
Power Supply AC 90-264V, DC 10V/10A
Power LED Power indicator
Alarm LED Red: Self oscillation or Strong input signal
Green: Normal
Mechanical Specifications
RF Connector N-Female
Switch Power Switch
Cooling Heatsink Convection cooling
Humidity < 90%
Operating Temperature -10°C ~ +55°C
Environment Conditions IP40 (Indoor)
Installation Type Wall Installation
Size 189 * 268 * 58mm
Weight 4.5Kg
Dual Band WCDMA2100 GSM900 Signal Booster with Digital Display Panel and 70dB Gain for Enhanced Cell Phone Signal 0
