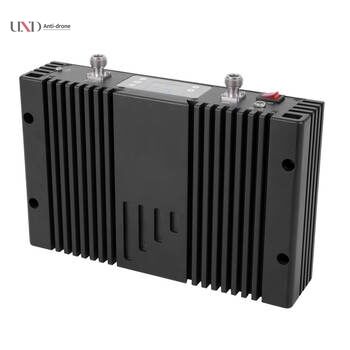

Dual Band GSM900 DCS1800 WCDMA2100 Signal Booster with 20dBm Output Power and Digital Display Panel

1
MOQ
Please consult a sales engineer
harga
Dual Band GSM900 DCS1800 WCDMA2100 Signal Booster with 20dBm Output Power and Digital Display Panel
fitur Galeri Deskripsi Produk Quote request suatu
fitur
Spesifikasi
ALC: ≥ 20dB
Angka Kebisingan: ≤ 6dB
Produk Intermodulasi: ≤ -40dBc
Penundaan Waktu: ≤ 1,5 mikrodetik
Impedansi: 50Ω
Berat Kotor dengan set lengkap: 3,5kg
Menyoroti:

20dBm Output Power Signal Booster

,

Dual Band Signal Repeater

,

Digital Display Panel Mobile Phone Signal Booster
Informasi dasar
Tempat asal: Cina
Nama merek: UND
Nomor model: U-20GW-K
Syarat-syarat pembayaran & pengiriman
Waktu pengiriman: 5-8 hari
Syarat-syarat pembayaran: T/T
Menyediakan kemampuan: 100
Deskripsi Produk
GSM900 DCS1800 WCDMA2100 Signal Repeater Customized Dual Band 20dBm Mobile Phone Signal Booster
Key Advantages
  • Digital Display Panel with intelligent mode setting
  • Smart function activation via digital display panel
  • User-selectable gain and working system through LCD Digital Panel
  • Simple and efficient technical parameter setup - easier than DIP Switch
Standard Package Contents
  • AC90-264V, DC9V/5A power supply adapter (1 piece)
  • AC power cord (EU/US/UK/SA/China standard, etc) (1 piece)
  • Installation kit (1 piece)
  • User manual (1 piece)
Connection Guide
BTS Port: donor antenna cable connects to Outdoor Port
MS Port: service whip antenna connects to Indoor Port
DC IN: connects to Power adapter
Technical Specifications
Parameter Uplink Downlink
GSM900MHz Frequency Range 880-915MHz 925-960MHz
WCDMA2100MHz Frequency Range 1920-1980MHz 2110-2170MHz
Gain 65dB±2dB 70dB±2dB
Output Power 17dBm±2dBm 20dBm±2dBm
Bandwidth Wide Band
ALC ≥ 20dB
Ripple in Band 8dB
Noise Figure ≤ 6dB
VSWR ≤ 2.0
Intermodulation Products ≤ -40dBc
Spurious Emission 9KHz~1GHz: ≤ -36dBm/30KHz
1~12.75GHz: ≤ -30dBm/30KHz
Time Delay ≤ 1.5 μs
Frequency stability ≤ 0.01ppm
MTBF > 50000 hours
Impedance 50Ω
Power Supply AC 100-240V, DC 9V5A
Mechanical & Environmental Specifications
RF Connector N-Female
Cooling Heatsink Convection cooling
Humidity < 90%
Operating Temperature -10°C ~ +55°C
Environment Conditions IP40 (Indoor)
Installation Type Wall Installation
Size 170*127*65mm
Gross Weight with full set 3.5KG
Indicator Lights
Power LED: Power indicator
Alarm LED:
Red: Self-oscillation or Strong input signal
Green: Normal operation
Dual Band GSM900 DCS1800 WCDMA2100 Signal Booster with 20dBm Output Power and Digital Display Panel 0
