Miniaturized GPS Signal Amplifier Lightweight Anti Jamming System With 6 Interference Rejection

1
MOQ
Please consult a sales engineer
harga
Miniaturized GPS Signal Amplifier Lightweight Anti Jamming System With 6 Interference Rejection
fitur Galeri Deskripsi Produk Quote request suatu
fitur
Spesifikasi
Frekuensi Operasi: B1I: 1561.098MHz; L1/B1C: 1575.42MHz
Resistensi Interferensi: SIR interferensi tunggal: ≥95dB, SIR interferensi tiga kali lipat: ≥85dB
Akurasi Pemosisian (Dengan gangguan): Horisontal ≤10m (95%), Ketinggian ≤10m (95%)
Tegangan Operasi: 5-17V
Konsumsi Daya: ≤6w
Akurasi waktu: ≤100ns (95%)
Menyoroti:

Miniaturized GPS Signal Amplifier

,

GPS Signal Amplifier Lightweight

,

Lightweight Anti Jamming System
Informasi dasar
Tempat asal: Cina
Nama merek: UND
Nomor model: S65-4CH-SNB
Syarat-syarat pembayaran & pengiriman
Waktu pengiriman: 5-8 hari
Syarat-syarat pembayaran: T/T
Menyediakan kemampuan: 100
Deskripsi Produk
Miniaturized and Lightweight GPS Signal Amplifier with 6-Interference Rejection and BDS+GPS+GLONASS+GALILEO Support for UAV Anti-Jamming
Product Overview
This miniaturized satellite navigation anti-interference all-in-one device is designed for civil UAVs and industrial applications. It supports multiple satellite systems including BDS, GPS, GLONASS, and GALILEO, featuring broadband interference resistance capable of countering up to 6 simultaneous interference sources.
Key Features
  • Multi-system compatibility: BDS + GPS + GLONASS + GALILEO
  • Advanced anti-jamming technology with broadband interference resistance
  • Compact, lightweight design with integrated antenna arrays
  • Cost-effective solution for civil UAV and industrial applications
  • Integrated anti-interference components and satellite navigation receivers
Technical Specifications
Parameter Specifications
Operating Frequency B1I: 1561.098MHz; L1/B1C: 1575.42MHz
Interference Resistance Single-interference SIR: ≥95dB, Triple-interference SIR: ≥85dB
Positioning Accuracy (No interference) Horizontal ≤1.5m (95%), Elevation ≤1.5m (95%)
Positioning Accuracy (With interference) Horizontal ≤10m (95%), Elevation ≤10m (95%)
Velocity Accuracy ≤0.2m/s (95%)
Timing Accuracy ≤100ns (95%)
Operating Voltage 5-17V
Power Consumption ≤6W

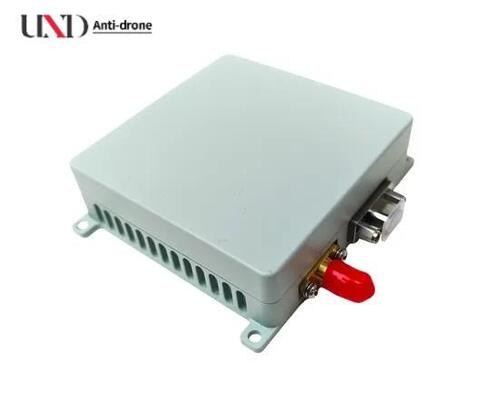

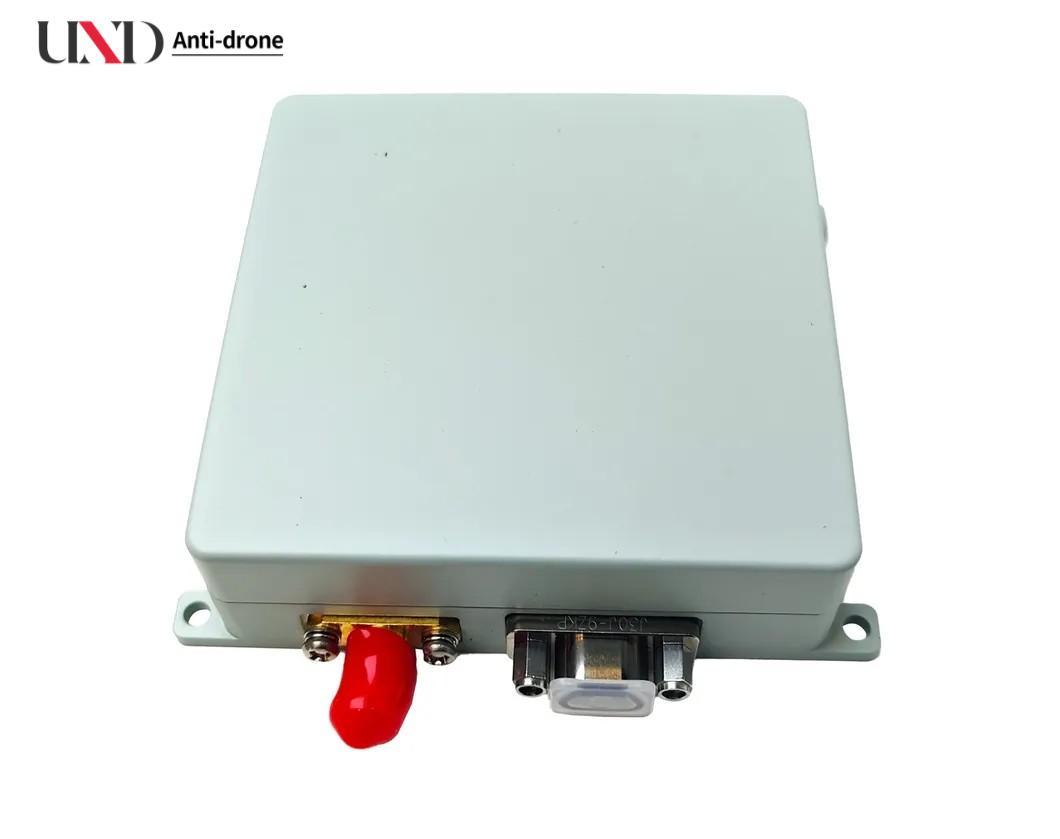

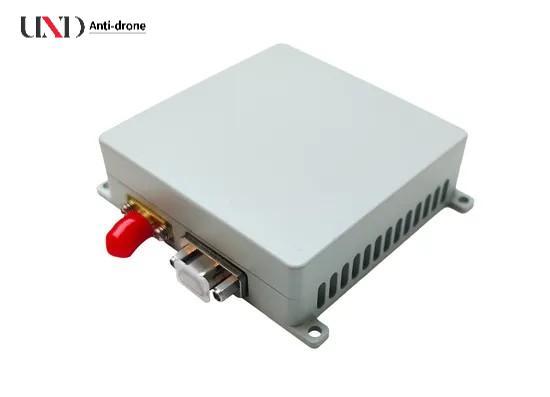

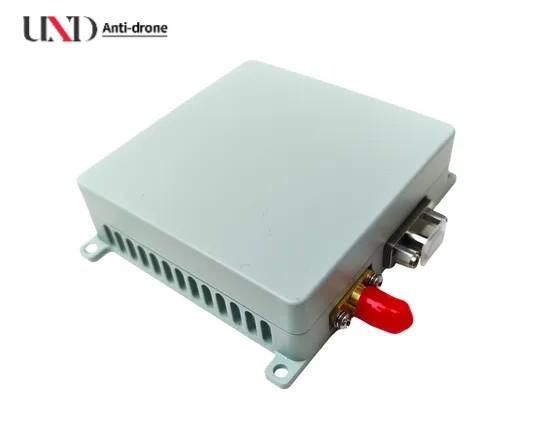

Product Image
Miniaturized GPS Signal Amplifier Lightweight Anti Jamming System With 6 Interference Rejection 0
