| Number | Items | Specifications |
|---|---|---|
| 1 | Frequency Range | 2400-2500MHz | 5150-5350MHz/5725-5850MHz |
| 2 | Max Output Power | 43dBm(20W) | 43dBm(20W) |
| 3 | Antenna Gain | 15dB±1 | 18dB±1 |
| 4 | Battery Capacity | 5000mAh/16.8V |
| 5 | Receiving Gain | 12dB±1 | 15dB±1 |
| 6 | Transmission Gain | 20dB±1 | 20dB±1 |
| 7 | Input Trigger Power | Min:3dBm Max:23dBm | Min:3dBm Max:23dBm |
| 8 | EVM | 3%@33dBm 802.11g 54Mbps OFDM 64QAM BW 20MHz | 3%@33dBm 802.11g 54Mbps OFDM 64QAM BW 20MHz |
| 9 | Noise Figure | <2.2dB | <2.2dB |
| 10 | Current Supply | 3.2A@Pout 43dBm 16.8V | 3.2A@Pout 43dBm 16.8V |
| 11 | TX/RX Switch Time Delay | <1 us |
| 12 | Charging Voltage | 16.8V/3A |
| 13 | Working Time | 6 Hours |
| 14 | Water Proof | IP68 |

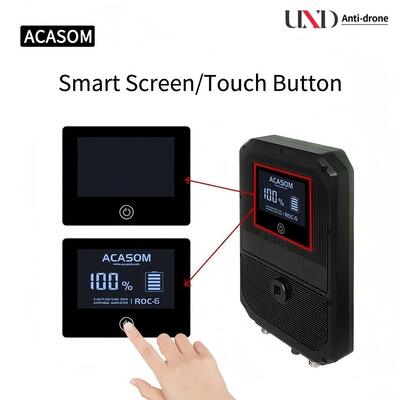

| 15 | Battery Capacity Tester | LCD Screen |
| 16 | Charging Port | IP68 Aviation Plug |
| 17 | RF Connector | N-Female |
| 18 | Operating Temperature | 30ºC~+70ºC |
| 19 | Storage Temperature | -40ºC~+150ºC |
| 20 | Operating Humidity | Up to 95% rel. humidity |

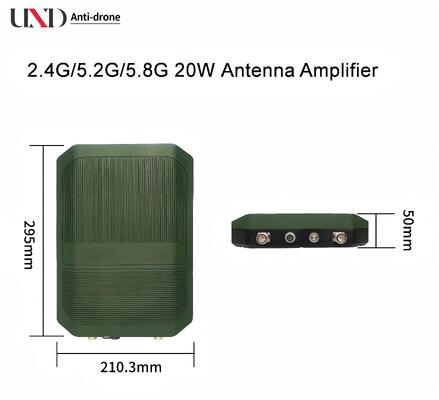

| 21 | Shell Size | 295*210*50(mm) |
| 22 | Shell Material | Aluminum |
| 23 | Net Weight | 2.0kg |
