ホーム /製品/ドローン探知装置/3km Range Drone Detection Equipment 100MHz - 6GHz Drone Signal Detector

3km Range Drone Detection Equipment 100MHz - 6GHz Drone Signal Detector

1
MOQ
Please consult a sales engineer
価格
3km Range Drone Detection Equipment 100MHz - 6GHz Drone Signal Detector
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
名前: ドローン検知装置
検出周波数帯域: 100MHz-6GHz
検出半径: 1.5～2km (都市環境) / 2～3km (オープンスペース環境)
応答時間: 3-5秒
方向範囲: 1～2km (都市環境) / 2～3km (オープンスペース環境)
検出能力: 同時に10台のドローン
操作の持続期間: 3～4時間
ハイライト:

3km Range Drone Detection Equipmen

,

Drone Detection Equipment 100MHz

,

6GHz Drone Signal Detector
基本情報
起源の場所: 中国
ブランド名: UND
モデル番号: U-H2LP
お支払配送条件
受渡し時間: 5～8日
支払条件: T/T
供給の能力: 100
製品の説明

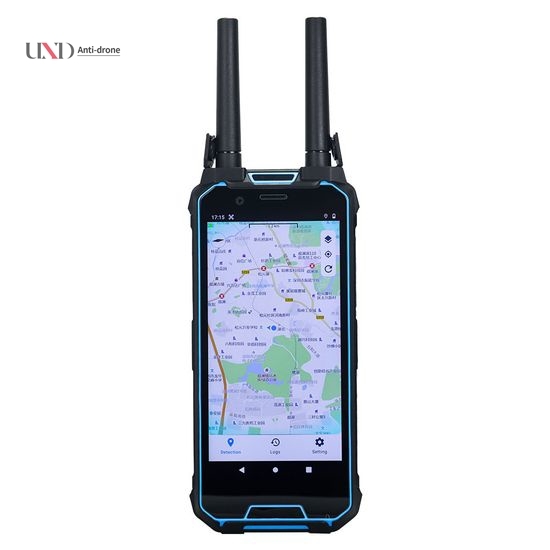

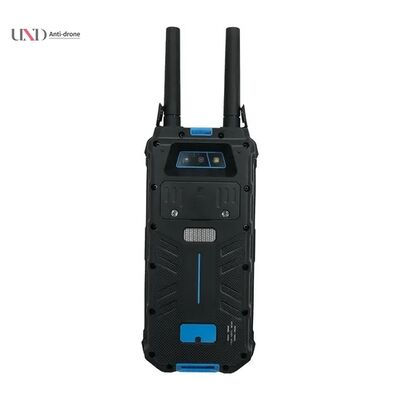

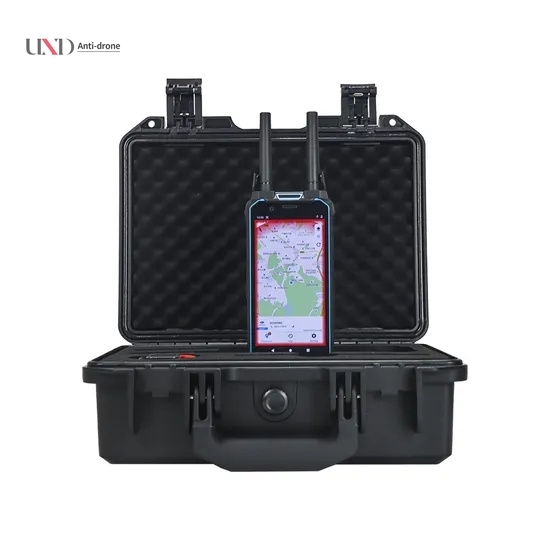

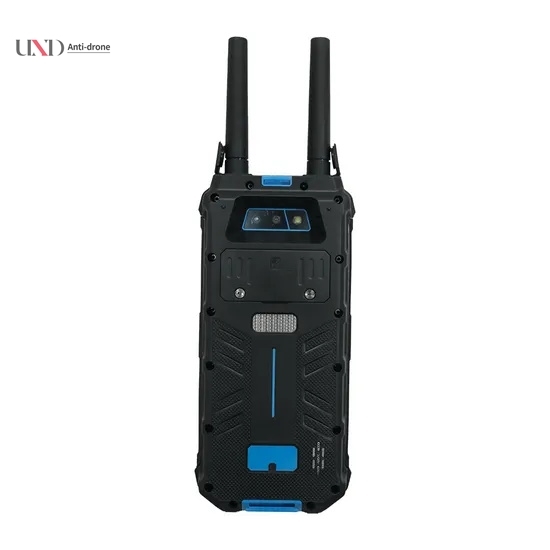

Portable 650g 100MHz-6GHz Drone Detector with 3km Detection Range for UAV Signal Locator
Portable Drone Signal Detection & Positioning System
The U-H2L is a portable, single-use device that integrates comprehensive drone monitoring functions including spectrum detection, protocol analysis, and RID identification. It provides real-time detection and early warning for over 700 types of drones, with accurate location tracking of both drones and their pilots (remote control systems). The system effectively monitors and warns about custom-built drones while providing real-time analysis of their flight footage.
Featuring a compact and lightweight design, the device is easy to carry and offers extended battery life, making it ideal for low-altitude security operations across various scenarios.
Product Functions
  • UAV Positioning: Single unit can locate drone positions, displayed as "UAV icons" on the electronic map interface
  • Pilot Positioning: Locates remote control (pilot) positions, presented as "remote control icons" on the electronic map
  • Detection & Identification: Spectrum detection capability recognizes DJI, Dow Tong, and other common models, plus custom-built drones, WiFi drones, and various other models
  • FPV Detection: Detects and identifies custom-built drones while analyzing first-person perspective flight footage in real-time
Product Characteristics
  • Passive Detection: No electromagnetic pollution, environmentally friendly, high concealment
  • Large Touch Screen: 6-inch touch screen design for easy operation and quick response
  • Mobile Portability: Weighs only 650g for easy handheld operation, ready for immediate use
  • Standard Charging Interface: Type-C charging port compatible with external power adapters or mobile power supplies
Technical Specifications
Model U-H2LP Handheld UAV Detection and Positioning Equipment
Detection Frequency Band 100MHz-6GHz
Detection Radius 1.5-2km (urban environment) / 2-3km (open space environment)
Response Time 3-5 seconds
Orientation Range 1-2km (urban environment) / 2-3km (open space environment)
Detection Capacity 10 drones simultaneously
Operation Duration 3-4 hours
3km Range Drone Detection Equipment 100MHz - 6GHz Drone Signal Detector 0
