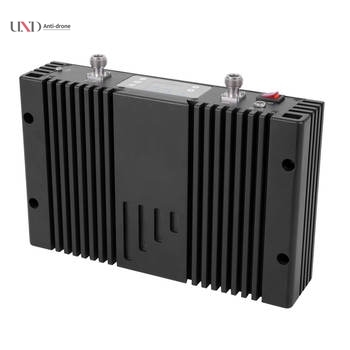

DCS1800 GSM900 Dual Band 20dBm Output Power Signal Booster with Digital Display Panel

1
MOQ
Please consult a sales engineer
Price
DCS1800 GSM900 Dual Band 20dBm Output Power Signal Booster with Digital Display Panel
Features Gallery Product Description Chat Now
Features
Specifications
ALC: ≥ 20dB
Noise Figure: ≤ 6dB
Intermodulation Products: ≤ -40dBc
Frequency Stability: ≤ 0.01ppm
Impedance: 50Ω
MTBF: > 50000 Hours
Highlight:

20dBm Output Power Signal Booster

,

Dual Band Signal Repeater

,

Digital Display Panel Mobile Phone Signal Booster
Basic Infomation
Place of Origin: China
Brand Name: UND
Model Number: U-20GD-K
Payment & Shipping Terms
Delivery Time: 5-8 days
Payment Terms: T/T
Supply Ability: 100
Product Description
DCS1800 GSM900 Signal Repeater - Customized Dual Band 20dBm Mobile Phone Signal Booster
Key Advantages

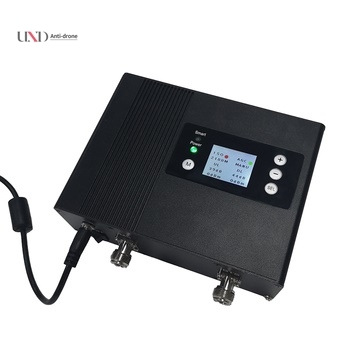

  • Digital Display Panel with intelligent mode setting
  • Smart functions activated via digital display panel
  • Adjustable gain and working system selection via LCD Digital Panel
  • Simplified technical parameter configuration - easier than DIP Switch

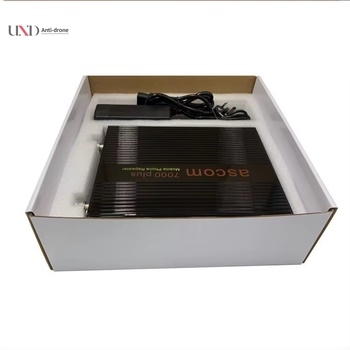

Standard Package Contents
  • AC90-264V, DC9V/5A power supply adapter (1 piece)
  • AC power cord (EU/US/UK/SA/China standard, etc) (1 piece)
  • Installation kit (1 piece)
  • User manual (1 piece)
Connection Guide
  • BTS Port: Connect donor antenna cable to Outdoor Port
  • MS Port: Connect service whip antenna to Indoor Port
  • DC IN: Connect to Power adapter
Technical Specifications
Parameter Uplink Downlink
Frequency Range - GSM850MHz 824-849MHz 869-894MHz
Frequency Range - DCS1800MHz 1710-1785MHz 1805-1880MHz
Gain 65dB±2dB 70dB±2dB
Output Power 17dBm±2dBm 20dBm±2dBm
Bandwidth Wide Band
ALC ≥ 20dB
Ripple in Band 8dB
Noise Figure ≤ 6dB
VSWR ≤ 2.0
Intermodulation Products ≤ -40dBc
Spurious Emission (9KHz~1GHz) ≤ -36dBm/30KHz
Spurious Emission (1~12.75GHz) ≤ -30dBm/30KHz
Time Delay ≤ 1.5 μs
Frequency stability ≤ 0.01ppm
MTBF > 50000 hours
Impedance 50Ω
Power Supply AC 100-240V, DC 9V5A
Mechanical Specifications
  • RF Connector: N-Female
  • Cooling: Heatsink Convection cooling
  • Humidity: < 90%
  • Operating Temperature: -10°C ~ +55°C
  • Environment Conditions: IP40 (Indoor)
  • Installation Type: Wall Installation
  • Size: 170*127*65mm
  • Gross Weight with full set: 3.5KG
Indicator Lights
  • Power LED: Power indicator
  • Alarm LED - Red: Self-oscillation or Strong input signal
  • Alarm LED - Green: Normal operation
