Thermal Imaging Drone Jammer High Definition Anti Jamming System Integrated

1
MOQ
Please consult a sales engineer
Precio
Thermal Imaging Drone Jammer High Definition Anti Jamming System Integrated
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Paquete de transporte: Paquete de aleación de aluminio
Capacidad de producción: 10000 piezas/año
Rango de detección: Entre 1 y 3 km.
Especificación: bloqueador de prisión
Origen: Porcelana
Marca: WaveSonics
Resaltar:

Thermal Imaging Drone Jammer

,

High Definition Anti Jamming System

,

Anti Jamming System Integrated
Información básica
Lugar de origen: Porcelana
Nombre de la marca: UND
Pago y Envío Términos
Tiempo de entrega: 5-8 días
Condiciones de pago: T/T
Capacidad de la fuente: 100
Descripción de producto

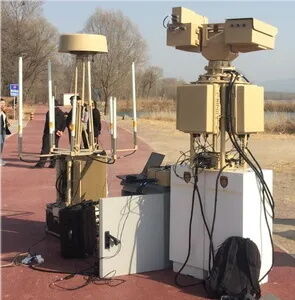

High Definition Thermal Imaging Drone Jammer with 3km Detection Range and RF Neutralization Anti-drone System
Our integrated anti-drone solution provides comprehensive drone defense protection through a unique and flexible approach. The system combines RF sensor passive detection, radar active surveillance, EO/IR tracking, and RF neutralization to protect against unauthorized drone intrusions.
R&D Background
As low-cost, highly capable drones continue to evolve, they present new security challenges. Our counter-drone technology addresses these concerns with advanced detection and mitigation capabilities.
Radar Detection Subsystem
Drone detection radar provides real-time detection and monitoring with 360°/90° coverage and fast scan rates, capable of detecting drones at distances up to 1-3km with automatic tracking of multiple targets.
  • Microwave Pulse Doppler technology (C-band & S-band)
  • Detection of various moving objects including pedestrians, vehicles, and low-flying drones
  • 360°/90° real-time monitoring capabilities
  • Available for short, medium, and long-range requirements
RF Detection Subsystem
RF passive sensor detection system identifies RF transmissions related to drones, even in low-power or noisy RF conditions, providing comprehensive drone detection capabilities.
  • Detection of any drone emitting RF signals (known and unidentified)
  • 360° detection radius up to 3 kilometer diameter
  • Simultaneous detection of multiple drones during intrusion
  • Geolocation of both drone and drone controller
EO Visual and Thermal Camera Tracking
Our visual and thermal camera surveillance provides additional verification layer with high-quality imaging capabilities for day and night operations.
  • High sensitivity tracking within detection range
  • Excellent visual output for day camera and thermal imaging
  • Visual intrusion alarm capabilities
RF Neutralization Subsystem
Designed to neutralize unauthorized drone flights by interfering with control and navigation signals through targeted RF jamming.
Jamming Frequencies
Signal Type Frequency Range Effective Range
GNSS 1550-1620 MHz 3-5km
Remote Control 860-930MHz; 2400-2500MHz; 5725-5850MHz 1-3km
Optional Frequencies 5150-5350MHz; 315MHz; 433MHz Custom
  • Omnidirectional and directional antenna options available
  • Additional jamming bands can be added upon demand
Monitoring Software Center
The information processing and command center provides comprehensive control over the automatic UAV detection and defense system through intuitive interface and advanced functionality.
  • Simple, intuitive display and control of multiple subsystems
  • Microsoft Windows based platform
  • User definable alert and exclusion zones
  • Automatic selection of background maps
  • Continuous record and playback for post-event analysis
Thermal Imaging Drone Jammer High Definition Anti Jamming System Integrated 0
