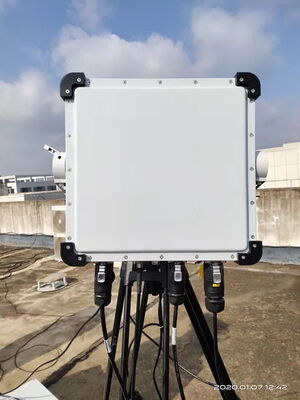

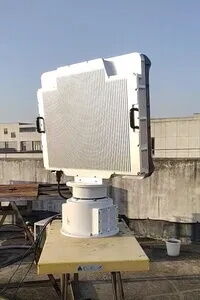

C Band Frequency Coastal Surveillance Radar with Phased Array + Pulse Doppler Technology for All-Weather Adaptability

1
MOQ
Please consult a sales engineer
fiyat
C Band Frequency Coastal Surveillance Radar with Phased Array + Pulse Doppler Technology for All-Weather Adaptability
Özellikleri Fotoğraf Galerisi Ürün Açıklaması Fiyat talebi
Özellikleri
Teknik Özellikler
Boyutlar: 324 mm x 298 mm x 86 mm
Güç kaynağı/tüketimi: AC220V/DC12V (Harici Pil)/65W
Net ağırlığı: ≤4kg
Hız hassasiyeti: ≤0,2 m/sn
Hedef Tespit Hızı: 0,2m/sn - 30m/sn
Mesafe Doğruluğu: ≤10m
Vurgulamak:

C Band Frequency Coastal Surveillance Radar

,

Phased Array + Pulse Doppler Maritime Security Radar

,

All-Weather Adaptability Vessel Monitoring Radar
Temel bilgiler
Menşe yeri: Çin
Marka adı: UND
Model numarası: U501-1C3K
Ödeme & teslimat koşulları
Teslim süresi: 5-8 gün
Ödeme koşulları: T/T
Yetenek temini: 100
Ürün Açıklaması
Coastal Surveillance Radar Systems for Borders, Coast Lines, and Critical Infrastructure
U 501-1C / C Band Coastal Surveillance Radar
The U 501-1C provides state-of-the-art protection for coastline surveillance, boat traffic management, anti-collision systems, and illegal vessel monitoring. This C-band radar system is specifically designed to detect and track water surface targets, providing immediate position and coordinate information to facilitate rapid threat response planning.
Key Features
  • High data rate with superior positioning accuracy
  • Multi-Input Multi-Output (MIMO) system architecture
  • All-weather operational capability
Applications
Coastline monitoring, port security, bridge protection, reservoir surveillance, and critical infrastructure security.
Technical Specifications
Item Specification
Working Mode Phased array + Pulse Doppler
Working Frequency C band (5.5-5.8GHz)
Detection Range > 3km (Boats)
Minimum Detection Range ≤100m
Azimuth Coverage Single panel: 90° (Dual panel: 180°, 3-panel: 270°, 4-panel: 360°)
Elevation Coverage 18°
Distance Accuracy ≤10m
Azimuth Accuracy ≤1.0°
Target Detection Speed 0.2m/s - 30m/s
Speed Precision ≤0.2m/s
Data Rate ≤1.5s
Net Weight ≤4kg
Power Supply/Consumption AC220V/DC12V (External Battery)/65W
Interface Ethernet (UDP protocol)
Dimensions 324mm x 298mm x 86mm
Working Temperature -40°C to +60°C
Working Environment Rain-proof; Dust Prevention; Sand-prevention; Moisture-proof, Mould-proof and Salt-proof
C Band Frequency Coastal Surveillance Radar with Phased Array + Pulse Doppler Technology for All-Weather Adaptability 0
Etiket:

Gözetleme Radar Sistemleri

Kıyı Radar Sistemi

Deniz gözetimi radarı
