1.2km Detection Range C Band Frequency All-Weather Adaptability Air Surveillance Radar for Drone Detection and Counter-UAV

1
MOQ
Please consult a sales engineer
fiyat
1.2km Detection Range C Band Frequency All-Weather Adaptability Air Surveillance Radar for Drone Detection and Counter-UAV
Özellikleri Fotoğraf Galerisi Ürün Açıklaması Fiyat talebi
Özellikleri
Teknik Özellikler
Çalışma Frekansı: C Bandı (5,5-5,8GHz)
Algılama Aralığı: 1,2 km (DJI Phantom 3/4, "Mavic", RCS≈0,01 metrekare)
Minimum Algılama Aralığı: ≤100m
Hedef Tespit Hızı: 0,2m/sn - 25m/sn
Güç Kaynağı: AC220V/250W
Çalışma Sıcaklığı: -40°C ila +60°C
Vurgulamak:

1.2km Detection Range Air Surveillance Radar

,

C Band Frequency Drone Detection Radar

,

All-Weather Adaptability Counter-UAV Radar
Temel bilgiler
Menşe yeri: Çin
Marka adı: UND
Model numarası: U 223-5C1K-3D / C bandı
Ödeme & teslimat koşulları
Teslim süresi: 5-8 gün
Ödeme koşulları: T/T
Yetenek temini: 100
Ürün Açıklaması
With Drone and UAV Detection Collaborative Combat Battlefield Surveillance Radar

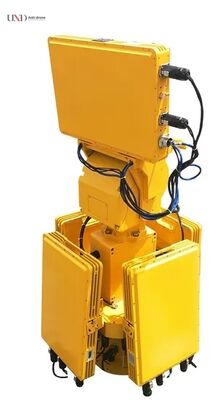

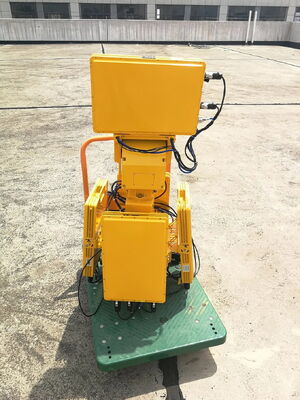

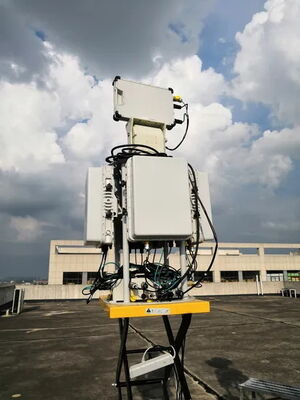

Air Surveillance Radar U 223-5C1K-3D / C Band
The U 223-5C1K-3D is a sophisticated security surveillance radar system designed specifically for detecting low-flying drones. This advanced phased array radar shares technological foundations with the U 223-1C1K model but features enhanced capabilities through its four-array configuration and integrated height finding radar for comprehensive 3D surveillance.
Key Features
  • High data rate and superior positioning accuracy
  • Multi-Input Multi-Output (MIMO) system architecture
  • All-weather operational capability
Applications
Ideal for critical security applications including airports, military bases, border areas, and other high-value locations requiring comprehensive airspace monitoring.
Technical Specifications
Item Specification
Working mode Phased array + Pulse Doppler
Working frequency C band (5.5-5.8GHz)
Detection range 1.2km (DJI Phantom 3/4, "Mavic", RCS≈0.01 square meter)
Minimum detection range ≤100m
Azimuth coverage 4-panel: 360°+ (Height Detection Radar 3D)
Elevation coverage 40°
Distance accuracy ≤10m
Azimuth Accuracy ≤1.0°
Target detection speed 0.2m/s - 25m/s
Speed precision ≤0.2m/s
Data rate ≤1.5s
Peak Output 4W/Panel
Net weight ≤70kg
Power supply AC220V/250W
Interface Ethernet (UDP protocol)
Dimension 725mm * 725mm * 735mm (2D)
725mm * 725mm * 1400mm (3D)
Working temperature -40°C to +60°C
Working Environment Rain-proof; Dust Prevention; Sand-prevention; Moisture-proof, Mould-proof and Salt-proof
