360° Azimuth Coverage Air Surveillance Radar with 1.2km Detection Range and All-Weather Adaptability for Drone Detection

1
MOQ
Please consult a sales engineer
fiyat
360° Azimuth Coverage Air Surveillance Radar with 1.2km Detection Range and All-Weather Adaptability for Drone Detection
Özellikleri Fotoğraf Galerisi Ürün Açıklaması Fiyat talebi
Özellikleri
Teknik Özellikler
Çalışma Frekansı: C Bandı (5,5-5,8GHz)
Algılama Aralığı: 1,2 km (DJI Phantom 3/4, Mavic, RCS≈0,01m²)
Azimut Doğruluğu: ≤1°
Hedef Tespit Hızı: 0,2m/sn - 25m/sn
Güç Kaynağı: AC220V/250W
Çalışma Sıcaklığı: -40°C ila +60°C
Vurgulamak:

360° azimuth coverage air surveillance radar

,

1.2km detection range drone detection radar

,

All-weather adaptability perimeter security radar
Temel bilgiler
Menşe yeri: Çin
Marka adı: UND
Model numarası: U 223-5C1K-3D / C bandı
Ödeme & teslimat koşulları
Teslim süresi: 5-8 gün
Ödeme koşulları: T/T
Yetenek temini: 100
Ürün Açıklaması

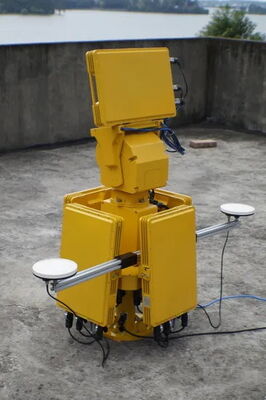

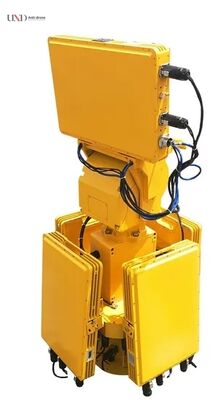

U 223-5C1K-3D Air Surveillance Radar - C Band
Advanced phased array radar system designed for comprehensive air surveillance and drone detection with 360° azimuth coverage and high tracking accuracy.
Product Overview
The U 223-5C1K-3D is a sophisticated security surveillance radar system, utilizing the same advanced technology as the U 223-1C1K model. This phased array radar delivers exceptional performance and stability specifically engineered for detecting low-flying drones and aerial threats.
Key Differentiator: While the U 223-1C1K features a single-array configuration, the U 223-5C1K-3D incorporates a four-array system with integrated height finding radar for comprehensive 3D surveillance capabilities.
Advanced Features
  • High data rate with superior positioning accuracy
  • Multi-Input Multi-Output (MIMO) system architecture
  • All-weather operational adaptability
Applications
Ideal for critical security applications including airports, military installations, border protection zones, and other high-security areas requiring comprehensive airspace monitoring.
Technical Specifications
Parameter Specification
Working Mode Phased Array + Pulse Doppler
Working Frequency C Band (5.5-5.8GHz)
Detection Range 1.2km (DJI Phantom 3/4, Mavic, RCS≈0.01m²)
Minimum Detection Range ≤100m
Azimuth Coverage 4-panel: 360° + Height Detection Radar (3D)
Elevation Coverage 40°
Distance Accuracy ≤10m
Azimuth Accuracy ≤1°
Target Detection Speed 0.2m/s - 25m/s
Speed Precision ≤0.2m/s
Data Rate ≤1.5s
Peak Output 4W/Panel
Net Weight ≤70kg
Power Supply AC220V/250W
Interface Ethernet (UDP protocol)
Dimensions 725mm × 725mm × 735mm (2D)
725mm × 725mm × 1400mm (3D)
Working Temperature -40°C to +60°C
Working Environment Rain-proof; Dust Prevention; Sand-prevention; Moisture-proof, Mould-proof and Salt-proof
