1.2km Detection Range C Band Frequency All-Weather Adaptability Air Surveillance Radar for Perimeter Security and Counter-UAV

1
MOQ
Please consult a sales engineer
fiyat
1.2km Detection Range C Band Frequency All-Weather Adaptability Air Surveillance Radar for Perimeter Security and Counter-UAV
Özellikleri Fotoğraf Galerisi Ürün Açıklaması Fiyat talebi
Özellikleri
Teknik Özellikler
Çalışma Frekansı: C Bandı (5,5-5,8GHz)
Algılama Aralığı: 1,2 km (DJI Phantom 3/4, "Mavic", RCS≈0,01 metrekare)
Hedef Tespit Hızı: 0,2m/sn - 25m/sn
Tepe Çıkışı: 4W/Panel
Güç Kaynağı: AC220V/250W
Çalışma Sıcaklığı: -40°C ila +60°C
Vurgulamak:

1.2km Detection Range Air Surveillance Radar

,

C Band Frequency Perimeter Security Radar

,

All-Weather Adaptability Counter-UAV Radar
Temel bilgiler
Menşe yeri: Çin
Marka adı: UND
Model numarası: U 223-5C1K-3D / C bandı
Ödeme & teslimat koşulları
Teslim süresi: 5-8 gün
Ödeme koşulları: T/T
Yetenek temini: 100
Ürün Açıklaması
Effective Defense Against Swarm UAV Attacks: Superior Perimeter Air Surveillance Radar

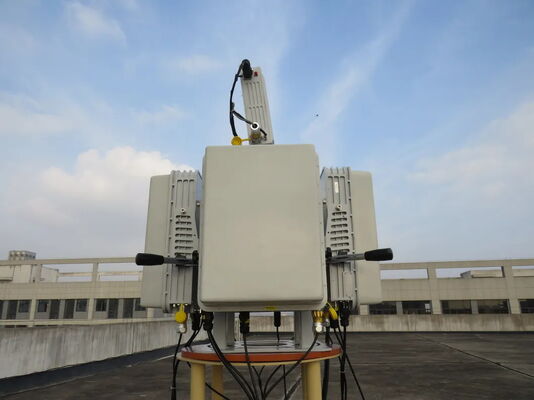

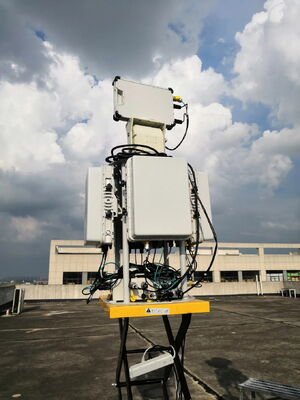

Air Surveillance Radar U 223-5C1K-3D / C Band
Advanced phased array radar system designed for superior detection of low-flying drones with enhanced perimeter security capabilities.
The U 223-5C1K-3D is a sophisticated security surveillance radar system, built on the same advanced technology platform as the U 223-1C1K phased array radar. This system delivers exceptional performance stability and reliability for detecting low-flying drone threats.
Key Differentiator: While the U 223-1C1K operates as a single-array radar, the U 223-5C1K-3D features a four-array configuration with integrated height finding radar for comprehensive 3D surveillance coverage.
Advanced System Features
  • High data rate with superior positioning accuracy
  • Multi-Input Multi-Output (MIMO) system architecture
  • All-weather operational adaptability
Primary Applications
Critical infrastructure protection including airports, military bases, border areas, and other high-security zones requiring advanced air surveillance capabilities.
Technical Specifications
Parameter Specification
Working Mode Phased Array + Pulse Doppler
Working Frequency C Band (5.5-5.8GHz)
Detection Range 1.2km (DJI Phantom 3/4, "Mavic", RCS≈0.01 square meter)
Minimum Detection Range ≤100m
Azimuth Coverage 4-panel: 360°+ (Height Detection Radar 3D)
Elevation Coverage 40°
Distance Accuracy ≤10m
Azimuth Accuracy ≤1.0°
Target Detection Speed 0.2m/s - 25m/s
Speed Precision ≤0.2m/s
Data Rate ≤1.5s
Peak Output 4W/Panel
Net Weight ≤70kg
Power Supply AC220V/250W
Interface Ethernet (UDP protocol)
Dimension 725mm * 725mm * 735mm (2D)
725mm * 725mm * 1400mm (3D)
Working Temperature -40°C to +60°C
Working Environment Rain-proof; Dust Prevention; Sand-prevention; Moisture-proof, Mould-proof and Salt-proof
