Thuis /Producten/Anti-dronesystemen/Anti-drone system with 3km detection range, 360 degree monitoring, and RF neutralization for comprehensive drone defense

Anti-drone system with 3km detection range, 360 degree monitoring, and RF neutralization for comprehensive drone defense

1
MOQ
Please consult a sales engineer
Prijs
Anti-drone system with 3km detection range, 360 degree monitoring, and RF neutralization for comprehensive drone defense
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
GNSS: 1550-1620 MHz
Bereik: Afstandsbedieningsignaal 1-3 km
Specificatie: gevangenis stoorzender
Oorsprong: China
Productiecapaciteit: 10000 stuks/jaar
Transportpakket: Verpakking van aluminiumlegering
Markeren:

3km detection range anti-drone system

,

360 degree monitoring counter UAV solution

,

RF neutralization drone defense system
Basis informatie
Plaats van herkomst: China
Merknaam: UND
Betalen & Verzenden Algemene voorwaarden
Levertijd: 5-8 dagen
Betalingscondities: T/T
Levering vermogen: 100
Productomschrijving
Drone Detection and Jamming Counter Surveillance System
Auto Counter UAVs Solution

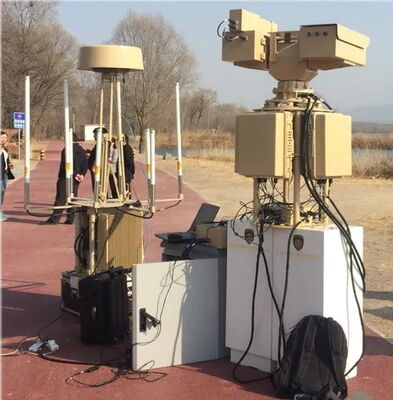

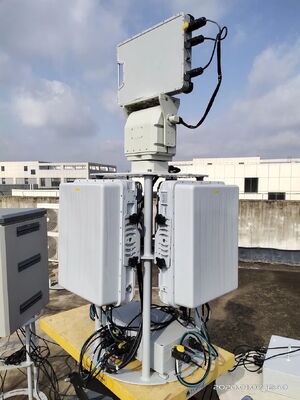

Our integrated anti-drone solution provides comprehensive drone defense protection through a unique and flexible approach. The system offers RF sensor passive detection, radar active surveillance detection, EO/IR tracking and location of multiple low-flying drones, along with mitigation capabilities via RF neutralization.
Radar Detection Subsystem
Drone detection radar provides real-time detection and monitoring with 360°/90° coverage and fast scan rates, capable of detecting drones at distances up to 1-3km with automatic detection and tracking of multiple targets.
  • Microwave Pulse Doppler technology (C-band & S-band)
  • Detection of various moving objects including pedestrians, vehicles, and low-flying drones
  • 360°/90° real-time monitoring capabilities
  • Available for short, medium, and long-range requirements
Works in combination with RF detection or neutralization systems to provide comprehensive drone detection and counteraction within protected areas.
RF Detection Subsystem
Passively detects and identifies RF transmissions related to drones, even in low-power or RF-noisy conditions, for both known and unidentified drones.
  • 360° detection radius up to 3km diameter
  • Simultaneous detection of multiple drones during intrusion
  • Geolocation of both drone and drone controller
When integrated with radar detection, provides 3D location data including flight height and air speed, triggering alerts upon drone detection.
EO Visual and Thermal Camera Tracking
Provides additional surveillance layer with day/night viewing capability through high-sensitivity tracking and excellent visual output.
  • High sensitivity tracking within detection range
  • Excellent day camera and thermal imaging output
  • Visual intrusion alarm capabilities
RF Neutralization Subsystem
Designed to neutralize unauthorized drone flights by interfering with control and navigation signals.
  • GNSS: 1550-1620 MHz
  • Remote Control Signal: 860-930MHz; 2400-2500MHz; 5725-5850MHz
  • Optional Frequencies: 5150-5350MHz; 315MHz; 433MHz
  • Omnidirectional & directional antenna options
  • Custom jamming bands available upon demand
  • Range: Remote Control Signal 1-3km; GNSS Signal 3-5km
Monitoring Software Center
Information processing and command center for automatic UAV detection and defense system, controlling all subsystems through comprehensive data management.
  • Simple, intuitive display and control of multiple subsystems
  • Microsoft Windows based platform
  • User-definable alert and exclusion zones
  • Automatic background map selection
  • Continuous recording and playback for post-event analysis
