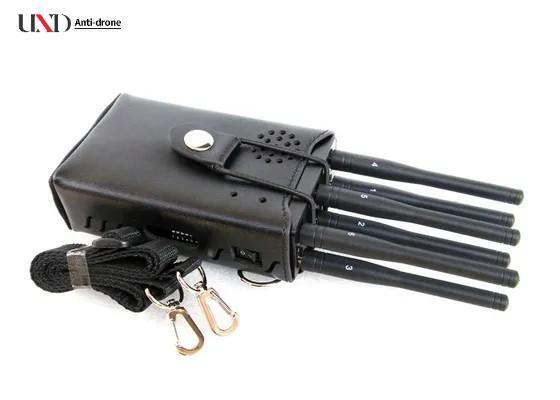

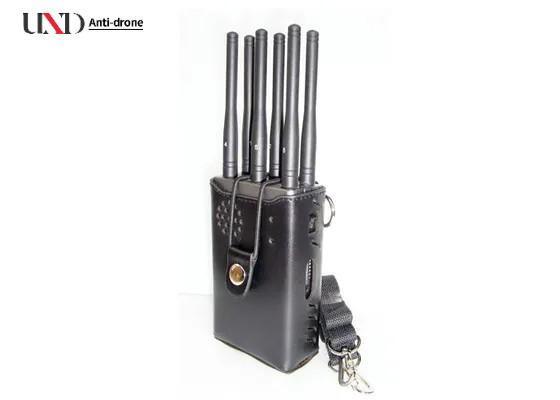

Name: 6 Antennas Cell Phone Frequency Blocker 20m 3G 4G Signal Jammer 3W For Effective Frequency Blocking
Brand: Xian Unuodi Intelligent Technology Co., Ltd.
SKU: U-006P
Availability: InStock

Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat

Eigenschaften

Technische Daten

Name: Handy-Frequenzblocker

Abmessungen: 220×202×60mm

Gewicht: 0,75 kg

Lagertemperatur: -40 ° C bis 60 ° C.

Rf-Leistungsabgabe: 3 Watt

Schutz-Radius: 2–20 m (abhängig von der örtlichen Signaldichte)

Antennentyp: Omni-Regisseur

Hervorheben:

6 Antennas Cell Phone Frequency Blocker

20m 3G 4G Signal Jammer

3G 4G Signal Jammer 3W

Grundinformation

Herkunftsort: China

Markenname: UND

Modellnummer: U-006P

Zahlung und Versand AGB

Lieferzeit: 5-8 Tage

Zahlungsbedingungen: T/T

Versorgungsmaterial-Fähigkeit: 100

Galerie

6 Antennas Cell Phone Frequency Blocker 20m 3G 4G Signal Jammer 3W For Effective Frequency Blocking

Produkt-Beschreibung

High Power 6 Antennas Portable Signal Jammer with 20m Range and 3W Output for Effective Frequency Blocking

This powerful 6-antenna portable signal jammer provides comprehensive signal blocking for 3G, 4G, WiFi, and GPS frequencies within a 20-meter radius. Designed for professional use in various environments requiring signal control.

Product Overview

The high-power 3G/4G/WiFi cell phone jammer offers flexible jamming solutions for multiple signal types. This compact unit delivers 3W output power with six powerful antennas, effectively blocking CDMA/GSM, DCS/PCS, 3G, 4G LTE, 4G Wimax, and WiFi signals.

Key Features

6-antenna portable design with comprehensive jamming coverage
Effective blocking of 2G, 3G, 4G mobile signals and WiFi 2.4G/GPS L1 bands
Total output power: 3W with jamming range up to 20 meters
External omni-directional antennas with downlink-only frequency coverage
Advanced cooling system with built-in cooling fan
Car charging capability with DC 12V input
Individual band control - turn on/off any single band without affecting others
Built-in 4000mAh battery: 4-hour charge time, 1-2 hours operation
ODM and OEM orders welcome with customizable frequency bands

Technical Specifications

Model No.	Frequency Range	Output Power	Remarks
U-006P GSM 850	850-894MHz	27dBm	Suitable for United States, Canada, Mexico, South America, Europe, Asia, Australia, Middle East, Africa
GSM 900	925-960MHz	27dBm
GSM 1800	1805-1880MHz	27dBm
GSM 1900	1920-1990MHz	27dBm
3G 2100	2110-2170MHz	27dBm
4G LTE 700	690-806MHz	27dBm
4G LTE 2600	2600MHz	27dBm
CDMA 450	430-450/460-470MHz	27dBm
WiFi 2.4G	2400-2483MHz	27dBm
Lo Jack	173.03MHz	27dBm
Optional Frequencies	GPS/GLONASS L1:1575.42MHz L2:1227.60MHz		According to customer requirements
Wireless Camera	1.2G, 2.4G
Car Remote Control	433MHz, 315MHz

General Specifications

RF Power Output: 3 Watt
Protection Radius: 2-20m (depending on local signal density)
Jammer Type: Sweep Jamming
Antenna Type: Omni-Directional
Power Source: Rechargeable Li-Lon Battery / AC adapter (100-240V AC-DC12V) and 12V car charger
Electric Field (SAR): Compatible with ICNIRP Standards (Human safe)
Operating Temperature: -20°C to 50°C
Storage Temperature: -40°C to 60°C
Dimensions: 220*202*60mm
Weight: 0.75kg

Application Areas

This signal jammer is suitable for use in meeting rooms, conference rooms, museums, galleries, theaters, concert halls, churches, temples, restaurants, classrooms, training centers, factories, banks, trains, buses, and more.

Important Notice for Special Locations

For hospitals, gas stations, and other sensitive locations, please conduct field testing first to ensure no interference with normal equipment and instrument operation.

Package Contents

Portable Signal Jammer Kit * 1pc
Power Adapter * 1pc
Car Charger * 1pc
Antenna * 6 pcs

Important Usage Notes

Jamming distances mentioned are for reference only. Actual distance varies based on signal strength, location, and battery charge level.

Do not use the jammer while charging to prevent damage. Units without cooling fans may overheat if used during charging.
