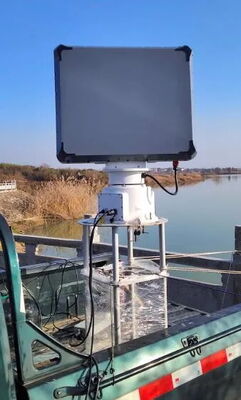

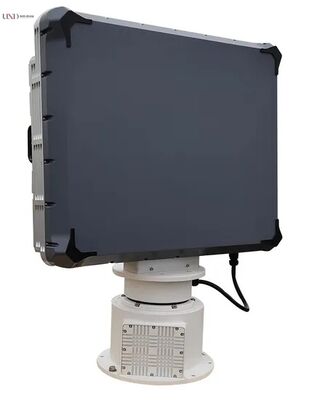

5km Detection Range S Band Frequency 360° Azimuth Coverage Air Surveillance Counter-Drone Radar

1
MOQ
Please consult a sales engineer
価格
5km Detection Range S Band Frequency 360° Azimuth Coverage Air Surveillance Counter-Drone Radar
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
動作周波数: Sバンド（2.9GHz、動作周波数5点）
検知範囲: 5 km (DJI Phantom 3/4 RCS≈0.01m²)
方位範囲: 0°~360°
消費電力: ≤250W
電源: AC220V-AC240V
使用温度: -40°C | +55°C
ハイライト:

5km Detection Range Air Surveillance Radar

,

S Band Frequency Counter-Drone Radar

,

360° Azimuth Coverage Phased Array Radar
基本情報
起源の場所: 中国
ブランド名: UND
モデル番号: U 216-1S5K-3D
お支払配送条件
受渡し時間: 5～8日
支払条件: T/T
供給の能力: 100
製品の説明
U 216R-1S5K-3D S-Band Air Surveillance Radar
The U 216R-1S5K-3D is an advanced S-band air surveillance radar system featuring automatic detection capabilities with a 5km range. Utilizing digital active phased array technology with modular, fine-tuned design, this system incorporates adaptive moving target detection, digital T/R (transmit/receive), DBF (digital beamforming), and analog-to-digital integration for exceptional detection performance, high precision, and cost-effectiveness.
This radar system accurately provides comprehensive target tracking information including azimuth, distance, altitude, and speed data. It is specifically designed for detection, warning, and target indication of micro and small civil UAVs in critical security areas such as prisons, exhibitions, and other sensitive locations.
Key Features
  • High data rate and superior positioning accuracy
  • Multi-Input Multi-Output (MIMO) system architecture
  • All-weather operational capability
Applications
Airports, border areas, and other critical security surveillance environments requiring reliable airspace monitoring and drone detection.
Technical Specifications
Working System/Mode Phased array system (Azimuth phase sweep)
Working Frequency S-band (2.9GHz; 5 operating frequency points)
Detection Range 5 km (DJI Phantom 3/4 RCS≈0.01m²)
Minimum Detection Range ≤100m
Azimuth Coverage 0°~360°
Elevation Coverage 0°~40°
Distance Accuracy ≤10m
Azimuth Accuracy ≤1.0°
Elevation Accuracy ≤1.0°
Data Rate Searching: ≤2s
Power Consumption ≤250W
Power Supply AC220V-AC240V
Net Weight ≤60kg (with PTZ)
Interface RJ45, UDP protocol
Dimensions 782mm * 695mm * 200mm (Antenna)
365mm * 365mm * 312mm (Turntable)
Working Temperature -40°C ~ +55°C
Storage Temperature -40°C ~ +65°C
Working Environment Rain-proof; Dust Prevention; Sand-prevention; Moisture-proof, Mould-proof and Salt-proof
