VIP Site Protection Omni-Directional & Directional Jammer Anti-Drone System
Our integrated anti-drone solution provides comprehensive drone defense protection through a unique and flexible approach. The system combines RF sensor passive detection, radar active surveillance, EO/IR tracking, and RF neutralization to protect against unauthorized drone intrusions.

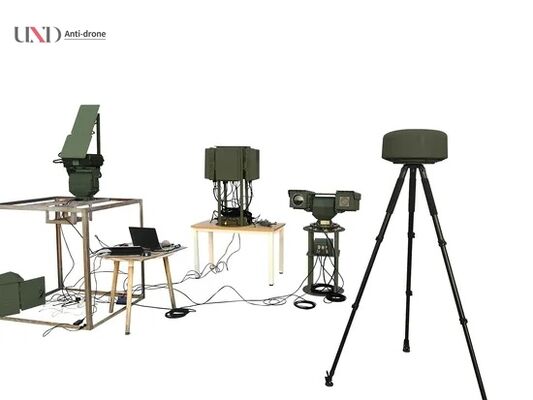

Auto Counter UAVs Solution
R&D Background: As low-cost, highly capable drones evolve rapidly, they present new security challenges. Our counter-drone technology addresses these growing concerns with comprehensive drone defense protection.
Radar Detection Subsystem
Drone Radar provides real-time detection using electromagnetic wave technology to locate and track objects. This system offers front-end monitoring with 360°/90° coverage and fast scan rates, capable of detecting drones at distances up to 1-3km.
Radar Surveillance Features:
- Microwave Pulse Doppler technology (C-band & S-band)
- Detection of various moving objects including pedestrians, vehicles, and low-flying drones
- 360°/90° real-time monitoring coverage
- Available for short, medium, and long-range requirements
RF Detection Subsystem
RF passive sensor detection system identifies RF transmissions related to drones, even in low-power or noisy RF conditions. Civil drones typically operate via radio control signals and data link transmitters.
RF Detection Capabilities:
- Detection of any drone emitting RF signals (known and unidentified)
- 360° detection radius up to 3 kilometer diameter
- Simultaneous detection of multiple intruding drones
- Geolocation of both drone and controller

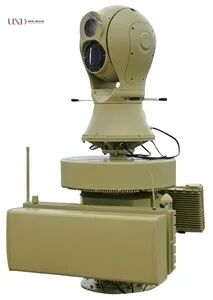

EO Visual and Thermal Camera Tracking
Our visual and thermal camera surveillance provides target viewing capability day and night, serving as an additional layer to RF/Radar detection for imaging verification.
- High sensitivity tracking within detection range
- Excellent visual output for day camera & thermal imaging
- Visual intrusion alarm system

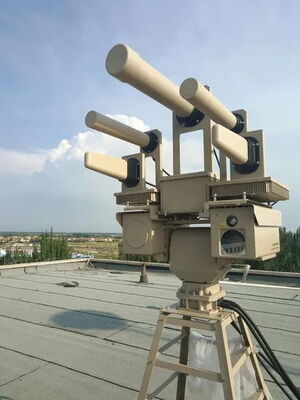

RF Neutralization Subsystem
Designed to neutralize unauthorized drone flights by interfering with control and navigation signals.
Jamming Frequency Ranges:
| Signal Type |
Frequency Range |
| GNSS |
1550-1620 MHz |
| Remote Control |
860-930MHz; 2400-2500MHz; 5725-5850MHz |
| Optional Frequencies |
5150-5350MHz; 315MHz; 433MHz |
- Omnidirectional & directional antenna options available
- Additional jamming bands can be added upon demand
- Effective range: Remote Control 1-3km; GNSS Signal 3-5km
Monitoring Software Center
The information processing and command center for automatic UAV detection and defense system, controlling all subsystems through data collection, presentation, analysis, and real-time system control.
- Simple, intuitive display and control of multiple subsystems
- Microsoft Windows based platform
- User definable alert and exclusion zones
- Automatic selection of background maps
- Continuous record and playback for post-event analysis
