Advanced Detection Capability Multi-Sensor Security Surveillance Radar with C Band Frequency for Counter-UAV Applications

1
MOQ
Please consult a sales engineer
fiyat
Advanced Detection Capability Multi-Sensor Security Surveillance Radar with C Band Frequency for Counter-UAV Applications
Özellikleri Fotoğraf Galerisi Ürün Açıklaması Fiyat talebi
Özellikleri
Teknik Özellikler
Sıklık: C Bandı (5,5-5,8GHz)
Algılama Aralığı: 1,2 km (DJI Phantom 3/4, "Mavic", RCS≈0,01 metrekare)
Yükseklik kapsamı: 40 °
Hedef Tespit Hızı: 0,2m/sn - 25m/sn
Güç Kaynağı: AC220V/250W
Çalışma Sıcaklığı: -40°C ila +60°C
Vurgulamak:

Advanced Detection Capability Air Surveillance Radar

,

Multi-Sensor System Security Surveillance Radar

,

C Band Frequency Counter-UAV Radar
Temel bilgiler
Menşe yeri: Çin
Marka adı: UND
Model numarası: U 223-5C1K-3D / C bandı
Ödeme & teslimat koşulları
Teslim süresi: 5-8 gün
Ödeme koşulları: T/T
Yetenek temini: 100
Ürün Açıklaması
With Advanced Detection Capability Multi-Sensor Security Air Surveillance Radar
Product Overview

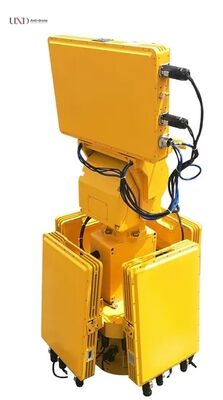

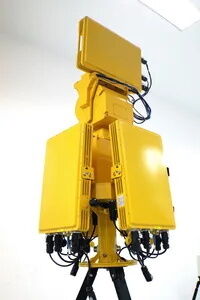

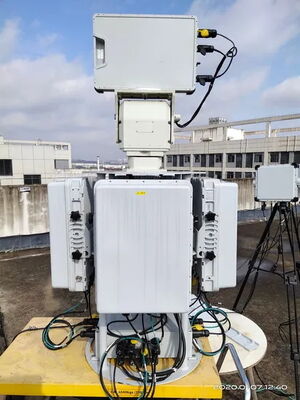

Air Surveillance Radar U 223-5C1K-3D / C band

The U 223-5C1K-3D is a sophisticated security surveillance radar system designed for advanced detection of low-flying drones. This phased array radar incorporates cutting-edge technology to deliver stable, reliable performance in critical security applications.
This model represents an enhanced version of the U 223-1C1K single-array radar, featuring a four-array configuration with integrated height finding radar for comprehensive 3D surveillance capabilities.
Key Features
  • High data rate and superior positioning accuracy
  • Multi-Input Multi-Output (MIMO) system architecture
  • All-weather operational adaptability
Applications
Ideal for security surveillance in airports, military bases, border areas, and other critical infrastructure locations requiring advanced airspace monitoring.
Technical Specifications
Parameter Specification
Working Mode Phased Array + Pulse Doppler
Frequency C band (5.5-5.8GHz)
Detection Range 1.2km (DJI Phantom 3/4, "Mavic", RCS≈0.01 square meter)
Minimum Detection Range ≤100m
Azimuth Coverage 4-panel: 360°+ (Height Detection Radar 3D)
Elevation Coverage 40°
Distance Accuracy ≤10m
Azimuth Accuracy ≤1.0°
Target Detection Speed 0.2m/s - 25m/s
Speed Precision ≤0.2m/s
Data Rate ≤1.5s
Peak Output 4W/Panel
Net Weight ≤70kg
Power Supply AC220V/250W
Interface Ethernet (UDP protocol)
Dimension 725mm × 725mm × 735mm (2D)
725mm × 725mm × 1400mm (3D)
Working Temperature -40°C to +60°C
Working Environment Rain-proof; Dust Prevention; Sand-prevention; Moisture-proof, Mould-proof and Salt-proof
