Ana sayfa /Ürünler/hava gözetleme radarı/Air Surveillance Radar with 1.2km Detection Range C Band Frequency and All-Weather Adaptability for Counter-UAV Security

Air Surveillance Radar with 1.2km Detection Range C Band Frequency and All-Weather Adaptability for Counter-UAV Security

1
MOQ
Please consult a sales engineer
fiyat
Air Surveillance Radar with 1.2km Detection Range C Band Frequency and All-Weather Adaptability for Counter-UAV Security
Özellikleri Fotoğraf Galerisi Ürün Açıklaması Fiyat talebi
Özellikleri
Teknik Özellikler
Çalışma Frekansı: C Bandı (5,5-5,8GHz)
Algılama Aralığı: 1,2 km (DJI Phantom 3/4, "Mavic", RCS≈0,01 metrekare)
Yükseklik kapsamı: 40 °
Net ağırlığı: ≤70kg
Güç Kaynağı: AC220V/250W
Çalışma Sıcaklığı: -40°C ila +60°C
Vurgulamak:

1.2km Detection Range Air Surveillance Radar

,

C Band Frequency Counter-UAV Radar

,

All-Weather Adaptability Security Surveillance Radar
Temel bilgiler
Menşe yeri: Çin
Marka adı: UND
Model numarası: U 223-5C1K-3D
Ödeme & teslimat koşulları
Teslim süresi: 5-8 gün
Ödeme koşulları: T/T
Yetenek temini: 100
Ürün Açıklaması
Air Surveillance Counter-UAV Radar Detection Distance 1km

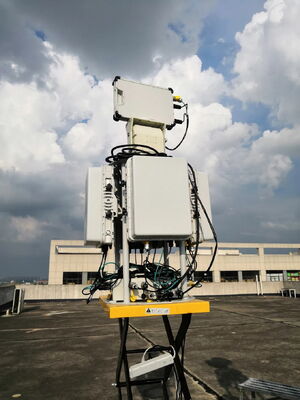

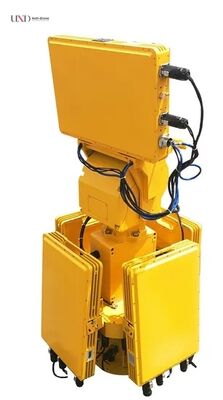

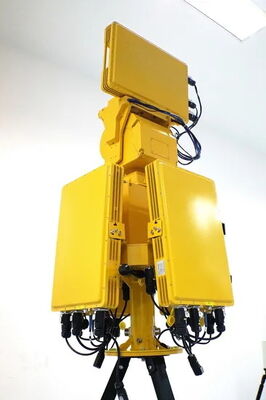

Air Surveillance Radar U 223-5C1K-3D / C band

The U 223-5C1K-3D is a sophisticated security surveillance radar system, utilizing the same advanced technology as the U 223-1C1K model. This phased array radar is specifically engineered for the reliable detection of low-flying drones with exceptional stability and performance.

While the U 223-1C1K features a single-array configuration, the U 223-5C1K-3D incorporates a four-array design and is additionally equipped with height finding radar capabilities for comprehensive 3D surveillance.

Key Features
  • High data rate and superior positioning accuracy
  • Multi-Input Multi-Output (MIMO) system architecture
  • All-weather operational adaptability
Applications
Security surveillance for airports, military bases, border areas, and other critical infrastructure locations.
Technical Specifications
Item Specification
Working mode Phased array + Pulse Doppler
Working frequency C band (5.5-5.8GHz)
Detection range 1.2km (DJI Phantom 3/4, "Mavic", RCS≈0.01 square meter)
Minimum detection range ≤100m
Azimuth coverage 4-panel: 360°+ (Height Detection Radar 3D)
Elevation coverage 40°
Distance accuracy ≤10m
Azimuth Accuracy ≤1.0°
Target detection speed 0.2m/s - 25m/s
Speed precision ≤0.2m/s
Data rate ≤1.5s
Peak Output 4W/Panel
Net weight ≤70kg
Power supply AC220V/250W
Interface Ethernet (UDP protocol)
Dimension 725mm * 725mm * 735mm (2D)
725mm * 725mm * 1400mm (3D)
Working temperature -40°C to +60°C
Working Environment Rain-proof; Dust Prevention; Sand-prevention; Moisture-proof, Mould-proof and Salt-proof
Air Surveillance Radar with 1.2km Detection Range C Band Frequency and All-Weather Adaptability for Counter-UAV Security 0
