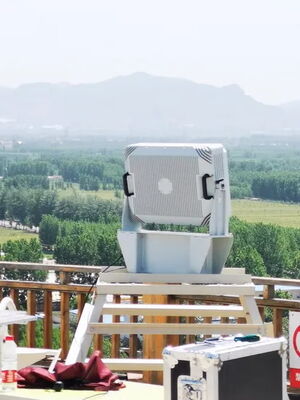

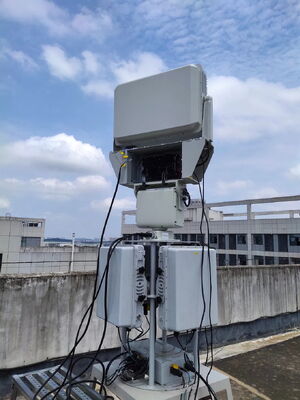

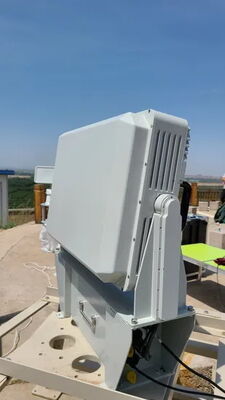

Digital Multibeam Border & Civil Security Surveillance Ground Radar
Ground Surveillance Radar U 216-1S / S Band
The U216-1S operates in S-band and utilizes advanced digital active phased array technology. Through modular, precision design and integrated application of adaptive moving target detection, digital T/R (transmit/receive), and DBF (digital beamforming) technologies, this radar delivers stable detection performance, high precision, and cost-effectiveness. It serves as an exceptional ground moving target detection system for critical monitoring areas, providing real-time, accurate, and continuous target information for surveillance systems.
Technical Highlights
- All-digital active phased array technology system with DBF technology
- Digital T/R technology and highly integrated RF/digital design
- Adaptive moving target detection and Doppler clutter suppression
- Stabilization tracking technology for ground moving targets
Key Features
Advanced Technology
The U216-1S radar employs a phased array system with one-dimensional phase sweep, enabling electrical scanning in azimuth for flexible, fast beam pointing without inertia. It supports non-uniform detection with customized detection schemes for different regions to optimize overall performance. The software-based radar design offers strong expandability and online upgrade capabilities.
Superior Detection Capability
With Doppler filtering system based on phased array technology, the U216-1S eliminates clutter spectrum diffusion caused by antenna scanning modulation. It supports long-term online configuration with enhanced clutter suppression, enabling effective detection and tracking of low-speed moving targets in strong clutter environments.
High Reliability
The radar operates without mechanical rotating equipment, eliminating failures due to mechanical or electrical issues. Unlike single-channel parabolic radars, the phased array system works with multiple parallel channels, maintaining normal operation even if some channels fail, ensuring mission reliability.
Easy Installation & Operation
Modular design ensures simple structure and easy installation without rotating joints, adaptable to various installation conditions. The radar array interface includes only power and network connections for straightforward wiring. Target position and feature information are displayed through user-friendly terminal software that is simple to operate and learn.
Technical Specifications
| Item |
Specification |
| Working System |
Phased array system (Azimuth phase sweep) |
| Working Mode |
Pulse Doppler |
| Working Frequency |
S band (5 operating frequency points) |
| Maximum Detection Range |
≥ 8km (Pedestrians)
≥ 15km (Vehicle/ships) |
| Minimum Detection Range |
≤ 100m |
| Detection Range |
Azimuth coverage: 90° (Multi-planar array splicing to 360°)
Elevation coverage: 18° (Center adjustable range -12° to +12°) |
| Detection Speed |
0.5m/s - 45m/s |
| Measurement Accuracy |
Range accuracy: ≤ 10m
Azimuth accuracy: ≤ 1.0°
Speed accuracy: ≤ 0.5m/s - 45m/s |
| Data Rate |
Searching: ≤ 2s |
| Data Interface |
RJ45, UDP |
| Power Supply |
AC 220V |
| Power Consumption |
≤ 200W |
| Working Environment |
Working temperature: -40°C to +55°C
Storage temperature: -45°C to +65°C
Waterproof grade: IP66 minimum |
| Dimensions |
682mm * 474mm * 232mm |
| Weight |
≤ 30kg |
Detection range conditions: For pedestrians or vehicles (ships) with radial velocity not less than 0.5m/s, false alarm probability is 10⁻⁶, and detection probability is 0.8.
