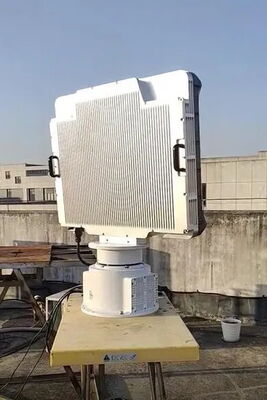

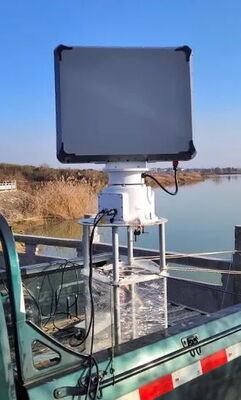

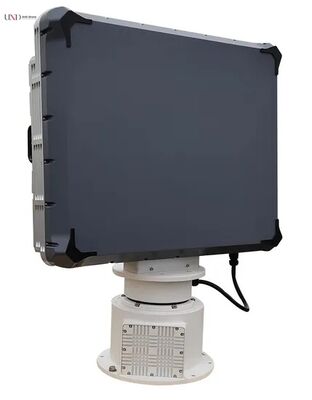

5 km Detection Range S Band Frequency 360° Azimuth Coverage Air Surveillance Phased Array Radar for Counter-UAV

1
MOQ
Please consult a sales engineer
fiyat
5 km Detection Range S Band Frequency 360° Azimuth Coverage Air Surveillance Phased Array Radar for Counter-UAV
Özellikleri Fotoğraf Galerisi Ürün Açıklaması Fiyat talebi
Özellikleri
Teknik Özellikler
Çalışma Frekansı: S bandı (2,9 GHz; 5 çalışma frekansı noktası)
Algılama Aralığı: 5 km (DJI Phantom 3/4 RCS≈0,01m²)
Güç Tüketimi: ≤250W
Güç Kaynağı: 220W
Net ağırlığı: ≤60kg (PTZ ile)
Azimut Kapsamı: 0°~360°
Vurgulamak:

5 km detection range Air Surveillance Radar

,

S band frequency Phased Array Radar

,

360° azimuth coverage Counter-UAV Radar
Temel bilgiler
Menşe yeri: Çin
Marka adı: UND
Model numarası: U 216R-1S5K-3D
Ödeme & teslimat koşulları
Teslim süresi: 5-8 gün
Ödeme koşulları: T/T
Yetenek temini: 100
Ürün Açıklaması
3D S Band Pulse Doppler Technology Security for Ground Based Air Defence Air Surveillance Radar
Air Surveillance Radar - U 216R-1S5K-3D / S band

The U 216R-1S5K-3D is an advanced S-band radar system that employs cutting-edge digital active phased array technology. Through modular, precision engineering and the integrated application of adaptive moving target detection, digital T/R (transmit/receive), and DBF (digital beamforming) with analog-to-digital integration design, this system delivers exceptional detection performance, high precision tracking, and cost-effective operation as an outstanding ground moving target detection radar.

The system provides accurate target tracking information including azimuth, distance, altitude, and speed parameters. It is specifically designed for the detection, warning, and target indication of micro and small civil UAVs in critical security areas such as prisons, exhibition centers, and other sensitive locations.

Key Features
  • High data rate and high positioning accuracy
  • Multi-Input Multi-Output (MIMO) system architecture
  • All-weather operational adaptability
Application Areas
Airports, border areas, and other critical security surveillance zones requiring advanced airspace monitoring capabilities.
Technical Specifications
Parameter Specification
Working system/mode Phased array system (Azimuth phase sweep)
Working frequency S band (2.9GHz; 5 operating frequency points)
Detection range 5 km (DJI Phantom 3/4 RCS≈0.01m²)
Minimum detection range ≤100m
Azimuth coverage 0°~360°
Elevation coverage 0°~40°
Distance accuracy ≤10m
Azimuth accuracy ≤1.0°
Elevation accuracy ≤1.0°
Data rate Searching: ≤2s
Power Consumption ≤250W
Power supply 220w
Net weight ≤60kg (with PTZ)
Interface RJ45, UDP protocol
Dimension 782mm × 695mm × 200mm (Antenna)
365mm × 365mm × 312mm (Turntable)
Working temperature & Storage Temperature -40°C ~ +55°C / -40°C ~ +65°C
Working Environment Rain-proof; Dust Prevention; Sand-prevention; Moisture-proof, Mould-proof and Salt-proof
