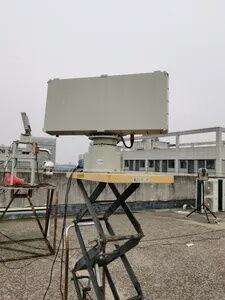

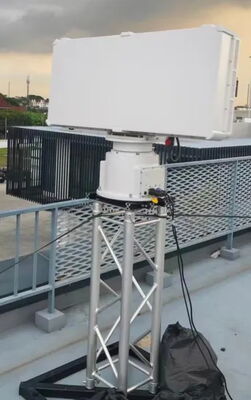

S-Band 10km Anti-UAV Stable-Performance Air Surveillance Radar
Product Overview
The U216S-10K is an advanced S-band air surveillance radar system designed for ground moving target detection. Utilizing digital active phased array technology with modular, fine design, this radar integrates adaptive moving target detection, digital T/R (transmit/receive), and DBF (digital beamforming) capabilities. It delivers stable detection performance, high precision, and cost-effectiveness for critical monitoring applications, providing real-time, accurate, and continuous target information to monitoring systems.
Technical Highlights
- All-digital active phased array technology system with receiving and transmitting DBF technology
- Digital T/R technology and highly integrated RF and digital integration design
- Adaptive moving target detection and Doppler clutter suppression
- Stabilization tracking technology for ground moving targets
Key Features
Advanced Technology
The U216S-10K radar employs a phased array system with one-dimensional phase sweep, enabling electrical scanning in azimuth for flexible, fast beam pointing without inertia. It supports non-uniform detection with different schemes for various regions to optimize overall detection performance. The software radar design based on full digital phased array system offers strong expandability and online upgrade capability.
Excellent Ground Moving Target Detection
Featuring a Doppler filtering system designed on the phased array platform, this radar completely eliminates clutter spectrum diffusion caused by antenna scanning modulation. It can be configured online for extended periods and provides superior clutter suppression, making it ideal for detecting and tracking low-speed moving targets in strong clutter environments.
High Reliability
Without mechanical rotating equipment, the U216S-10K eliminates failures related to mechanical and electrical components, ensuring higher operational reliability. The phased array radar operates with multiple parallel channels, allowing continued normal operation even if some channels fail, significantly improving mission reliability.
Simple Installation & Operation
The modular design features a simple structure for easy installation, with no rotating joints, making it adaptable to various installation conditions. The radar array interface is streamlined with only a power interface and network interface for simple wiring. Target position and feature information are output and displayed through user-friendly terminal software that is easy to learn and operate.
Technical Specifications
| Item |
Specification |
| Working System |
Phased array system (Azimuth phase sweep) |
| Working Mode |
Pulse Doppler |
| Working Frequency |
S band (5 operating frequency points) |
| Maximum Detection Range |
4-6 km (Drones RCS≈0.01 square meter) |
| Minimum Detection Range |
≤ 100m |
| Detection Range |
Azimuth coverage: 360°
Elevation coverage: 40° |
| Detection Speed |
0.5m/s ~ 45m/s |
| Accuracy of Measurement |
Range accuracy: ≤ 10m
Azimuth accuracy: ≤ 1.0°
Speed accuracy: ≤ 0.5m/s - 45m/s |
| Data Rate |
Searching: ≤ 2s |
| Data Interface |
RJ45, UDP |
| Power Supply |
AC 220V |
| Power Consumption |
≤ 200W |
| Working Environment |
Working temperature: -40ºC ~ +55ºC
Storage temperature: -45ºC ~ +65ºC
Waterproof grade: IP66 at least |
| Dimension |
782mm * 549mm * 198mm (Antenna) |
| Weight |
≤ 60kg (Including PTZ) |
Detection range condition: For pedestrians or vehicles (ships) with radial velocity not less than 0.5m/s, false alarm probability is 10⁻⁶, and detection probability is 0.8.
