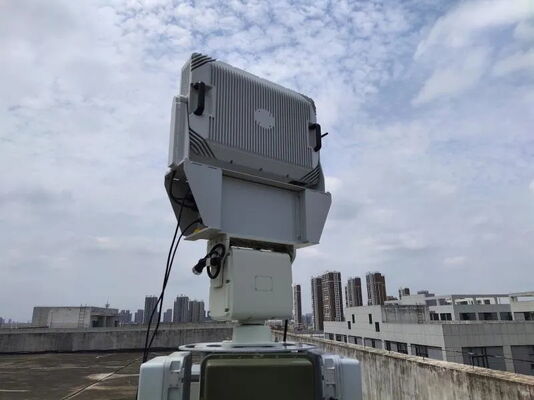

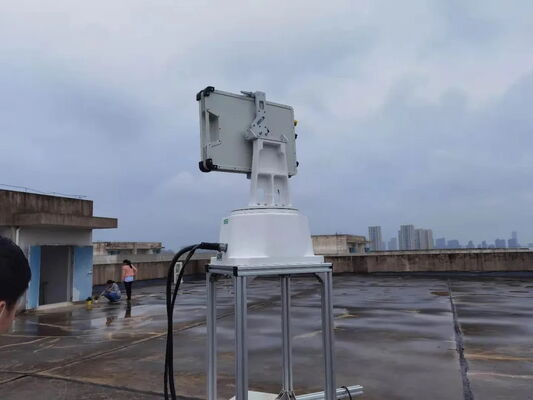

3D C-Band Air Surveillance Radar with 1.2km Detection Range and All-Weather Adaptability for Defense Scenarios

1
MOQ
Please consult a sales engineer
Price
3D C-Band Air Surveillance Radar with 1.2km Detection Range and All-Weather Adaptability for Defense Scenarios
Features Gallery Product Description Chat Now
Features
Specifications
Working Frequency: C Band (5.5-5.8GHz)
Minimum Detection Range: ≤100m
Target Detection Speed: 0.2m/s - 25m/s
Net Weight: ≤10kg
Power Supply: AC220V/40W
Working Temperature: -40°C To +60°C
Highlight:

1.2km detection range air surveillance radar

,

C band frequency counter-UAV radar

,

All-weather adaptability perimeter security radar
Basic Infomation
Place of Origin: China
Brand Name: UND
Model Number: U-223R- 1C1K-5D
Payment & Shipping Terms
Delivery Time: 5-8 days
Payment Terms: T/T
Supply Ability: 100
Product Description
3D C-Band Air Surveillance Radar with 1 Km Range
Advanced Solid-State Design for Defence Applications
Digital Beam Forming (DBF) technology enables direct control of amplitude and phase for each radiation unit, providing flexible beam generation and pointing capabilities.
Primary Applications
Designed for critical security surveillance in airports, border areas, and other high-security locations requiring reliable airspace monitoring.
Key Features
  • High data rate with superior positioning accuracy
  • Multi-Input Multi-Output (MIMO) system architecture
  • All-weather operational capability
  • Digital Beam Forming (DBF) technology
Technical Specifications
Working Mode Phased array + Pulse Doppler
Working Frequency C band (5.5-5.8GHz)
Detection Range 1.2km (DJI Phantom 3/4, Mavic, RCS≈0.01 square meter)
Minimum Detection Range ≤100m
Azimuth Coverage Single panel: 90° (Dual panel: 180°, 3-panel: 270°, 4-panel: 360°)
Elevation Coverage 40°
Distance Accuracy ≤10m
Azimuth Accuracy ≤1.0°
Target Detection Speed 0.2m/s - 25m/s
Speed Precision ≤0.2m/s
Data Rate ≤1.5s
Peak Output 4W/Panel
Net Weight ≤10kg
Power Supply AC220V/40W
Interface Ethernet (UDP protocol)
Dimensions 445mm * 300mm * 400mm
Working Temperature -40°C to +60°C
Working Environment Rain-proof; Dust Prevention; Sand-prevention; Moisture-proof, Mould-proof and Salt-proof
