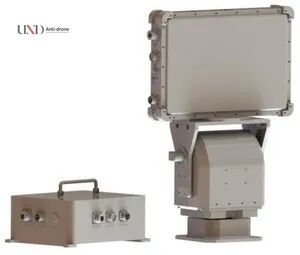

C Band Frequency Drone Detection Radar with 1.2km Detection Range and All-Weather Adaptability for Air Surveillance

1
MOQ
Please consult a sales engineer
Price
C Band Frequency Drone Detection Radar with 1.2km Detection Range and All-Weather Adaptability for Air Surveillance
Features Gallery Product Description Chat Now
Features
Specifications
Working Frequency: C Band (5.5-5.8GHz)
Detection Range: 1.2km (DJI Phantom 3/4, "Mavic", RCS≈0.01 Square Meter)
Distance Accuracy: ≤10m
Target Detection Speed: 0.2m/s - 25m/s
Power: AC220V/40W
Working Temperature: -40°C To +60°C
Highlight:

C Band Frequency Drone Detection Radar

,

1.2km Detection Range Air Surveillance Radar

,

All-Weather Adaptability Perimeter Security Radar
Basic Infomation
Place of Origin: China
Brand Name: UND
Model Number: U-223R- 1C1K-5D
Payment & Shipping Terms
Delivery Time: 5-8 days
Payment Terms: T/T
Supply Ability: 100
Product Description
Drone Detection Systems Air Surveillance Radar
Air Surveillance Radar with C Band technology utilizes Digital Beamforming (DBF) to directly control the amplitude and phase of each radiation unit through digital means, enabling flexible generation of beams and beam pointing of various shapes.
Applications
Airports, border areas, and other critical security surveillance zones
Key Features
High data rate and high positioning accuracy
Multi-Input Multi-Output (MIMO) system
All-weather adaptability
Technical Specifications
Item Specification
Working mode Phased array + Pulse Doppler
Working frequency C band (5.5-5.8GHz)
Detection range 1.2km (DJI Phantom 3/4, "Mavic", RCS≈0.01 square meter)
Minimum detection range ≤100m
Azimuth coverage Single panel: 90° (Dual panel: 180°, 3-panel: 270°, 4-panel: 360°)
Elevation coverage 40°
Distance accuracy ≤10m
Azimuth Accuracy ≤1.0°
Target detection speed 0.2m/s - 25m/s
Speed precision ≤0.2m/s
Data rate ≤1.5s
Peak Output 4W/Panel
Net weight ≤10kg
Power AC220V/40W
Interface Ethernet (UDP protocol)
Dimension 445mm × 300mm × 400mm
Working temperature -40°C to +60°C
Working Environment Rain-proof; Dust Prevention; Sand-prevention; Moisture-proof, Mould-proof and Salt-proof
