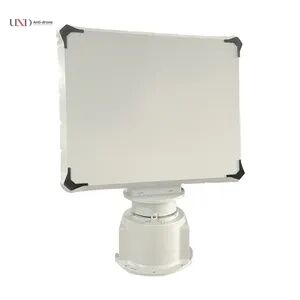

C Band Frequency Air Surveillance Radar with 1.2km Detection Range and All-Weather Adaptability for Perimeter Security

1
MOQ
Please consult a sales engineer
Price
C Band Frequency Air Surveillance Radar with 1.2km Detection Range and All-Weather Adaptability for Perimeter Security
Features Gallery Product Description Chat Now
Features
Specifications
Working Frequency: C Band (5.5-5.8GHz)
Detection Range: 1.2km (DJI Phantom 3/4, Mavic, RCS≈0.01 Square Meter)
Target Detection Speed: 0.2m/s - 25m/s
Peak Output: 4W/Panel
Power Supply: AC220V/40W
Dimensions: 445mm × 300mm × 400mm
Highlight:

C Band Frequency Air Surveillance Radar

,

1.2km Detection Range Perimeter Security Radar

,

All-Weather Adaptability Counter-UAV Radar
Basic Infomation
Place of Origin: China
Brand Name: UND
Model Number: U-223R- 1C1K-5D
Payment & Shipping Terms
Delivery Time: 5-8 days
Payment Terms: T/T
Supply Ability: 100
Product Description
Air Surveillance Radar for Integrated Camera Solutions
Advanced C-band radar system utilizing Digital Beamforming (DBF) technology for precise air surveillance applications.
Technology Overview
Our Air Surveillance Radar employs DBF technology, enabling direct control of amplitude and phase for each radiation unit through digital means. This allows flexible generation of beams and beam pointing in various shapes for optimal performance.
Primary Applications
Ideal for security surveillance in airports, border areas, and other critical locations requiring reliable airspace monitoring.
Key Features
  • High data rate with exceptional positioning accuracy
  • Multi-Input Multi-Output (MIMO) system architecture
  • All-weather operational capability
Technical Specifications
Parameter Specification
Working Mode Phased array + Pulse Doppler
Working Frequency C band (5.5-5.8GHz)
Detection Range 1.2km (DJI Phantom 3/4, Mavic, RCS≈0.01 square meter)
Minimum Detection Range ≤100m
Azimuth Coverage Single panel: 90° (Dual panel: 180°, 3-panel: 270°, 4-panel: 360°)
Elevation Coverage 40°
Distance Accuracy ≤10m
Azimuth Accuracy ≤1.0°
Target Detection Speed 0.2m/s - 25m/s
Speed Precision ≤0.2m/s
Data Rate ≤1.5s
Peak Output 4W/Panel
Net Weight ≤10kg
Power Supply AC220V/40W
Interface Ethernet (UDP protocol)
Dimensions 445mm * 300mm * 400mm
Working Temperature -40°C to +60°C
Working Environment Rain-proof; Dust Prevention; Sand-prevention; Moisture-proof, Mould-proof and Salt-proof
